ERICO 3000 ERITECH SYSTEM User Manual
Page 40
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
38
www.erico.com
27. Place the Vital Warning Label in a
prominent position at the base of the mast,
or beside the downconductor at eye level,
if the installation is in an area where it is
possible for persons to gain access.
These termination procedures
should be strictly adhered to
since an incorrect termination
will result in failure of the
system.
26. Connect the 6 mm
2
(8 AWG) structure
bonding cable as detailed in the ERITECH
®
SYSTEM 3000 Installation, Operation
and Maintenance Manual. After bonding
the cable, ensure that the connection is
waterproof and resealed if required.
Note: It may be necessary to
pull back any slack of ERITECH
®
ERICORE downconductor through
the FRP support mast to achieve a
properly seated fit for the ERITECH
®
DYNASPHERE.
The ERITECH DYNASPHERE must
not be skewed and the base of the
terminal must be fully inserted into
the top of the mast.

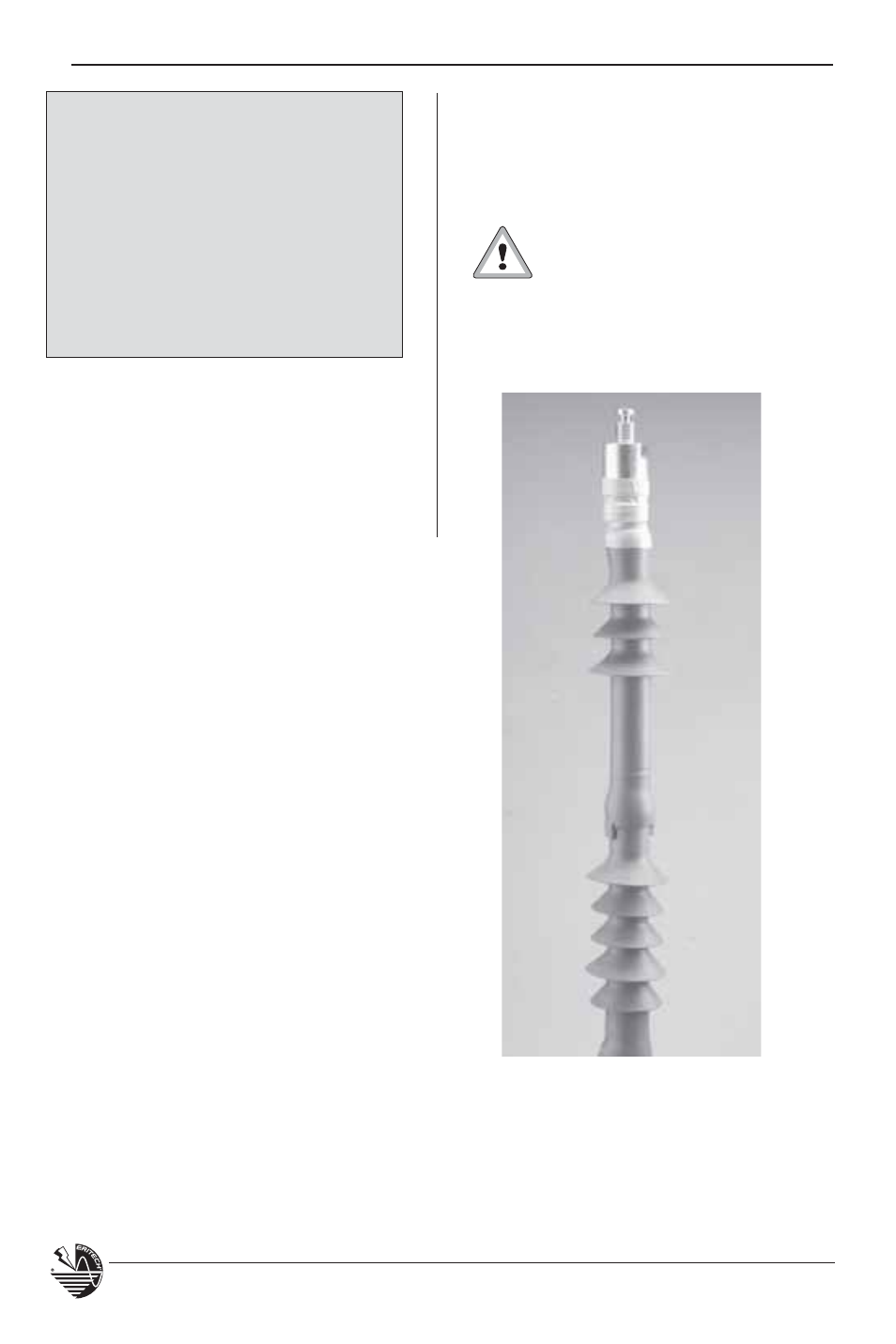

Photo 12: Completed termination.
