INSTALLATION, OPERATION AND MAINTENANCE MANUAL

36

www.erico.com

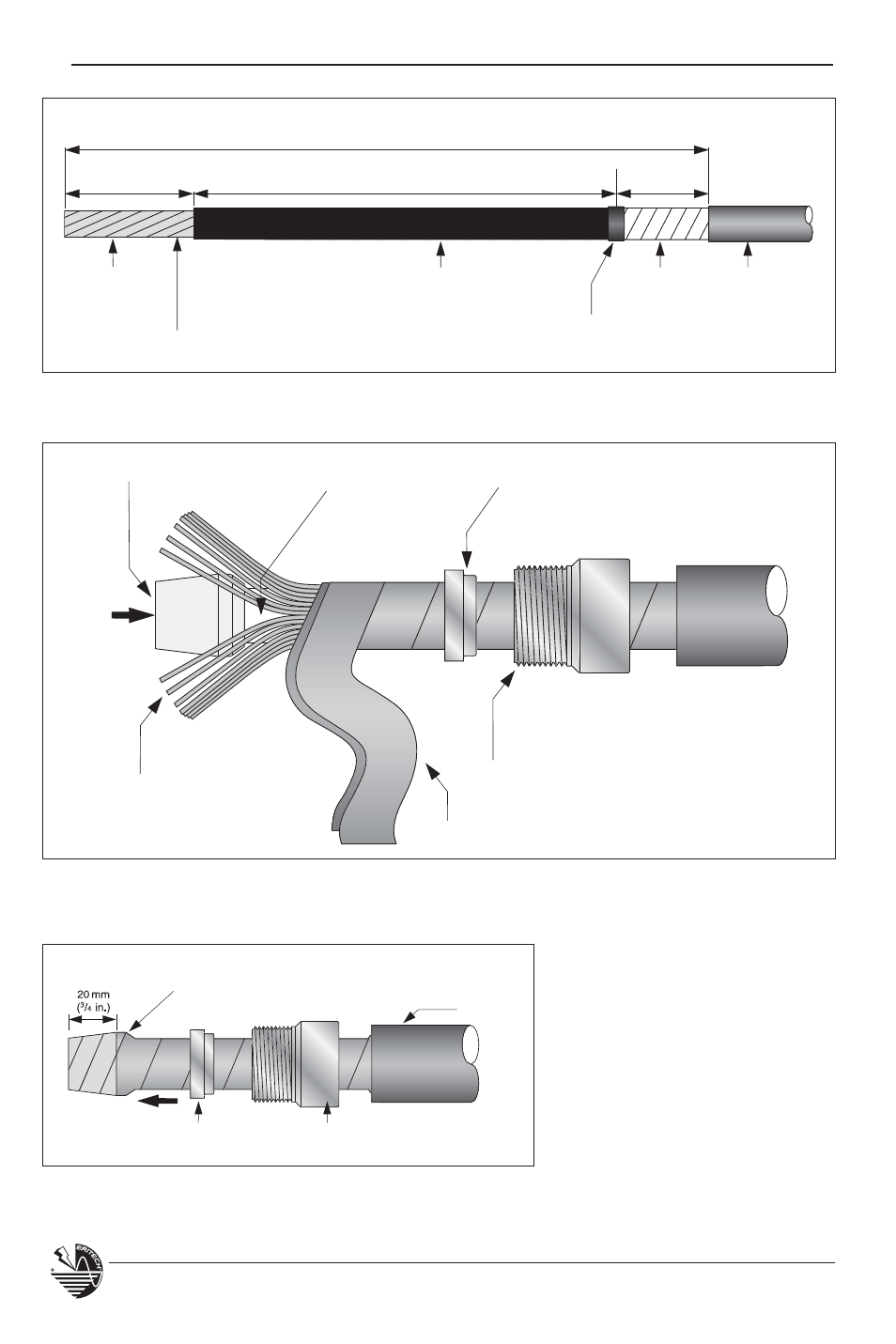

Figure 21: Cutting dimensions

600 mm (23

5

/

8

in.)

380 mm (15 in.)

20 mm
(

6

/

8

in.)

70 mm (2

3

/

4

in.)

Copper

Conductor

Copper Strands and

Double Tape Layer

Triple Layered

Insulation Layer

PVC Tape to Stop Copper Tape from Unravelling

Copper
Tape

Black Outer
Sheath

Compression Cone

Compression Ring

Compression Nut

Filler Core (Black)

Copper Strands Splayed
Out to Allow Fitting of
Compression Cone

Double Copper Tape Layer

Figure 22: Positioning the compression coupling.

Wind Back Layers of Copper Tape
Over Copper Strands to the End

Coldshrink

Compression Ring

Compression Nut

Figure 23: The termination coupling is fitted to the downconductor
ready for the main coupling body to be fitted.
