ERICO 3000 ERITECH SYSTEM User Manual
Page 37
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
35
www.erico.com
21. Installing the termination (continued).

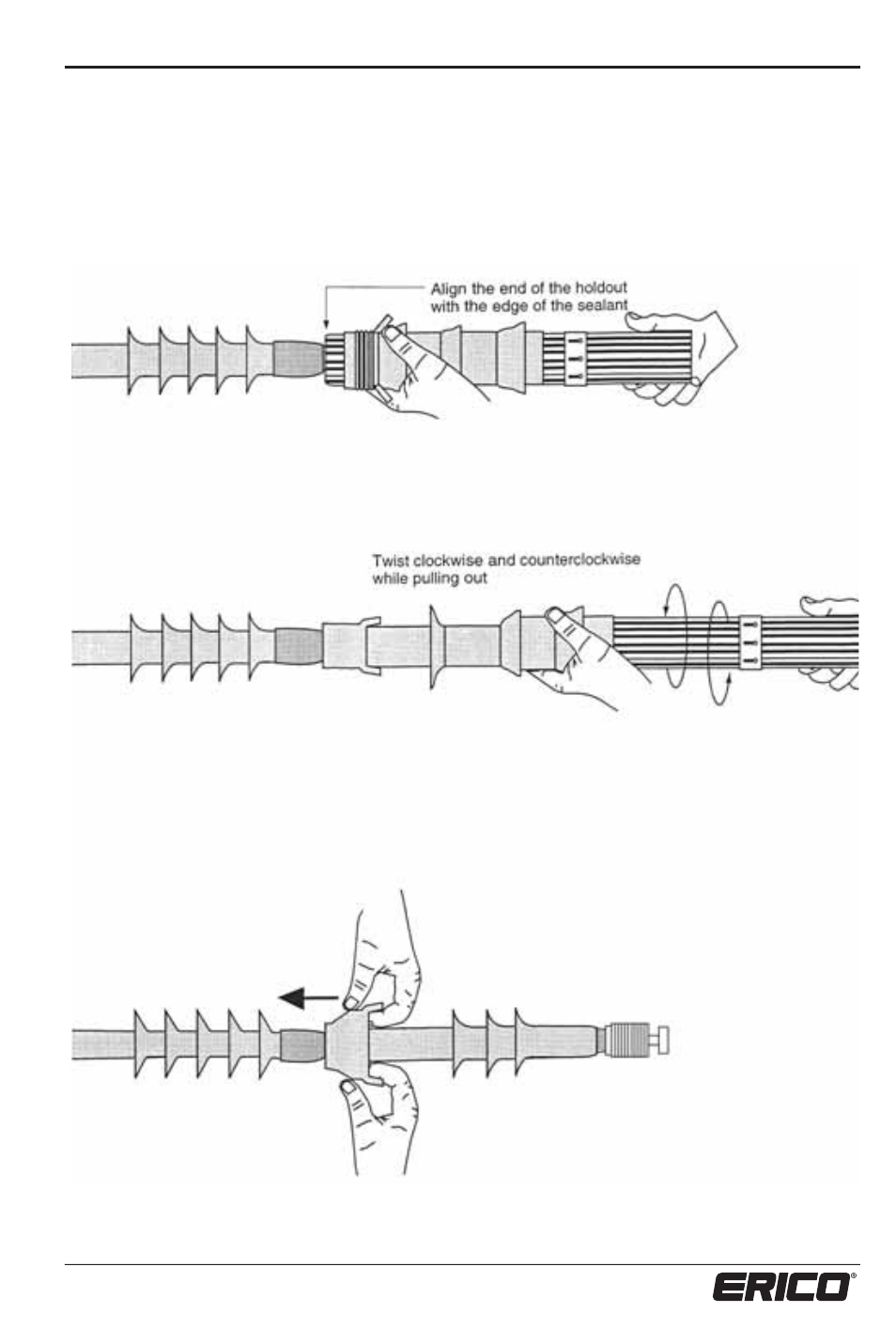

Slide the three-shedded termination over the cable until it meets the leading edge of the
sealant strip as shown. Twist the termination and slowly push it to the end of the holdout.
Using the pull tabs, pull the flip-back portion away from the main termination, at the same time
working the first two fingers of each hand between the flip-back and main termination.
Pull the stretched out flip-back over the sealant.
Slide the termination completely off the holdout using a twisting and pulling motion as shown.
