Terminating the eritech, Ericore upper end, Instructions for eritech – ERICO 3000 ERITECH SYSTEM User Manual
Page 30: Ericore downconductor
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
28
www.erico.com
Terminating the ERITECH
®
ERICORE Upper End
Instructions for ERITECH
®
ERICORE Downconductor
Tools required for terminating upper end of ERITECH
®
ERICORE
1. Sharp Knife
2. Tape Measure
3. 2 x 375 mm (15 in.) Shifting Spanner / Wrench
4. PVC Electrical Tape
5. Roll Spring - supplied with termination kit
6. Insulation Cutting Tool - supplied with termination kit
1 x Coldshrink Tube (red)
1 x Vital Warning Label
1 x Mastic Tape
1 x ERITECH ERICORE Coupling
1 x Structure Bonding Braid
1 x Instructions
(4 pieces when dismantled)
1 x Insulation Cutting Tool
1 x Crimp Lug
1 x Silicone Tape - 1.3 m (93 in.)
1 x Semi Conductive Tape
1 x Roll Clip
The Upper Termination Kit consists of:

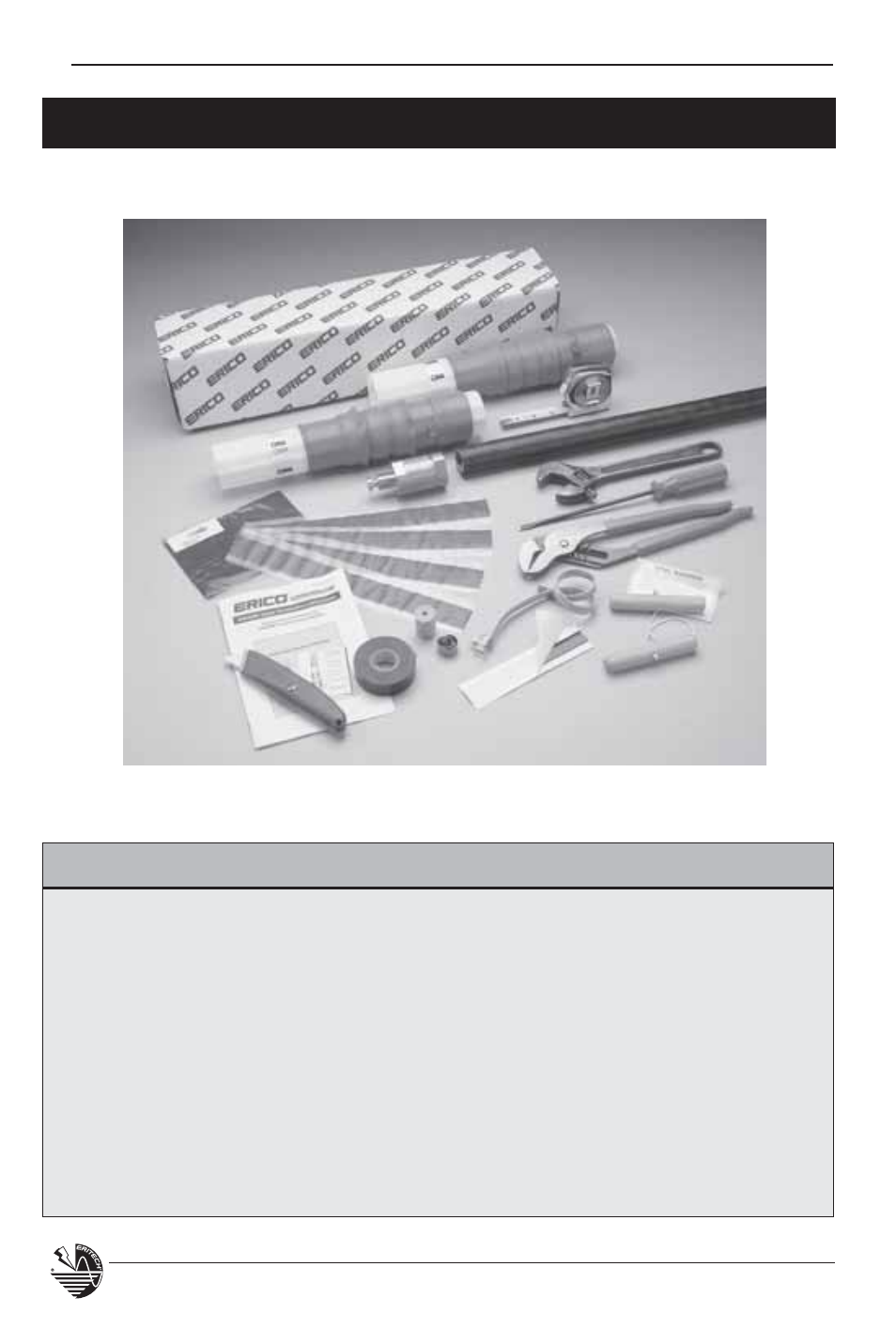

Photo 2: Contents of upper termination kit and the tools required to complete the termination procedure.
