Using the pull tabs, pull the flip-back
portion away from the main termination, at
the same time working the first two fingers
of each hand between the flip-back and
main termination. Pull the stretched out
flip-back over the cable jacket and sealant.
Make sure the termination length is in
accordance with the dimensions shown.
Having positioned the termination, now
wrap one layer tape sealant (red) over the
end of the termination and 6 mm (
1 ⁄
4
in)
onto the cable insulation as shown.

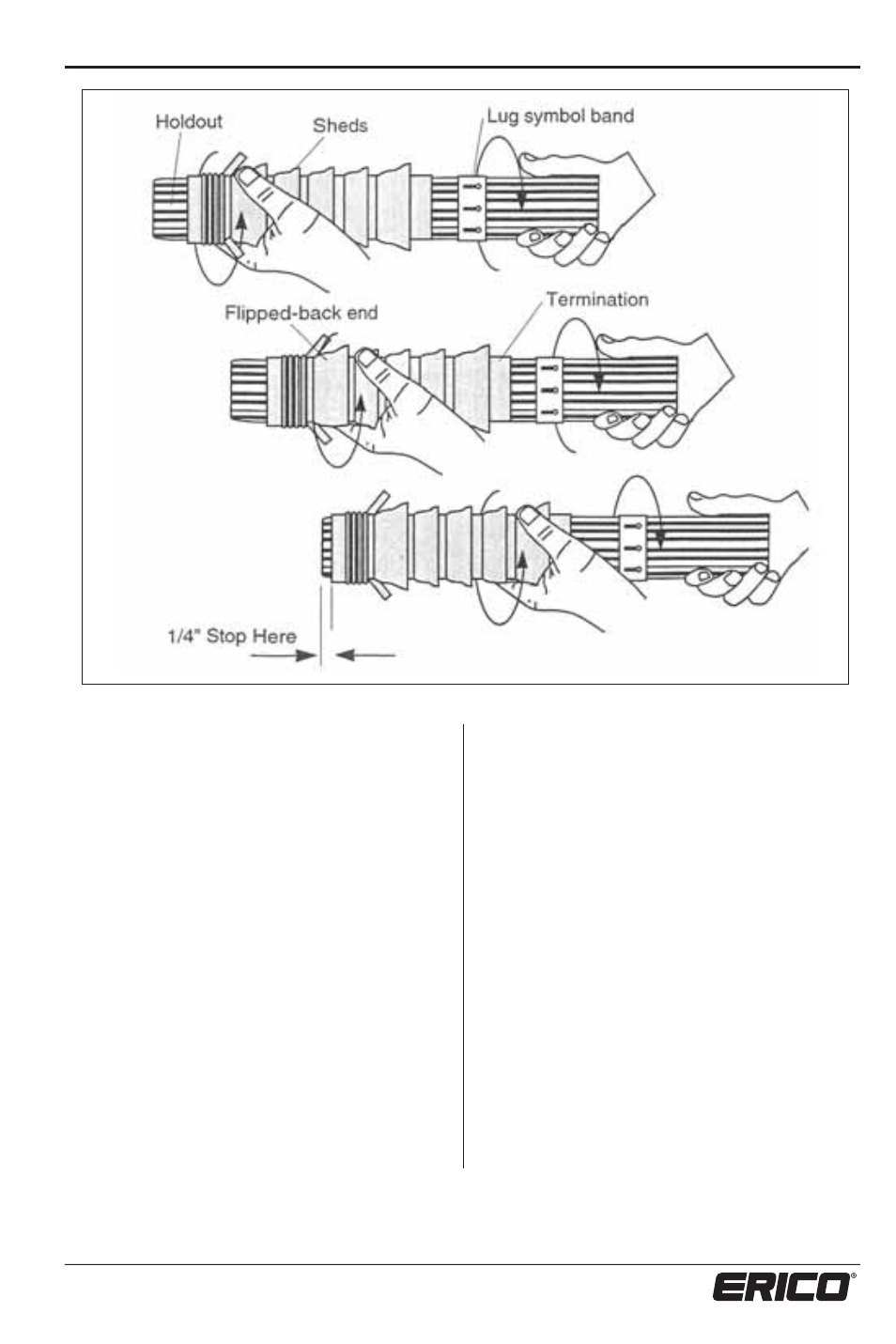

20. Installing the termination.
Position the holdout over the cable until
it meets the jacket cutback. Twist the
termination and slowly push it to the end
of the holdout.
Slide the termination off the holdout with
a twisting motion, holding the termination
that is on the holdout in one hand and
pulling the holdout with the other.
Note: Do NOT stretch the termination.
Do NOT hold the termination that is
partially installed and attempt to pull the
remaining termination off the holdout,
as this will stretch the termination and
generate an improperly installed termination
if not repositioned.
