Lightning event counter (lec) – ERICO 3000 ERITECH SYSTEM User Manual
Page 50
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
48
www.erico.com
When mounting the LEC IV, ensure that:
t
It is mounted in a secure area that is
not prone to contact with moving
objects, theft or vandalism.
t
It is not mounted in an area that is
prone to flooding.
t
The display can be easily viewed if
the LEC IV is mounted vertically and is
encased in a separate enclosure.
The LEC IV can be mounted at any point on
the downconductor or at the injection point
of the grounding system.
Refer to the instructions supplied with the
LEC IV when installing the unit.
Lightning Event Counter (LEC)
LEC IV shown mounted
in an enclosure
Clear window
Counter
Protective enclosure
System 3

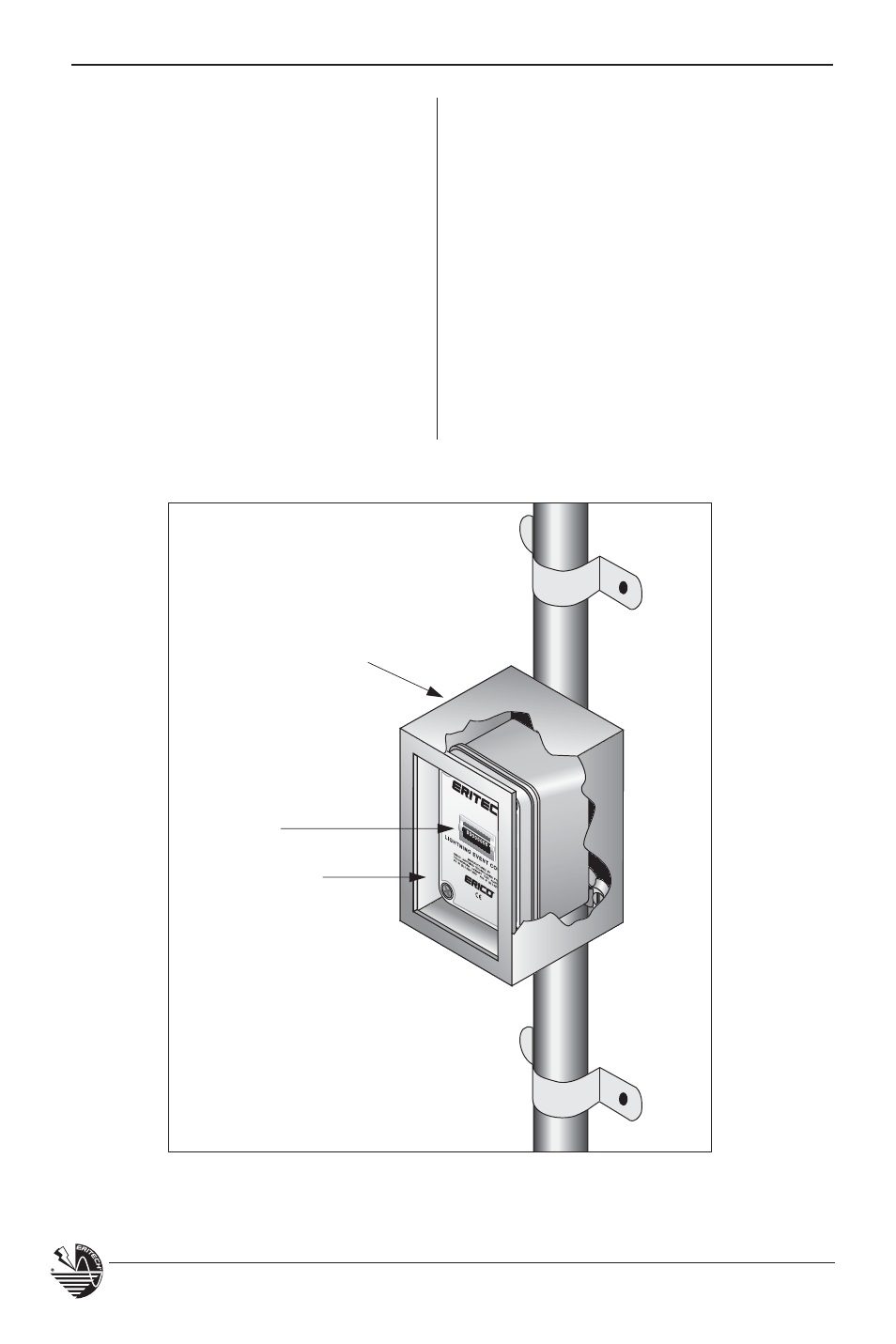

Figure 32: LEC IV in protective enclosure with clear viewing window, for
easy counter reading.
