ERICO 3000 ERITECH SYSTEM User Manual
Page 24
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
22
www.erico.com
Structural Steel Work
To upper termination
kit bonding braid or
mast base
CADWELD
®
, bolted, or
other suitable electrically
bonded method

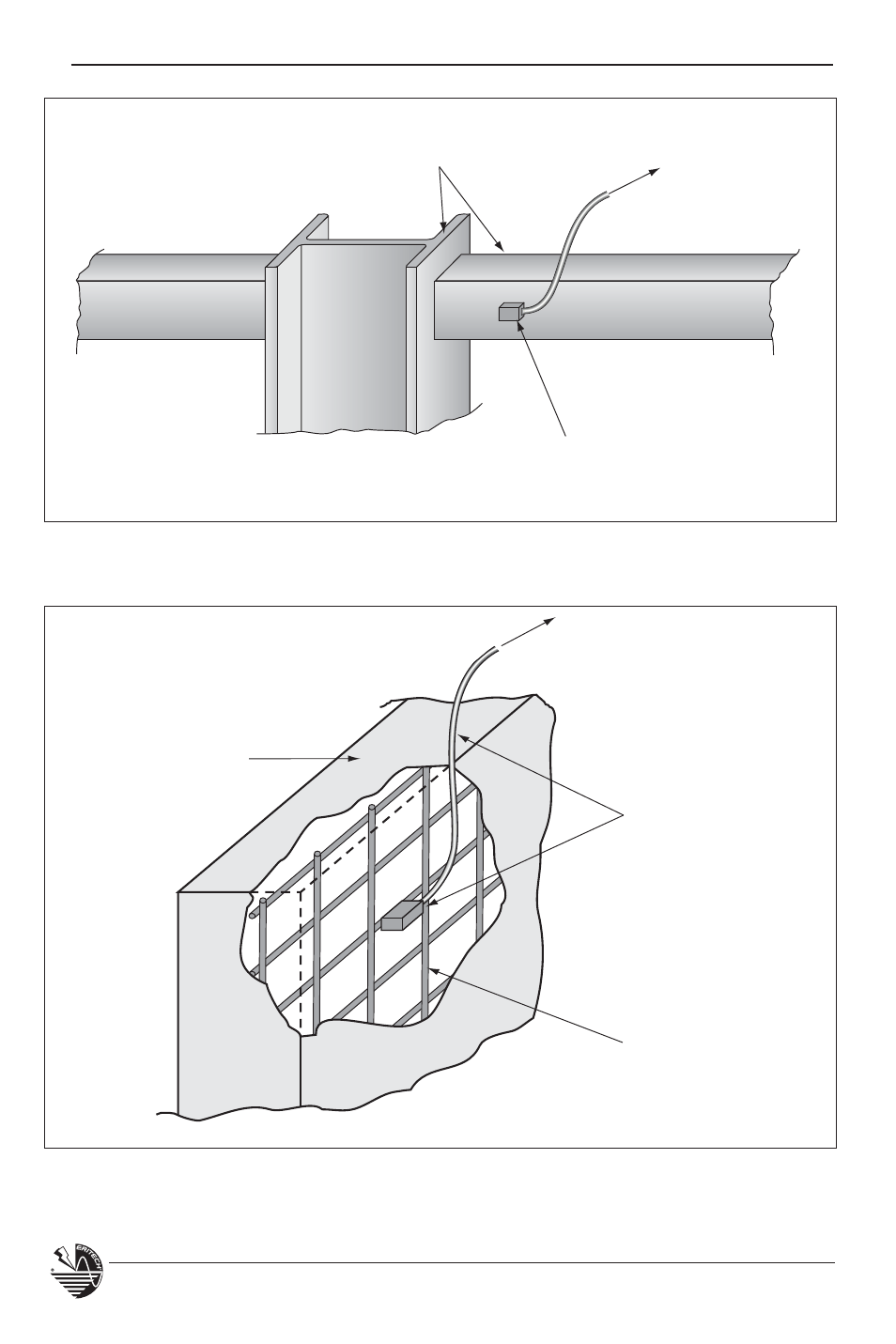

Figure 15: Connection of bonding cable to structural steel work.
Structure bonding cable
CADWELD, bolted, or
other suitable electrically
bonding method
To upper termination kit
bonding braid or mast base
Reinforcing Steel
Concrete Panel
Figure 16: Connection of bonding cable to concrete reinforcing.
