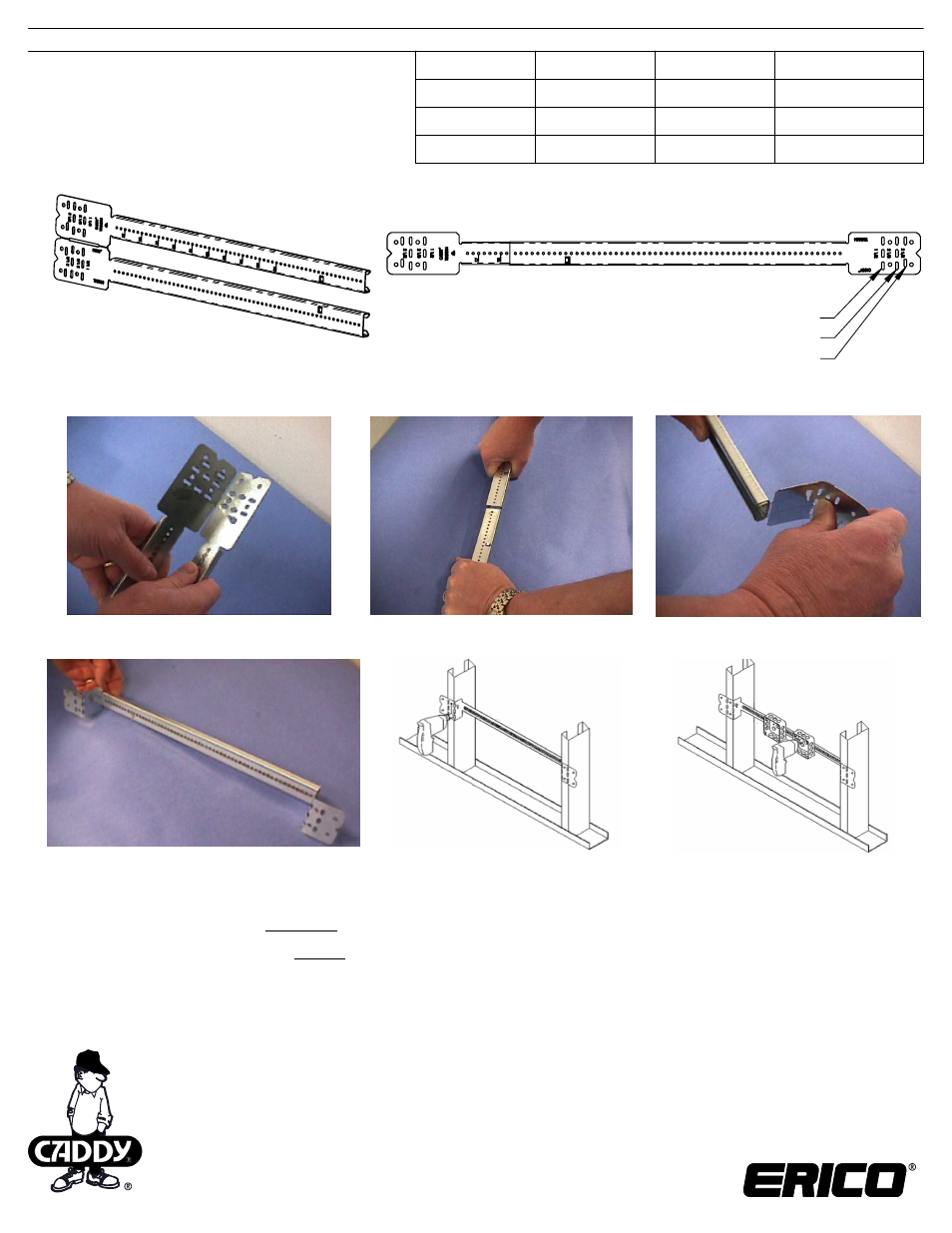

ERICO TSGB Series Screw Gun Bracket User Manual
ERICO Accessories for electrical
Bend for box depth 1-1/2
2-1/8
2-1/2
TSGB24 Shown
TSGB16, TSGB24 and TSGB1624
(TSGB24 Shown)
*Part with keyholes
Separate
Assemble
Adjust to box depth
Bracket ready to attach to wall studs.
Use screw gun to assemble to stud.
Only one mounting screw required
at each end of bracket.
Attach electrical boxes.
WARNING:
ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials. Instruction sheets
1.
are available at www.erico.com and from your ERICO customer service representative.
ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds
2.
specified load ratings.
All instructions must be completely followed to ensure proper and safe installation and performance.
3.
Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product
4.
malfunction, property damage, serious bodily injury and death.
Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
5.
All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to
6.
be used for any other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise
noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated
by a qualified engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
Part no.
Description
Stud Spacing
Box Depth
TSGB16*
Adjustable
11" To 18"
1-1/2" Or 2-1/8"
TSGB24
Adjustable
17" To 26"
1-1/2", 2-1/8" And 2-1/2
TSGB1624
Adjustable
16" To 24"
1-1/2", 2-1/8" And 2-1/2
