INSTALLATION, OPERATION AND MAINTENANCE MANUAL
20
www.erico.com
Structure bonding
cable connected
to structural steel
4.6 m (15 ft.)
FRP Mast

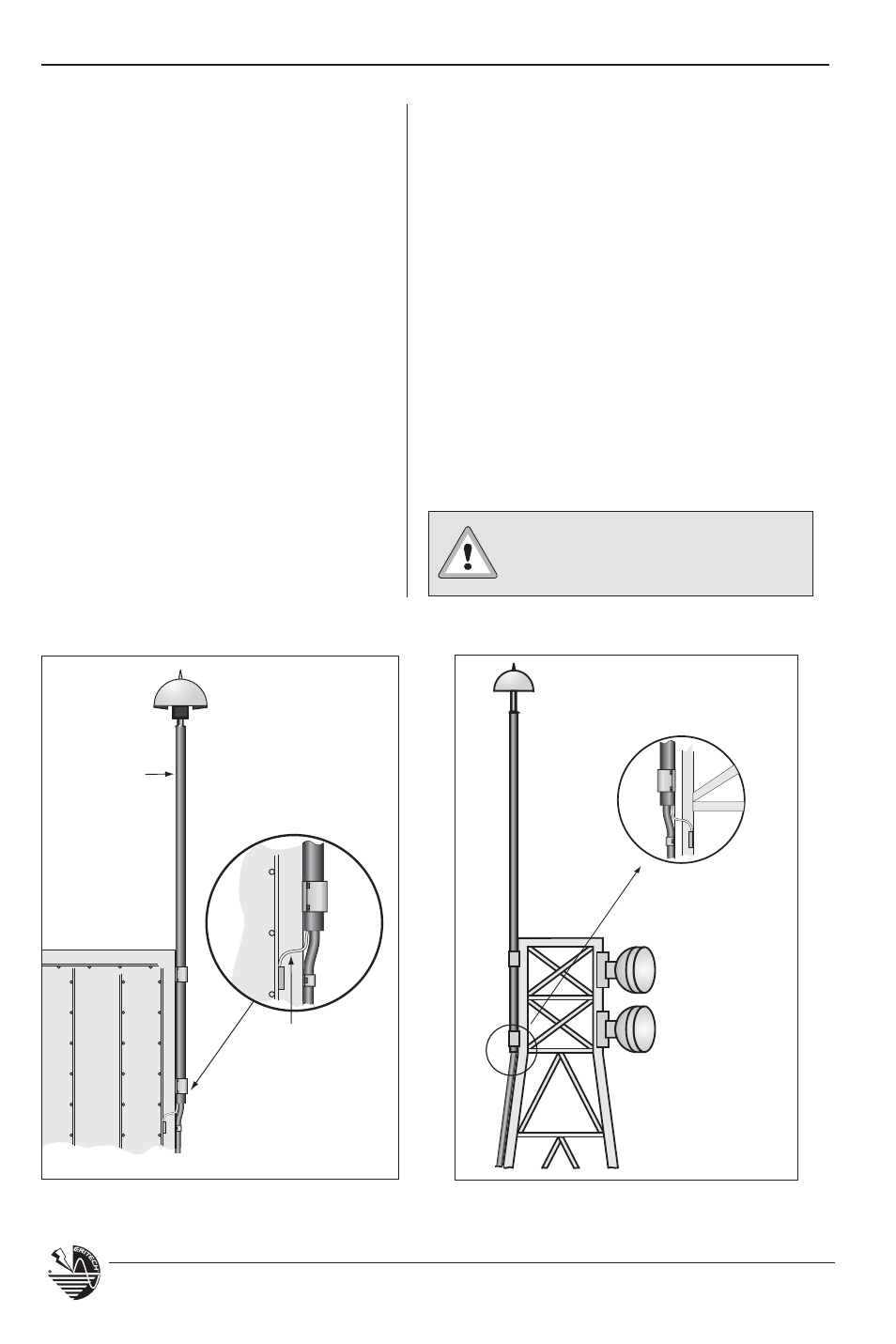

Figure 13(a): Cantilevered FRP section on building. Figure 13(b): Cantilevered FRP section on Radio Tower.
Labelling
Vital Warning Labels must be located at
eye level:
t
Where there is the possibility of
personnel being in close proximity to
the
cable.
t
Where the downconductor terminates
to the grounding system.
t
At the mast base.
There is a VITAL WARNING LABEL
supplied in the front cover of this manual
and also one supplied in each of the
upper and lower termination kits.
If more labels are required, contact your
nearest ERICO
® Distributor.
Structure Bonding Braid
To help ensure that the upper end of the
downconductor can be adequately electrically
bonded to the structure, a Structure Bonding
Braid has been provided at the base of the upper
termination of the downconductor. This braid is
a 75 mm (3 in.) tail which exits from under the
termination coldshrink and is supplied with a
connector to allow connection to a 6 mm
2
(8 AWG) copper cable (as mentioned in the
following text). This must be connected to a
conductive structural point to relieve the electrical
stresses on the downconductor and masonry
surfaces.
The use of the Structure
Bonding Braid is NOT optional,
and MUST always be used.
