Installation, operation and maintenance manual 10 – ERICO 3000 ERITECH SYSTEM User Manual
Page 12
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
10
www.erico.com
Conductive Saddles
Lightning Event
Counter - LEC IV
ERITECH
®
ERICORE
Copper Ground Tape
Typical lengths, minimum of 5 m (17 ft). (Lengths are dependant
upon soil resistivity reading) @ 600 mm (24 in.) depth or greater if
required, to ensure that it is below the frost line.
Ground rods
clamped or
welded to
copper ground
tape using
CADWELD
®
Ground Pit
Each trench is treated
with GEM or ERITECH
Enhancing Compounds
Lower Termination
(Bound in Waterproofing
Mastic)
ERITECH
ground rods
clamped or welded to
copper ground tape,
using CADWELD.
Lightning Event
Counter - LEC IV
ERITECH ERICORE
Lower Termination
(Bound in
Waterproofing
Tape)
Copper ground tape grid
5000 x 5000 mm (17 x 17 ft.)
@ 600 mm (24 in.) depth or
greater if required to ensure
that it is below the frost line.
Conductive
Saddles
Ground Pit

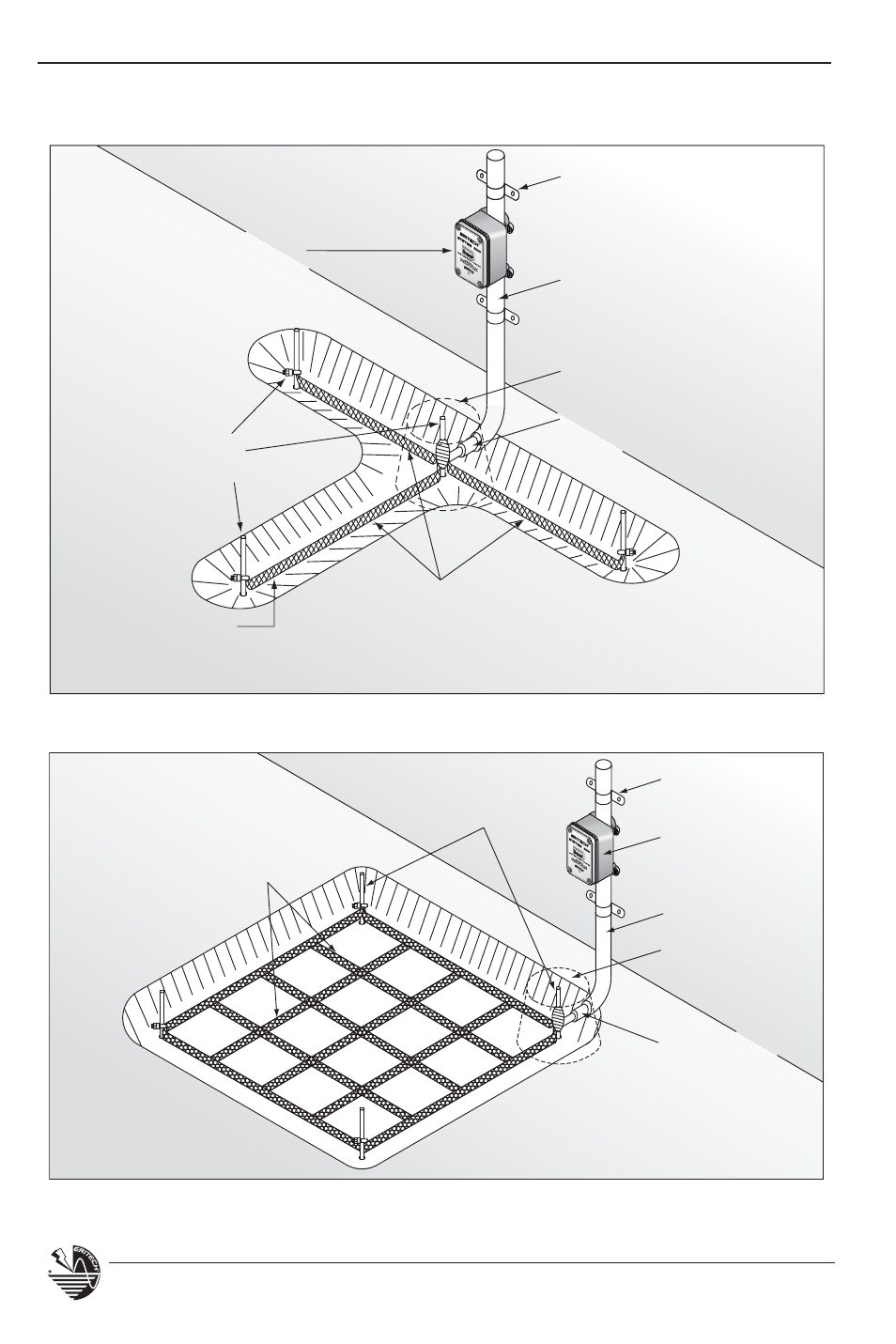

Figure 2: Radial Ground.
Figure 3: Grid Ground.
