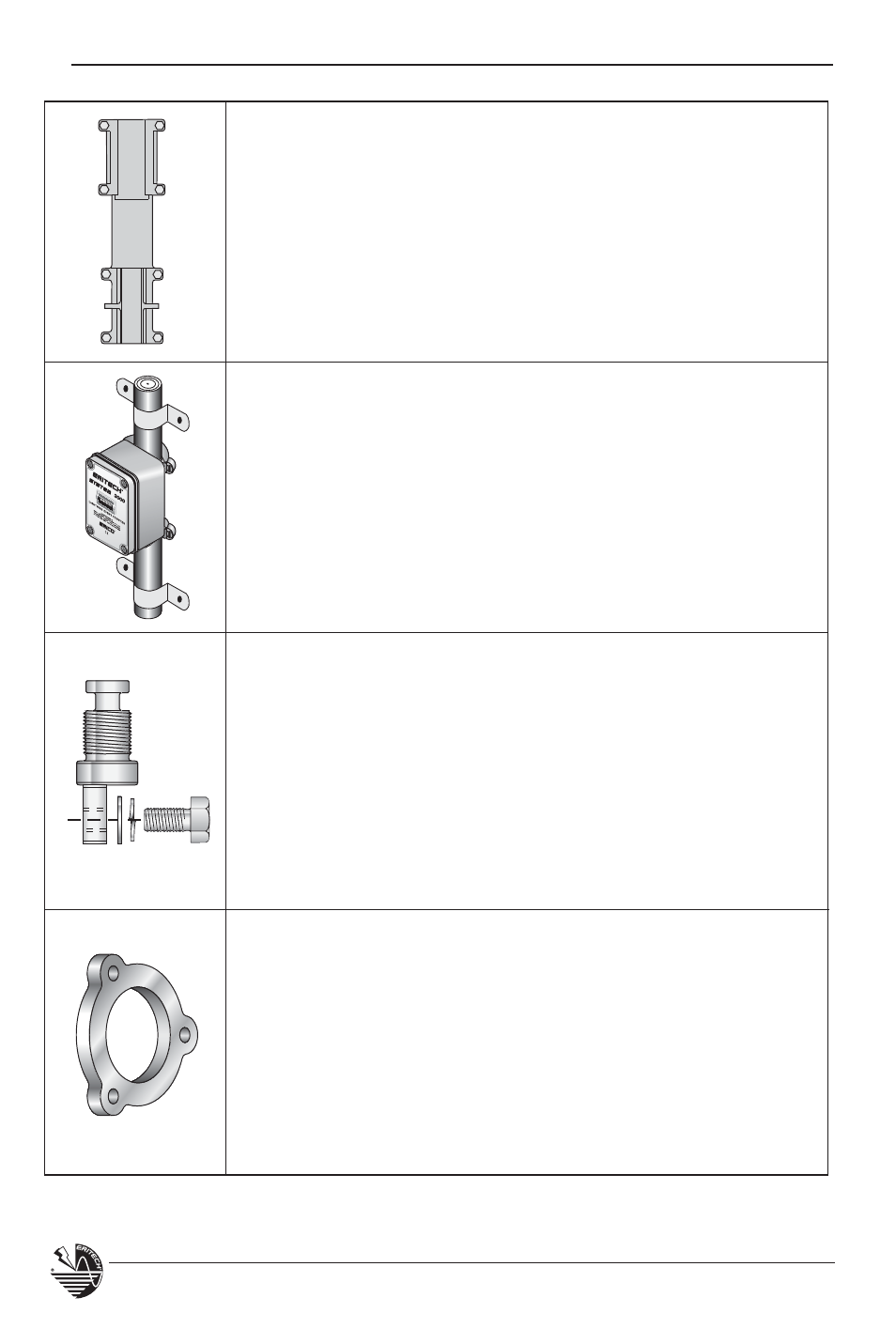

Inline Coupling
Purpose designed coupling to clamp FRP to aluminum lower mast,
providing 3 guy anchoring points and downconductor exit point.
Max. Clamping diameter:
70 mm (2
7
/
8
in.)
Max. Clamping torque:
55 kg/cm (45 in.lb)
Weight:
2.4 kg (5
1
/
4
lbs.)
Height added to mast:
200 mm (7
7
/
8
in.)
Guy Ring
Purpose designed guy ring, providing 3 guy anchoring points from the
neck of the ERITECH DYNASPHERE.
Height:
105.25 mm (4
2
/
16
in.)
Inside Diameter:
60 mm (2
6
/
16
in.)
Outside Diameter: 91 mm (3
1
/
2
in.)
Material:
Cast Aluminum
Guy Hole Diameter:
10 mm (
6
/
16
in.)
Terminal Lug Coupling
The terminal lug coupling allows for connection of a conventional
downconductor such as 25 mm x 3 mm copper tape / bar to the
ERITECH
®
DYNASPHERE. See Upper Termination Instructions for fixing
of coupling to ERITECH DYNASPHERE.
Material: Brass
Alloy
384D
Length:
68.75 mm (2
11
/
16
in.)
Weight:
181 grams (6.38 oz.)
Diameter:
25.4 mm (1 in.)
Lightning Event Counter (LEC IV)
Purpose designed lightning event counter.
I.P. Rating:
IP67
Operating Temp. Range:
40˚C to +50˚C (-40˚F to 122˚F)
Dimensions:
110 mm(h) x 80 mm(w) x 90 mm(d)
4
11
/
32
(h) x 3
5
/
32
(w) x 2
7
/
8
(d)
Weight:
0.4 kg
