Choose the position according to audio unit
the supply cables too. If the cables lead inside
a structure or wall, use the holes on the audio
bottom. unit

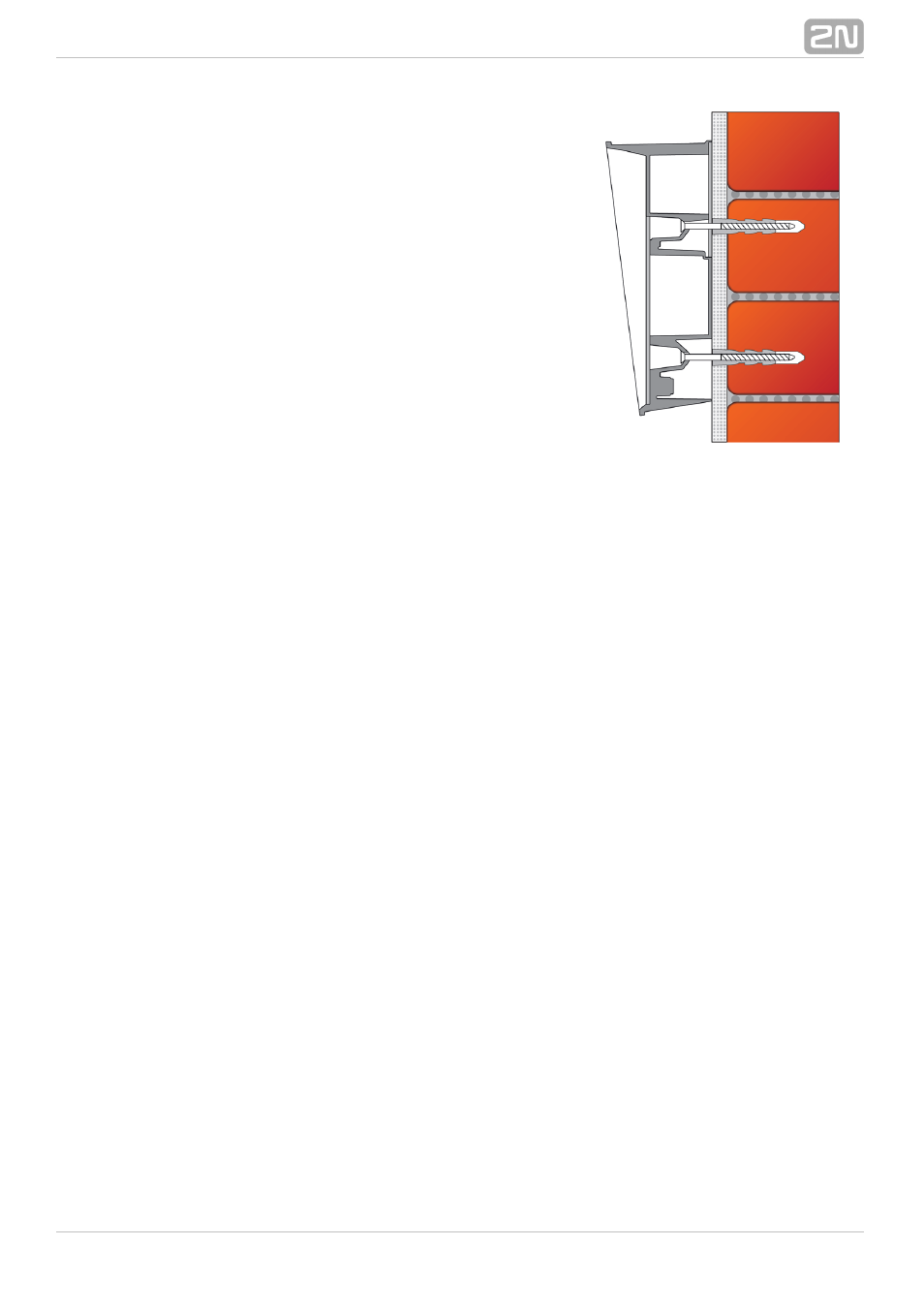

Drill plug holes of the depth of 70 mm (as
shown in the figure below) into concrete and
similar walls. Push or hammer the supplied
plugs into the holes. If the plugs are too
loose, use a mounting glue. Use fitting
elements of your own for steel structures –
metric screws and nuts, for example.
Remove the front panel from the
. audio unit
Select the holes for the cables. Choose and
mount the enclosed bushing depending on the
count of cables: two-hole, one-hole or both
types of bushings. Fill the other holes with the
packing included.
Fit the
to the wall or structure and audio unit
lead in the cables leaving a small reserve
inside. Insert the packings into the unused
bushings and tighten the bushing nuts.
Do not complete the mounting procedure until
you have connected the
electrically audio unit
– refer to . If the cables Electric Installation
lead on the surface, use the bushings included
in the delivery.
Flush Mounting – Classic Bricks
Follow the instructions for the flush mounting kit if used. Follow the instructions below
if you do not use the flush mounting kit.
