Description of Terminals, Connectors and Jumpers

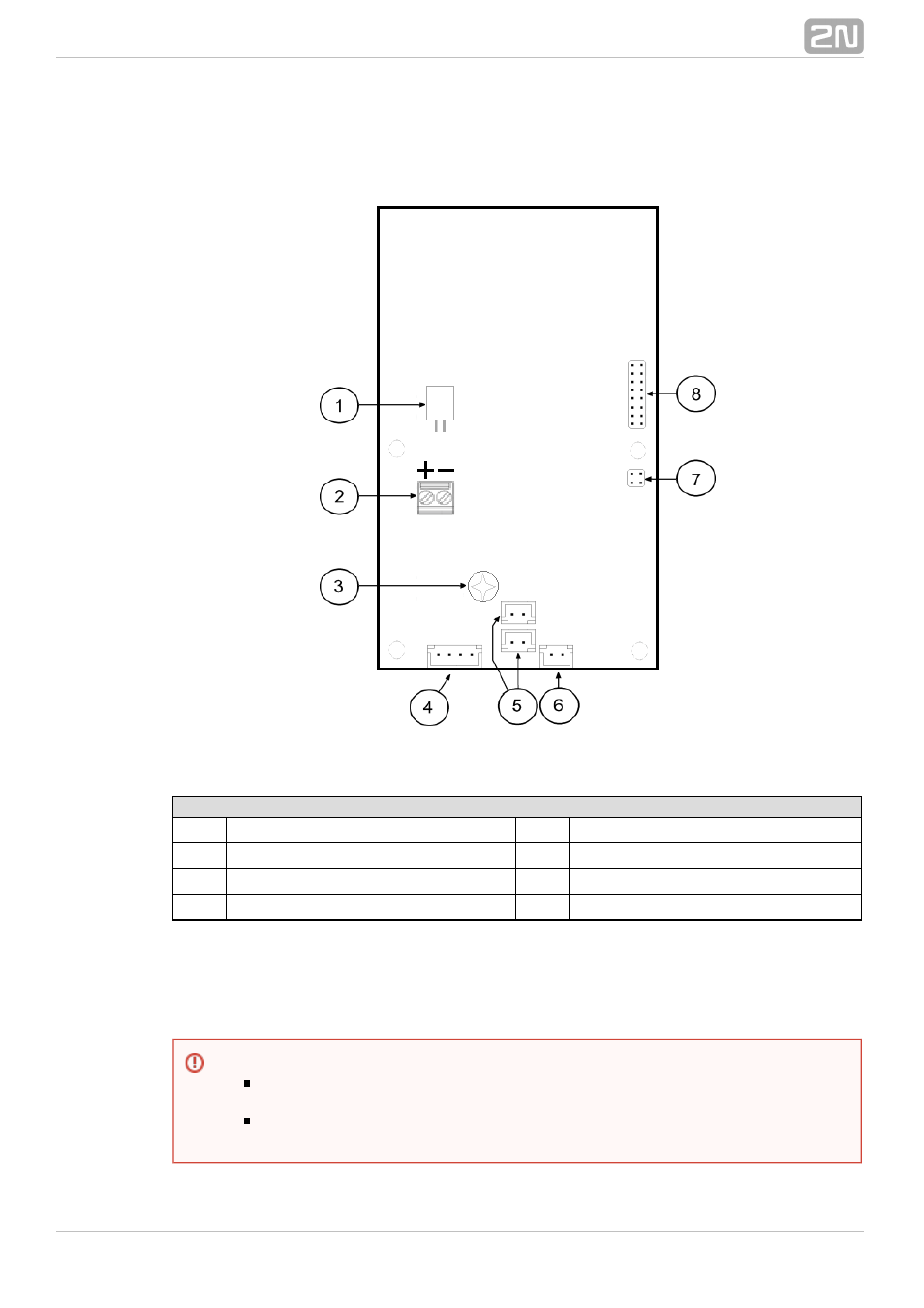

Figure: Terminals, Connectors and Jumpers on Fireman Audio Unit Board
Terminals and Connectors
1 Speaker connector 5 2 microphone connectors
2 Audio unit bus 6 Detent button (knob) connector
3 Volume setting (trimmer) 7 Configuration jumper
4 Button connector (Push to talk) 8 Servicing connector
Bus Connection
Remove the audio unit cover and unplug terminal 2 (audio unit bus). Connect the bus
and replace the terminal keeping polarity.
Warning
Connection to different, e.g. higher-voltage, cables leads to damage or
destruction of the audio unit.
Keep polarity while connecting the audio unit to make the audio unit work
properly.
