Termination Resistance

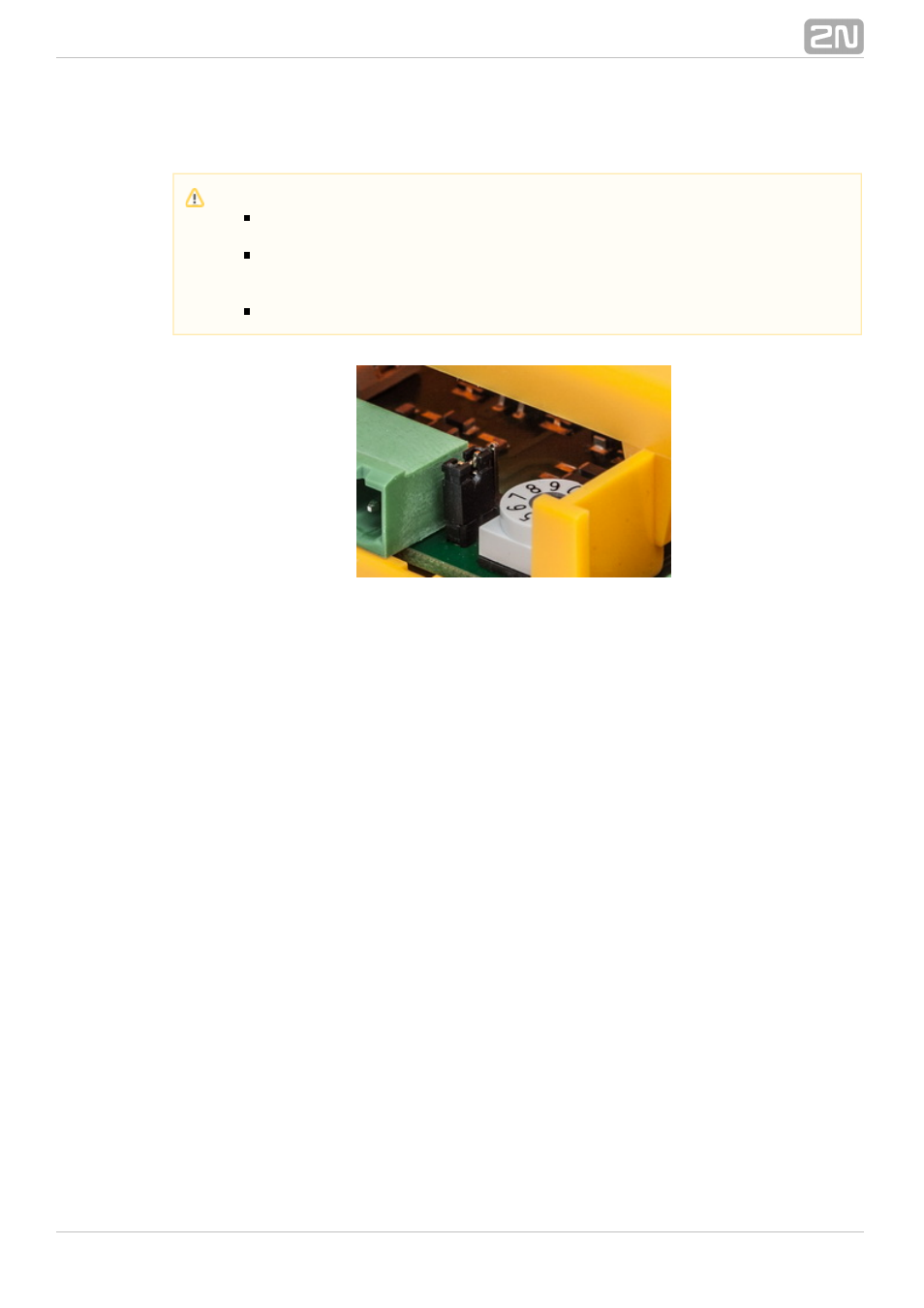

Figure: Termination Resistance Off
Caution
Find the 3-pin termination resistance connecting jumper between the
main bus connector and lift number switch.
Connect the jumper to the first and last device (CU, splitter or I/O
module) on the bus. Refer to the CU describing section for more details on
termination resistance mounting.
By default, the termination resistance jumper is off.
