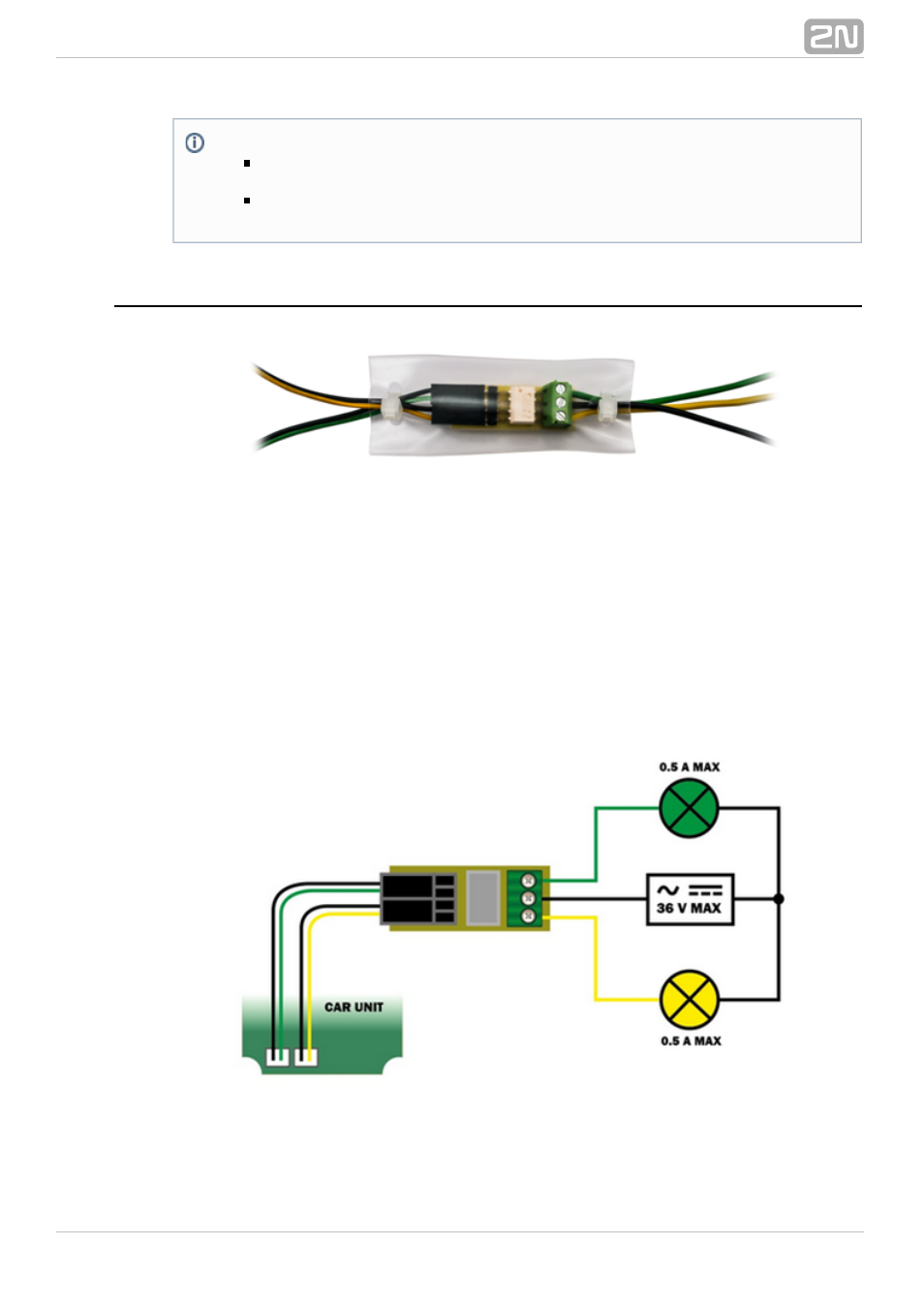

External Pictogram Driver
Description
The device transforms the Car Unit LED outputs into a universal pilot lamp, 2N Lift8
®
whose outputs are capable of driving two lamps rated at the maximum of 36 Volts, 0.5
Amps. The outputs are galvanically isolated from the Car Unit. Since the lamp outputs
are polarity independent, both AC and DC power supplies can be used for powering the
lamps. To protect the Car Unit and Pictogram Driver against damage caused by shorts,
always use the included isolating tube when installing the device!
Wiring diagram
Note
The cables required for this configuration are not part of the standard
delivery but are available upon agreement.
In this configuration, the auxiliary indicators on the PCB are not
illuminated.
