IO Modules

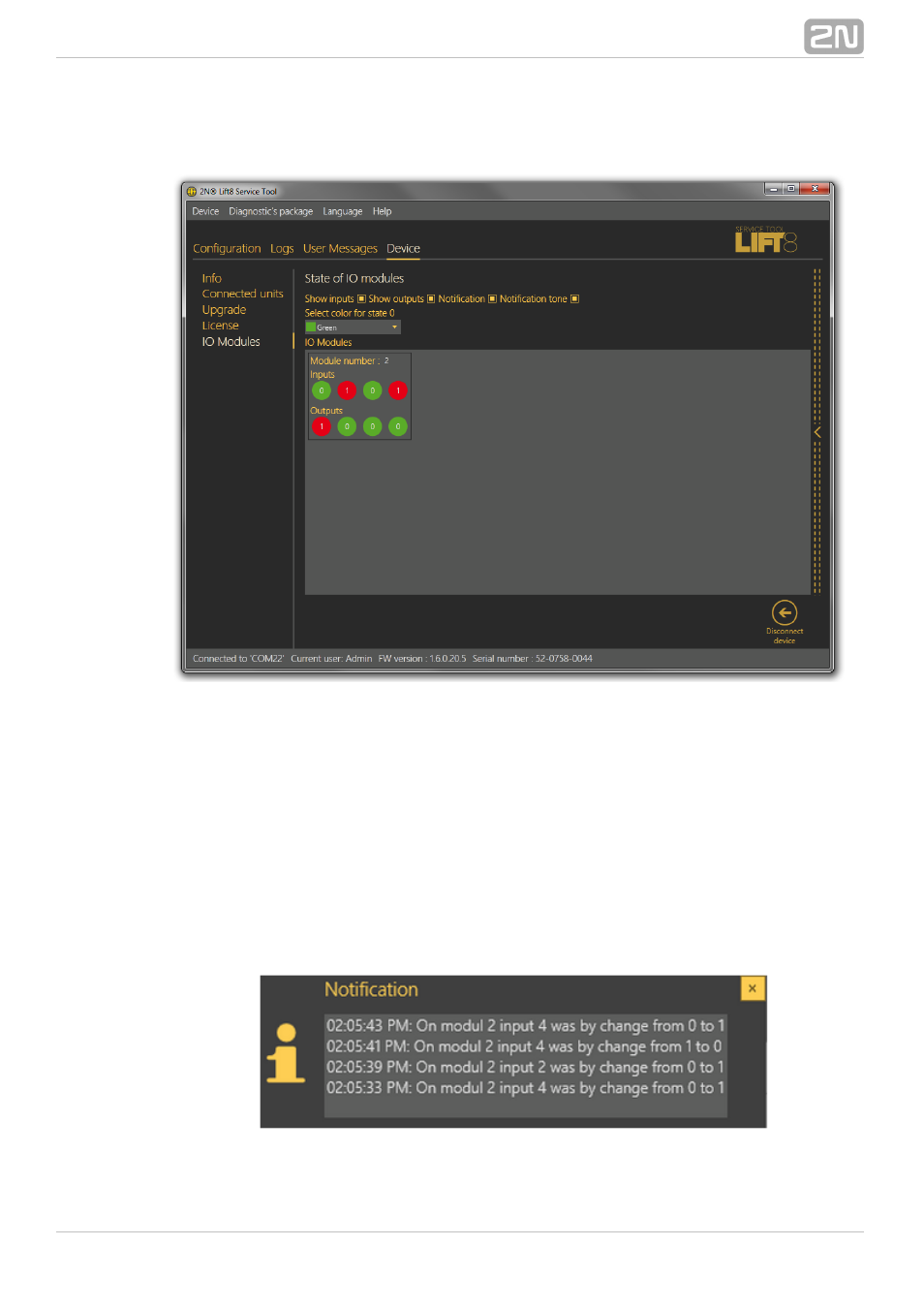

IO Modules Menu Figure:
The menu helps you monitor the states of the IO modules connected. All IO Modules
modules connected to the bus are displayed and numbered according to their DPS HW
address settings. All inputs and outputs are displayed here. By default, all the inputs
and outputs are in position 0 upon power up: logic 0 on the input and relay open. Use
parameters 1200 through 1215 to change the relay position upon system start. A
change of the input signal level or setting the relay into the closed position results in a
signal change from 0 to 1 and the user is notified by a LED colour change and a text
providing information on the module, input and event causing signal value. This
notification is displayed in a separate pop-up window, which does not close
automatically. Press the cross to close the window. Thus, the user is kept informed of
any input state change and cannot miss any change.
Figure: Notification Pop-Up Window
