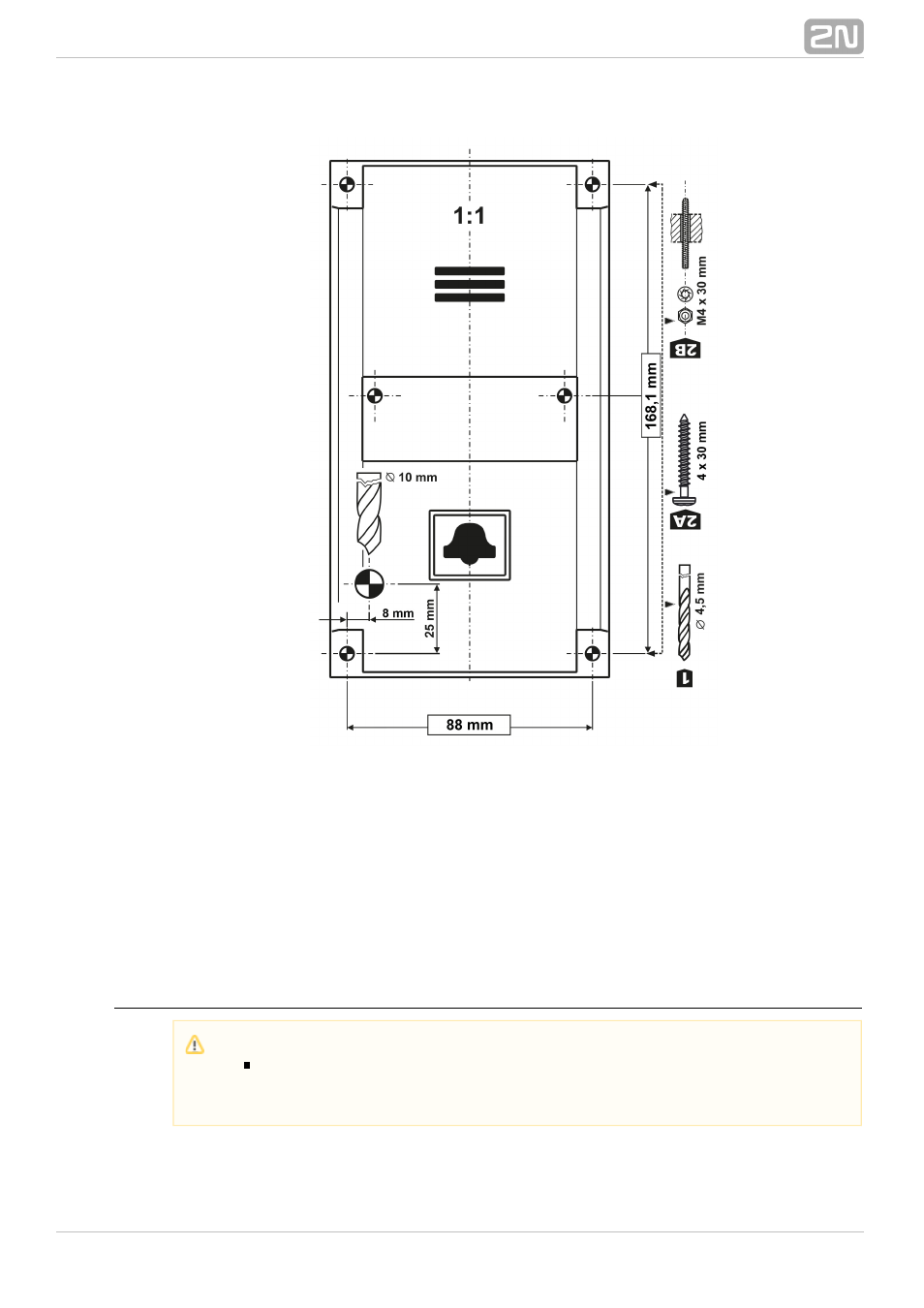

Figure: Mounting Hole Dimensions for Audio Unit – Cabin Compact
Note: Two 2.5 mm holes in the symbol window are intended for installations without
access to the back side of the installation panel. The 2.5 diameter is suitable for
plywood wall mounting (chipboard, laminated plastic, etc.) with the screws included in
the delivery. Drill M4-threaded holes for metal panel mounting from the front side.
Do not complete the mounting procedure until connecting the device electrically (see
below).
Electrical Installation
Caution
Connect the wires before mounting the audio unit on the lift cabin wall.
The connectors are separable – remove them, connect the wires, tighten
the screws and replace the connectors.
