6.4.4

MRW type

The MRW type defines the pattern according to which the measurement is performed. You can select from
seven different MRW types:

• Square

• Square (filled)

• Circle

• Circle (filled)

• X-axis

• Y-axis

• XY axis

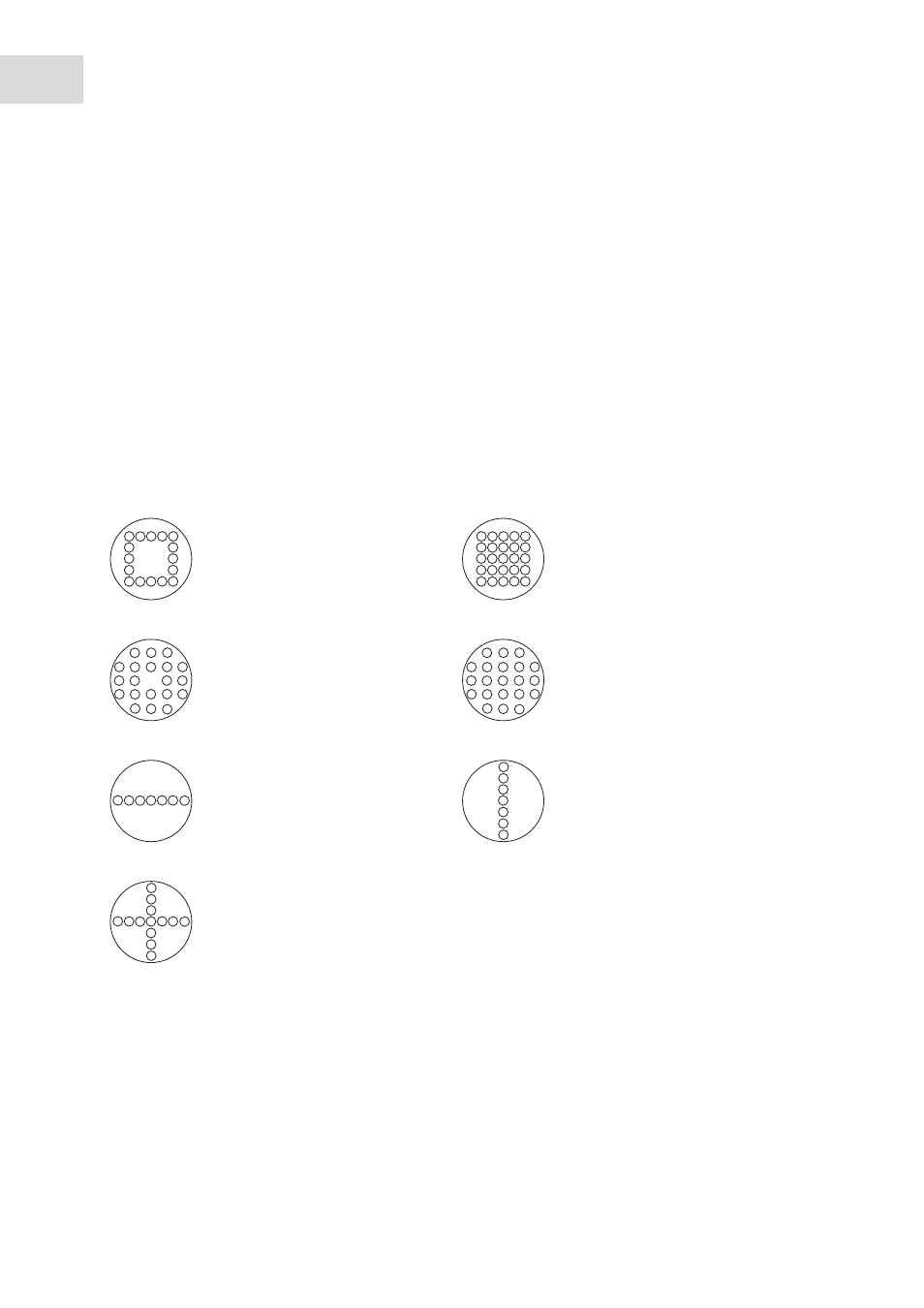

Sample patterns

Abb. 6-1: Square

Fig. 6-1:

Square

Abb. 6-2: Square (filled)

Fig. 6-2:

Square (filled)

Abb. 6-3: Circle

Fig. 6-3:

Circle

Abb. 6-4: Circle (filled)

Fig. 6-4:

Circle (filled)

Abb. 6-5: X-axis

Fig. 6-5:

X-axis

Abb. 6-6: Y-axis

Fig. 6-6:

Y-axis

Abb. 6-7: XY axis

Fig. 6-7:

XY axis
