Inserting the filter slide
Eppendorf ® PlateReader AF2200
English (EN)
31

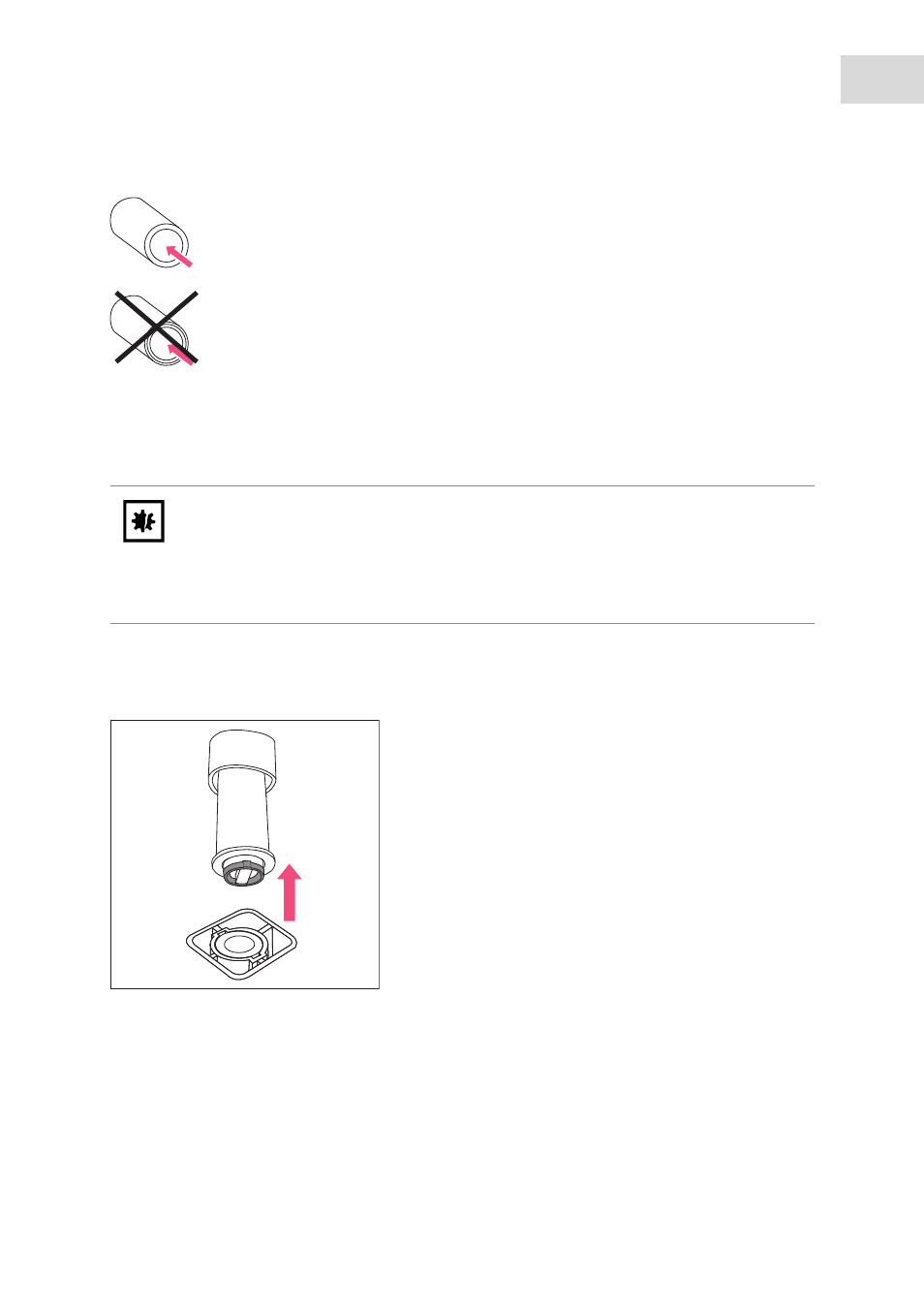

Abb. 5-3: Filter without marking (arrow indicates the direction of the light)
Fig. 5-3: Filter without marking (arrow indicates the direction of the light)
5.3 Installing user-specific filters
5.3.1 Removing filters
2. Insert the filter without an arrow marking into the
filter slide. The offset side of the filter with the
metal lip must point away from the light source.
NOTICE! Material damage due to improper handling
Measuring errors may occur due to improper handling of the optical filter.
 Only grip the optical filter on the edge.
 Do not use scratched or damaged filters.
 The optical filters must be stored in an area that is dust-free and not exposed to light.
Abb. 5-4: Removing the stop ring
Fig. 5-4: Removing the stop ring
1. Align the filter fixing tool on the stop ring
bearing.
2. Rotate the filter fixing tool 90° and pull the stop
ring out of the filter slide.
3. Rotate the filter slide until the filter slides out of
the slot by itself.
