Inserting the filter slide
Eppendorf
® PlateReader AF2200
English (EN)
32
5.3.2 Inserting user-specific filters
5.3.3 Defining filters
The device automatically detects predefined filter slides.
The filter slide must be redefined when a user-specific filter is used for the first time.
1. Select the Filter definitions option in the Settings menu.
The Filter definitions dialog window appears.
The stop rings may only be used 5 times.

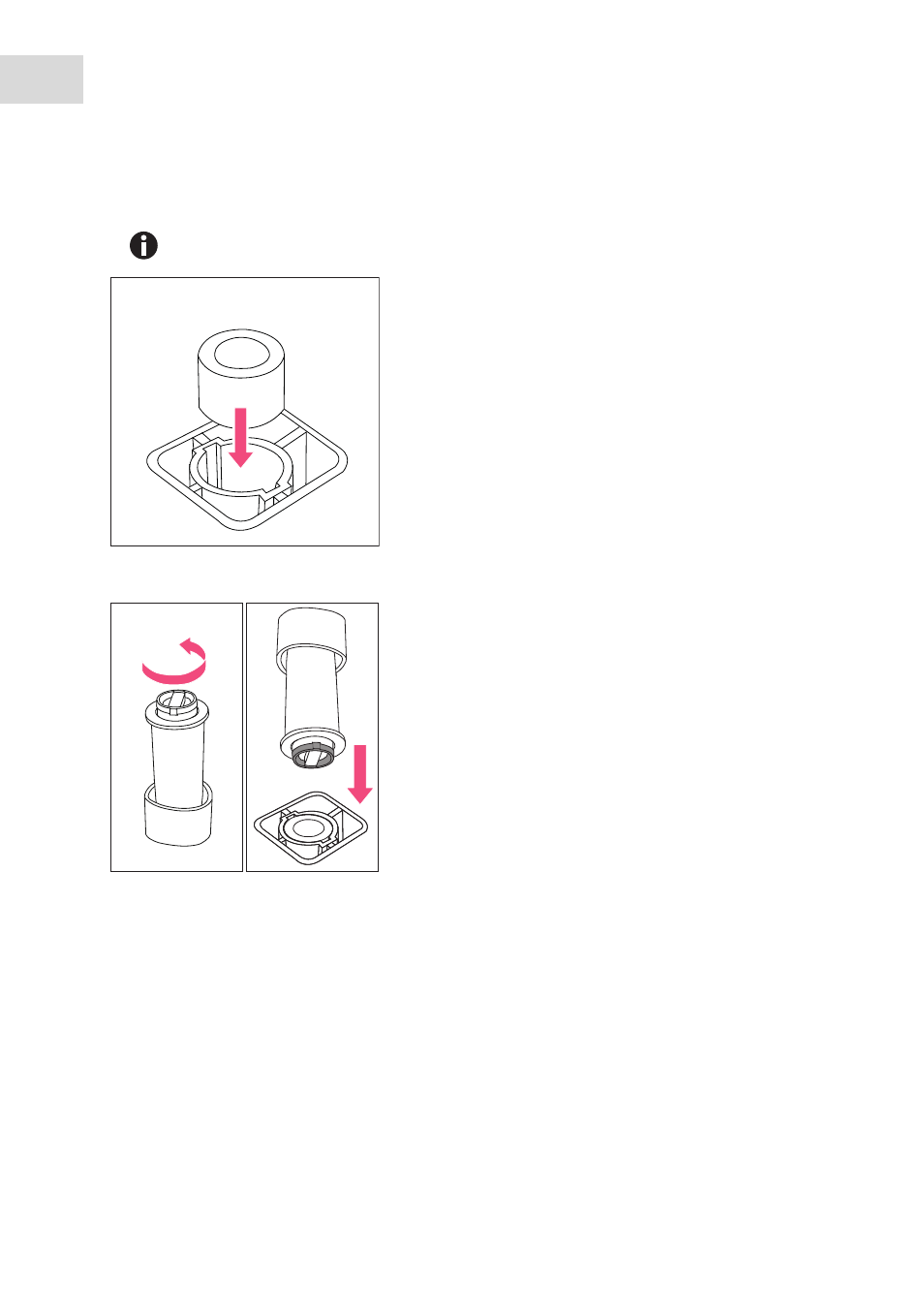

Abb. 5-5: Inserting the filter
Fig. 5-5: Inserting the filter
1. Insert the new filter into the filter slide while
observing the light path.
Abb. 5-6: Filter fixing tool with stop ring
Fig. 5-6: Filter fixing tool with stop ring
2. Place the stop ring on the end of the filter fixing
tool and turn it so it cannot fall down.
3. Push the stop ring and filter fixing tool into the
filter slot.
4. Turn the filter fixing tool until the notch in the
stop ring is aligned with the end of the filter
fixing tool, and remove the tool.
5. Insert blank filters into the slots that have been
left open.
