is only to hold the fender while you install the
rubber gaskets.

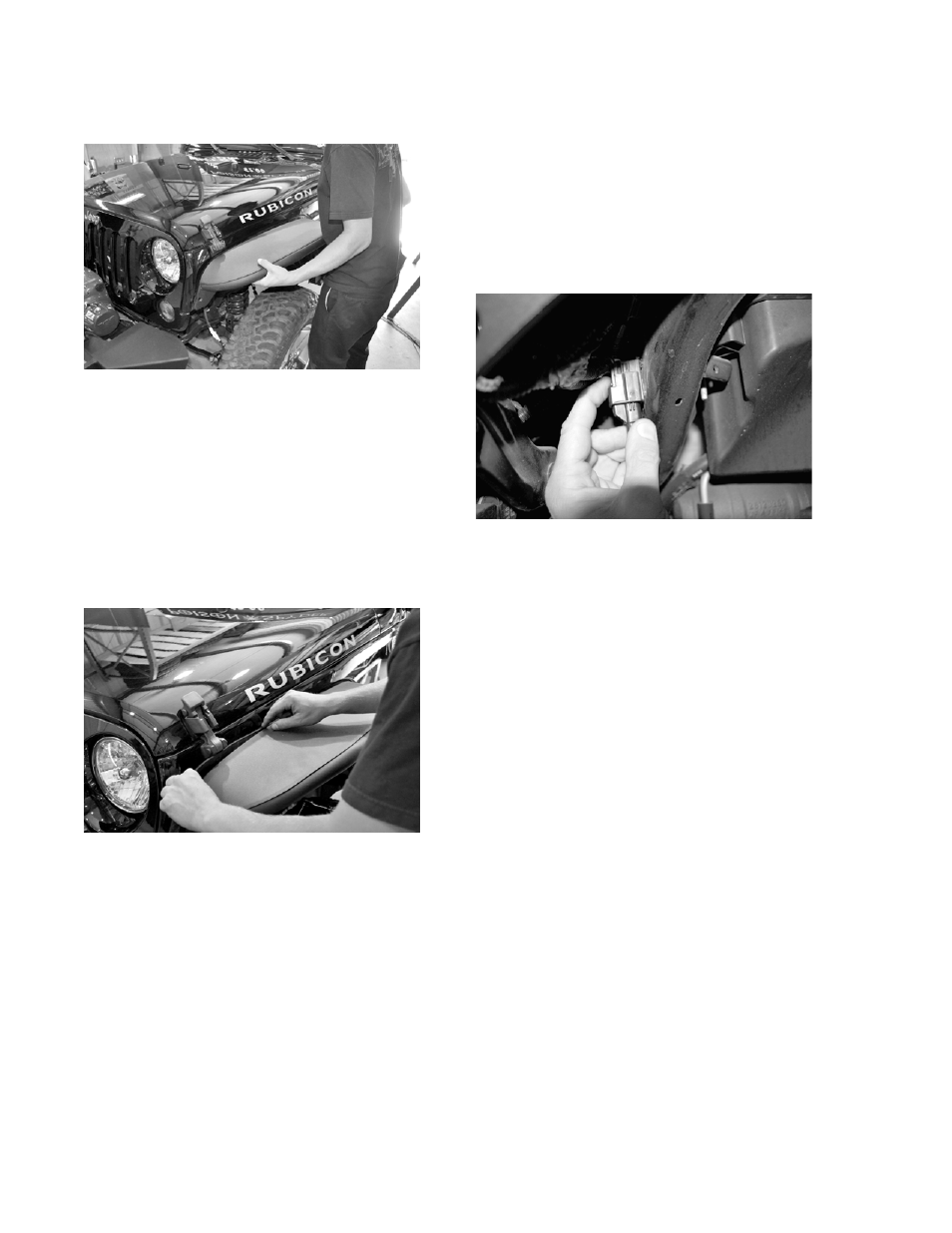

FIGURE 26
20. Locate the rubber gaskets that go between
the Crusher Flare and the Jeep’s sheet metal.
There are two pieces per side--front and rear-
-and you can identify them by shape. With
the Crusher Flare loosely installed, slide the
rubber gasket in between the Crusher Flare
and the Jeep’s sheet metal, and align it with
the outer edge of the Crusher Flare. See that
the holes in the rubber gasket are aligned
with the bolt holes in the Crusher Flare.
FIGURE 27
21. Install the rest of the flat head cap screws
that hold the Crusher Flare to the Jeep. Use
the hex key and 1/2” wrench to tighten all but
the three flat head cap screws that are along
the inner, rearward edge (see step 23).
22. Underneath the top surface of the Crusher
Flare, locate the OE flare bracket that
extends laterally from the side of the Jeep.
There are two holes in this bracket, with two
corresponding holes in the Crusher Flare’s
internal brace that sits upon it. Use two (2)
1/4-20 X 3/4” SS button head cap screws
with 1/4-20 nylon insert lock nuts and 1/4 flat
washers to secure the Crusher Flare internal
brace to the OE flare bracket.
23. (OPTIONAL) If you are installing LED side
marker lights (sold separately), do so now.
Remove the OEM marker light pigtail from
the harness, at the plug as shown in figure
28. Press on the tang with your index finger,
as shown in the photo, to free the plug from
the socket while pulling.
FIGURE 28
Cut the OEM pigtail approximately 2” from
the plug you just removed, and discard the
opposite end. Use butt connectors to attach
the OEM pigtail plug to the LED pigtail. Note
that on the LED’s sold by Poison Spyder, the
white wire is ground and the black wire is
positive. Use a test light to determine which
wire on the factory harness is ground and
which is positive, then make the appropriate
connections. Use heat-shrink wrap to protect
the connection. Install the LED into the small
hole in the forward corner of the Crusher
Flare mounting plate using the supplied
rubber grommet. Then plug the pigtail (now
with the OEM plug) into the socket in the
factory harness. Use a couple of nylon tie-
wraps (zip-ties) to secure any slack in the
pigtail wiring.
