INSTALLATION INSTRUC

TIO

NS

Thank you for purchasing a Poison Spyder

Full Cage Kit for your Jeep TJ Unlimited (LJ).

Poison Spyder’s innovative Lazer-Fit technology

provides for the easiest, fastest installation

of any aftermarket full cage kit on the market.

Installation does require specialized skills and

tools, such as welding. If you are not confident

in your mechanical skills, please seek the help of

a professional to perform the installation. Please

read through these entire instructions before

proceeding with installation.

PARTS LIST
Please check your packages immediately upon

arrival to ensure that everything listed is included,

and to check for damage during shipping. If

anything is missing or damaged, call Poison

Spyder at (951) 849-5911 as soon as possible.

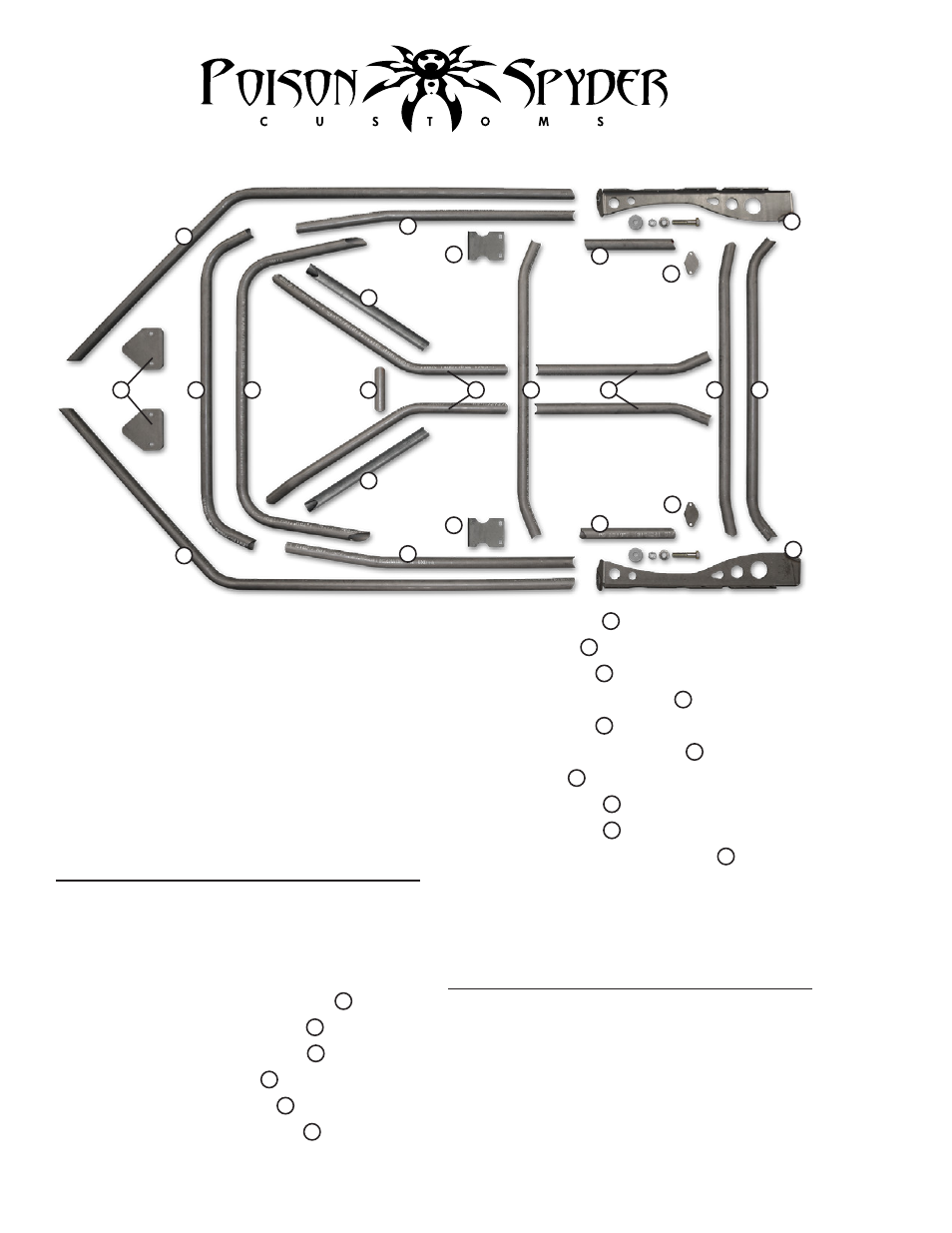

(2) Windshield Mount Plate L&R

1

(2) B-Pillar Mount Plate L&R

2

(2) C-Pillar Mount Plate L&R

3

(2) Lower A-Pillar L&R

5

(2) Main Side Hoop L&R

6

(2) Upper A-Pillar Tube L&R

7

(2) B-Pillar L&R

8

(1) Dash Bar

9

(1) A-Crossbar

10

(2) Forward Stringer L&R

11

(1) B-Crossbar

12

(2) Rearward Stringer L&R

13

(1) C-Hoop

14

(2) C-Pillar L&R

15

(1) Seatbelt Bar

16

(1) Rear Stringer Spreader Bar

17

(2) 1/2-13 X 2-1/2 Gr8 Hex Head Cap Screw
(2) Washer Plate
(2) 1/2-13 nylon insert lock nut

TOOLS NEEDED

• Mechanic’s tool set including Torx bit set
• T-50 “Tamper-Proof” Torx bit
• Ratchet straps
• Welder and proper welding equipment
• Protective welding blankets

LJ FULL CAGE KIT INSTALL

1

1

2

2

10

14

12

5

5

9

16

17

8

8

6

6

7

7

15

15

11

13

3
