Poison Spyder TJ FULL CAGE KIT - Manual

©2010 POISON SPYDER CUSTOMS, INC. • 951-849-5911 • WWW.POISONSPYDER.COM
INSTALLATION INSTRUC
TIO
NS
Thank you for purchasing a Poison Spyder Full
Cage Kit for your Jeep TJ. Poison Spyder’s
innovative Lazer-Fit technology provides for the
easiest, fastest installation of any aftermarket full
cage kit on the market. Installation does require
specialized skills and tools, such as welding. If
you are not confident in your mechanical skills,
please seek the help of a professional to perform
the installation. Please read through these entire
instructions before proceeding with installation.
PARTS LIST
Please check your packages immediately upon
arrival to ensure that everything listed is included,
and to check for damage during shipping. If
anything is missing or damaged, call Poison
Spyder at (951) 849-5911 as soon as possible.

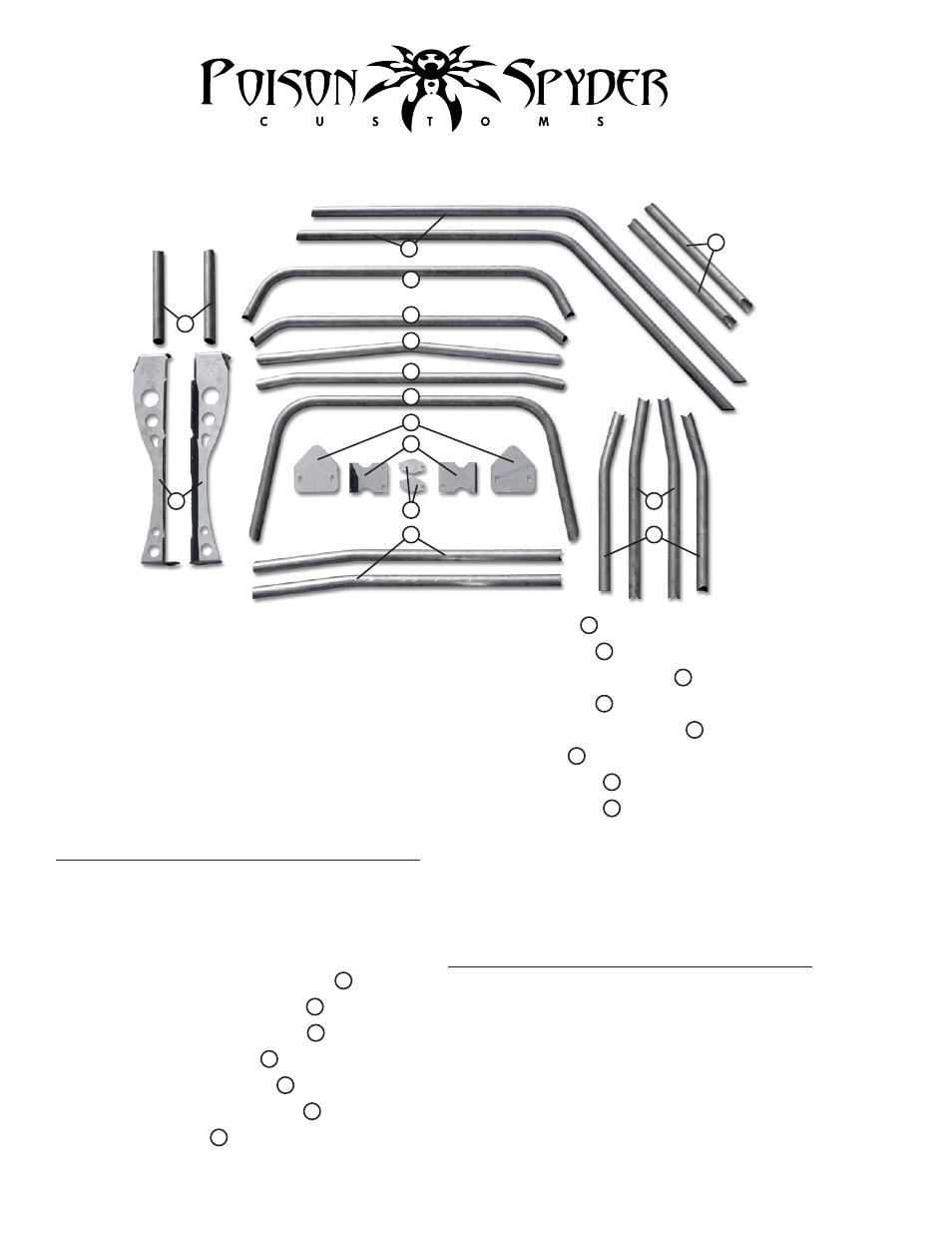

(2) Windshield Mount Plate L&R 1
(2) B-Pillar Mount Plate L&R 2
(2) C-Pillar Mount Plate L&R 3
(2) Lower A-Pillar L&R 4
(2) Main Side Hoop L&R 6
(2) Upper A-Pillar Tube L&R 7
(2) B-Pillar L&R 8
(1) Dash Bar 9
(1) A-Crossbar 10
(2) Forward Stringer L&R 11
(1) B-Crossbar 12
(2) Rearward Stringer L&R 13
(1) C-Hoop 14
(2) C-Pillar L&R 15
(1) Seatbelt Bar 16
(2) 1/2-13 X 2-1/2 Gr8 Hex Head Cap Screw*
(2) Washer Plate*
(2) 1/2-13 nylon insert lock nut*
*Items not shown in kit photo above.
TOOLS NEEDED
• Mechanic’s tool set including Torx bit set
• T-50 “Tamper-Proof” Torx bit
• Welder and proper welding equipment
• Protective welding blankets
TJ FULL CAGE KIT INSTALL
2
3
10
14
12
9
16
1
8
13
11
6
7
4
15
