Removing the MEDIA
Open the door and remove the MEDIA out of one of the two slots (as shown in the
right side of the previous picture).

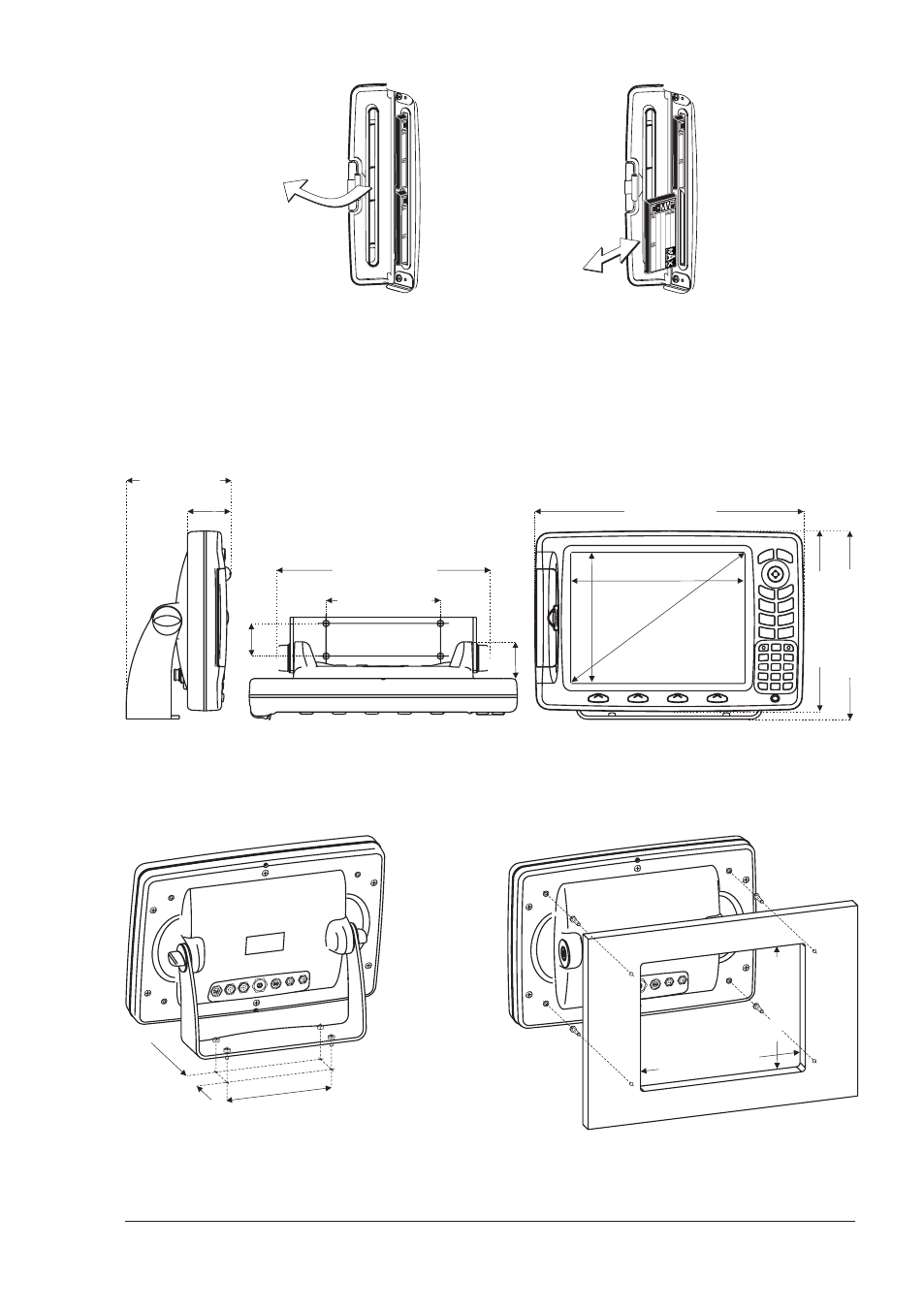

CHART PLOTTER DIMENSIONS
211.2mm [8.3”]
158.4mm
[6.2”]
40mm
[1.6”]
53mm 2.1” [ ]
128mm 5” [ ]
329mm 13” [ ]
221mm
[8.7
”]
230.5mm
[9.1”]
140mm [5.5”]
261mm [10.3”]
45mm
[1.8”]
264mm
[10.4
”]
INSTALLATION AND REMOVING
GPS ANT AUX I/O PWR & I/O VGA OUT
VIDEO IN 1 VIDEO IN 2
OUT
VIDEO IN 1 VIDEO IN 2
140mm [5.5”]
40mm
[1.6”]
225mm [8.56”]
175mm
[6.9”]
