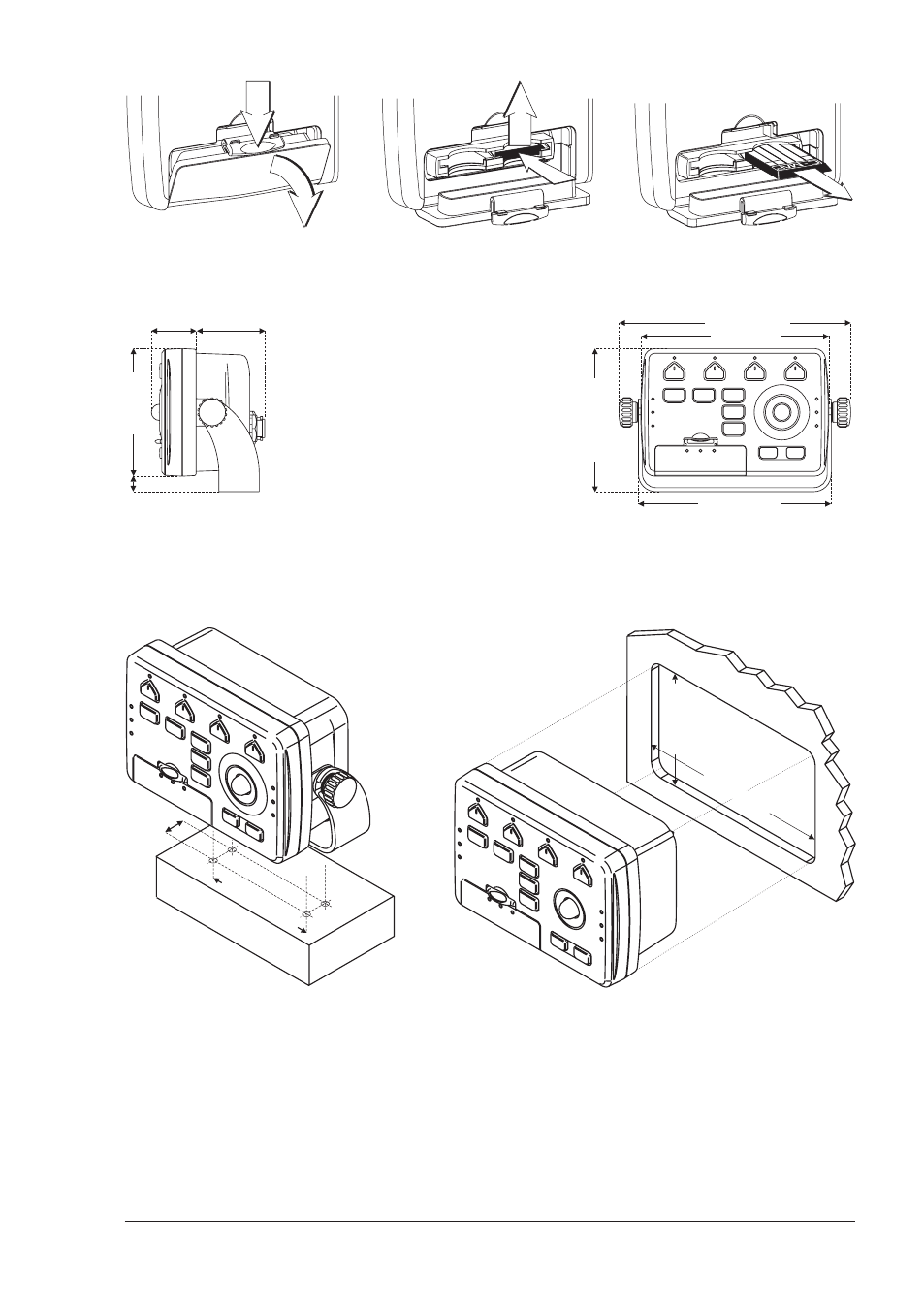

CONTROLLER DIMENSIONS
33.3
[1.3”]
51.1 [2”]
95
[3.7”]
11.5 [0.5”]
172.5 (6.8”)
140 (5.5”)
143.5 (5.6”)
106.5
(4.2”)
INSTALLATION AND REMOVING
80mm
[3.15”]
16
mm
[0.
63
”]
126mm[5.0”]
211mm[8.3”]
WARNING
In order to protect the chart plotter video board, please make sure that the
power cables of the monitor and of the chart plotter are physically separated,
with protection against electrical discharge.
