79 User Manual

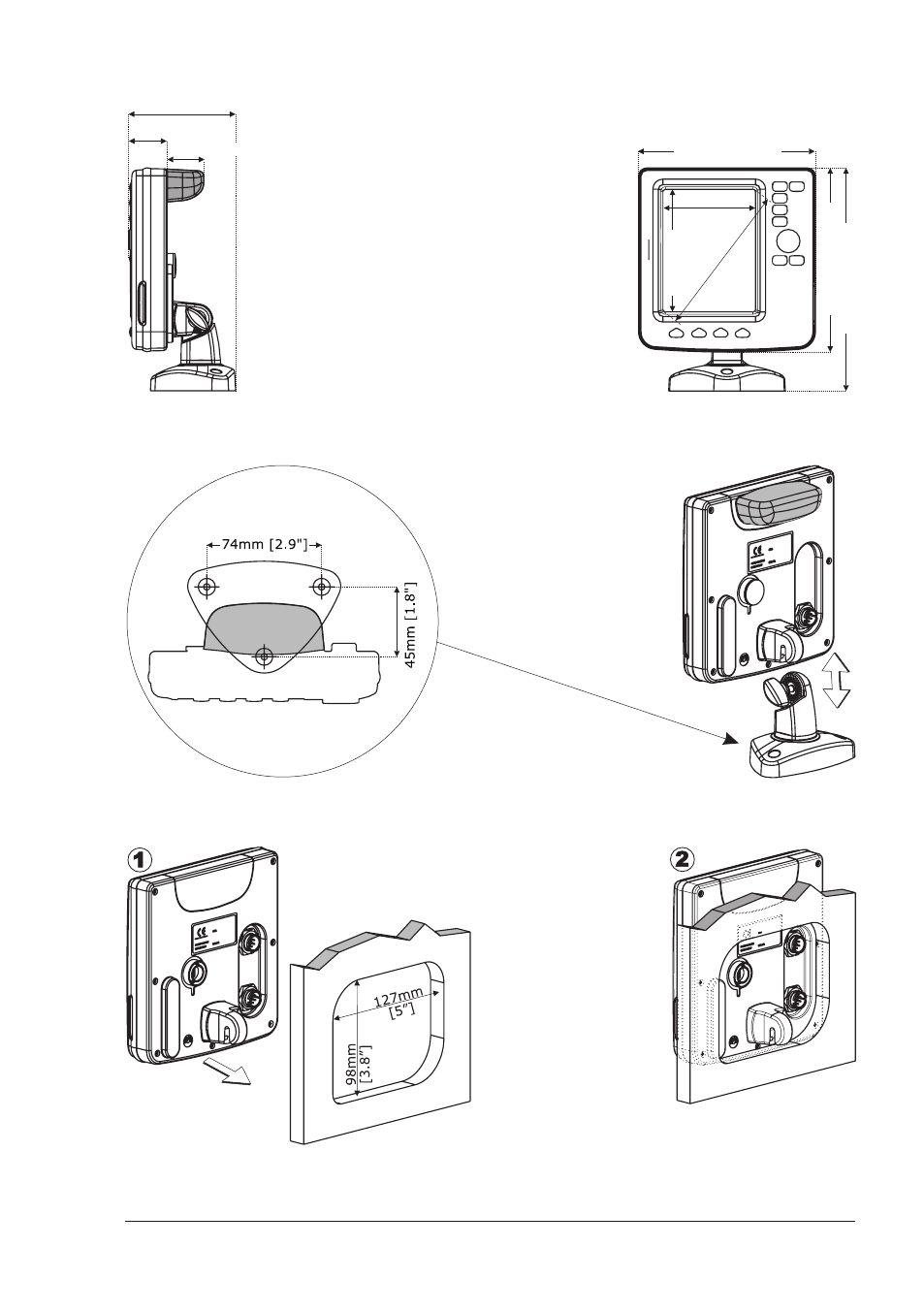

CHART PLOTTER DIMENSIONS
GRAY parts are present ONLY on chart plotter WITH GPS INTERNAL
76.3mm
[3.0”]
155.5mm
[6.1
”]
188.4mm
[7.4
”]
101.7mm
[4.0”]
90.4mm [3.6”]
32.4mm [1.27”]
31mm [1.22”] 149.5mm [5.8”]
127.2mm [5.0”]
INSTALLATION AND REMOVING
Bracket installation for SEAHORSE/SEAHORSE
E
Flush mount installation for SEAHORSE
E
