78 User Manual
♦
Man OverBoard (MOB) to navigate back to a missing person or object
♦
Simulation Mode with cursor control
TECHNICAL SPECIFICATIONS
♦
Power consumption : 0.5A max @ 12V
♦
Interface : NMEA-0183
♦
Autopilot Interface : NMEA-0180, NMEA-0180/CDX, NMEA-
0183
♦
Display : Sun Light Viewable Color LCD
(active area 5")
♦
Display Resolution : 240 x 320 pixels
♦
Cartography : C-MAP B
Y
J
EPPESEN
DATA MEDIA
♦
Operating temperature range : 32/131 °F (0/+55 °C)
♦
Memory : Non volatile
♦
Keyboard : Silicon rubber, backlight
♦
Weight : 540 gr.
(with external bracket)
460 gr.
(without external bracket)
When the package containing the chart plotter is opened for the first time after
purchase, please make sure that the following contents are present (if any item is
missing, please contact your local dealer):
♦
Bracket
♦
Chart plotter's protective cover
♦
Power supply and I/O cable CBC0FS0804
♦
Fuse 2 Amp. + fuseholder
♦
User Manual
♦
Flush mounting kit + Cutting template
(SEAHORSE E )
♦
Smart DGPS WAAS Receiver with cable 15 mt/45 feet
(SEAHORSE
E
)
INSERTING/REMOVING PROCEDURE
Inserting the MEDIA

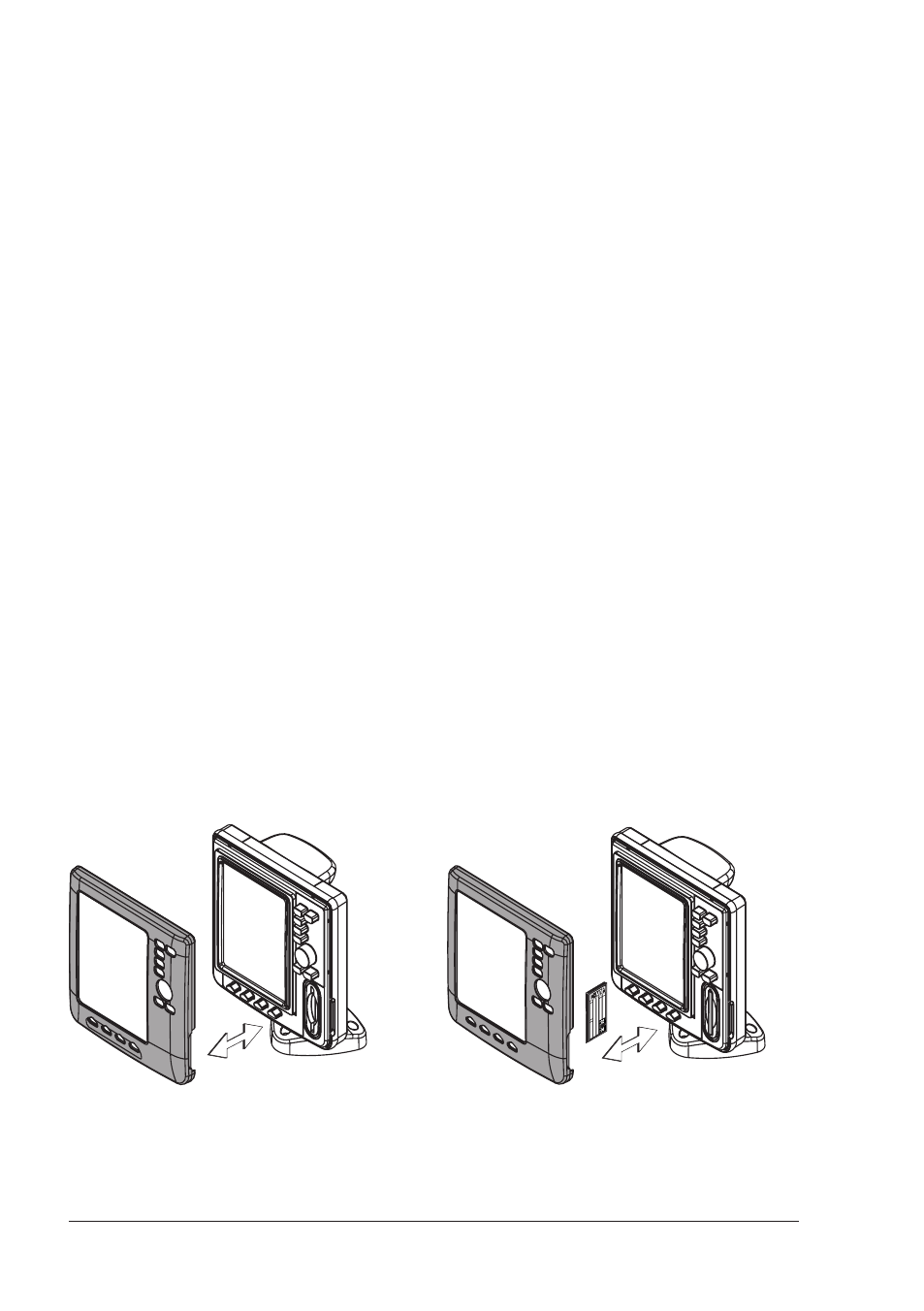

Remove the front cover as explained in the following picture. Hold the MEDIA by
the long inclined side so that you can see the C-MAP label. Gently push the MEDIA
into the slot; push the MEDIA in as far as it will go to hold fixed into the slot and
place the front cover again.
code date
ser.n
class A
Removing the MEDIA
Remove the front cover and the MEDIA remove out of the slot.
