Man OverBoard (MOB) to navigate back to a missing person or object
♦
Simulation Mode with cursor control
TECHNICAL SPECIFICATIONS
♦
Power consumption : 0.5A max @ 12V
♦
Interface : NMEA0183
♦
Autopilot Interface : NMEA-0180, NMEA-0180/CDX, NMEA-
0183
♦
Display : Sun Light Viewable Color LCD
(active area 7")
♦
Display Resolution : 480 x 234 pixels
♦
Cartography : C-MAP B
Y
J
EPPESEN
DATA MEDIA
♦
Operating temperature range : 32/131 °F (0/+55 °C)
♦
Memory : Non volatile with battery backup
♦
Keyboard : Silicon rubber, backlight
♦
Weight : 1,1 Kg
When the package containing the chart plotter is opened for the first time after
purchase, please make sure that the following contents are present (if any item is
missing, please contact your local dealer):
♦
External quick disconnect bracket and I/O cable 1,5 mt/5.9 feet
♦
Chart plotter's protective cover
♦
Fuse 2 Amp. + fuseholder
♦
User Manual
♦
Flush mounting kit
(BARRACUDA)
♦
Smart DGPS WAAS Receiver with cable 15 mt/45 feet
(BARRACUDA)
INSERTING/REMOVING PROCEDURE
Inserting the MEDIA

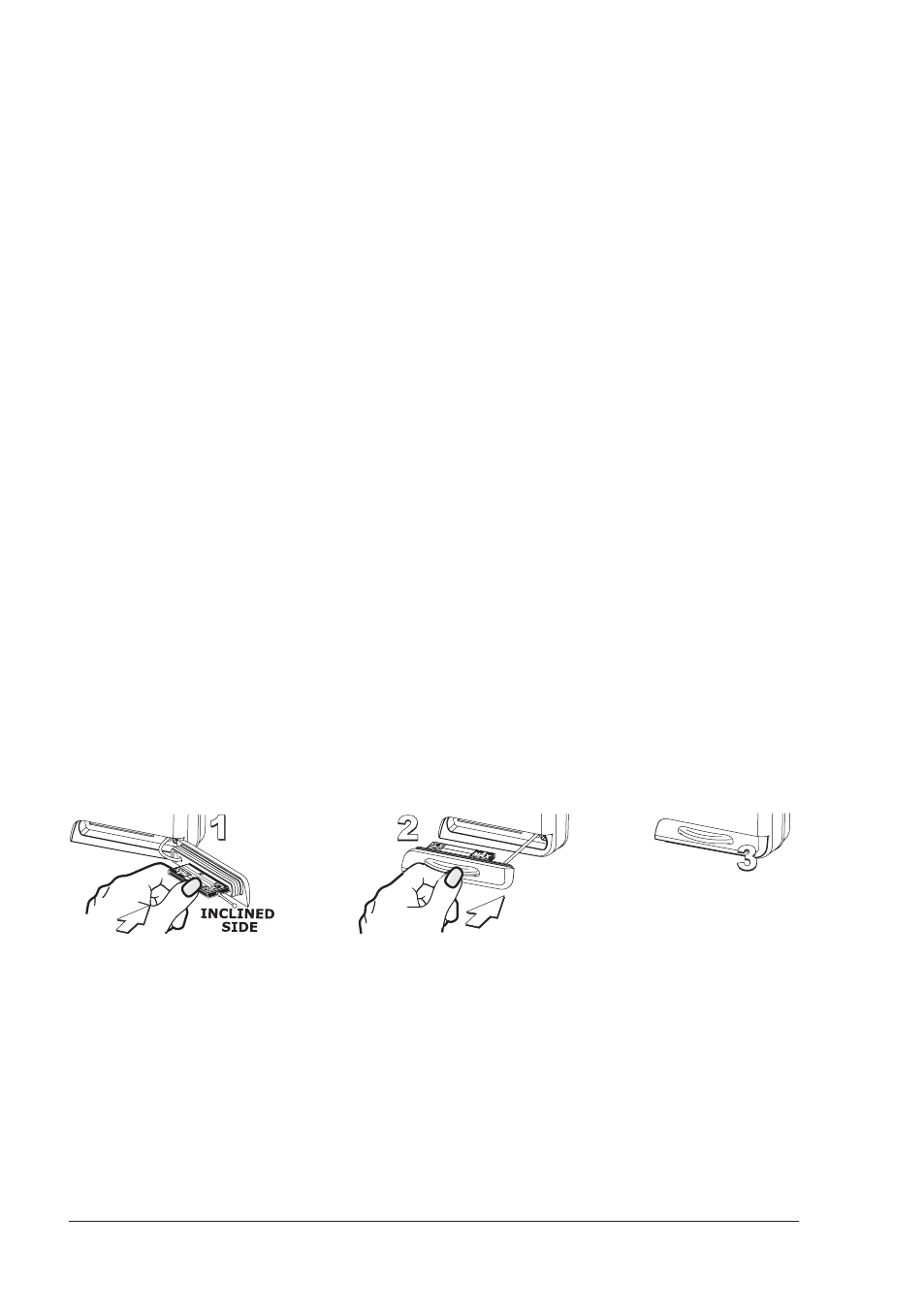

Open the door, hold the MEDIA by the long side so that you can see the "C-MAP"
label and gently push the MEDIA into the door slot (1). Close the door pushing the
MEDIA in as far as it will go to hold fixed into the chart plotter slot (2). When
finished the door must be right closed as shown in the picture (3).
Removing the MEDIA
To remove the MEDIA inserted in the chart plotter open the door (1). The MEDIA
will eject out of the chart plotter slot remaining fixed into the door (2). Then
remove the MEDIA from the slot (3).
