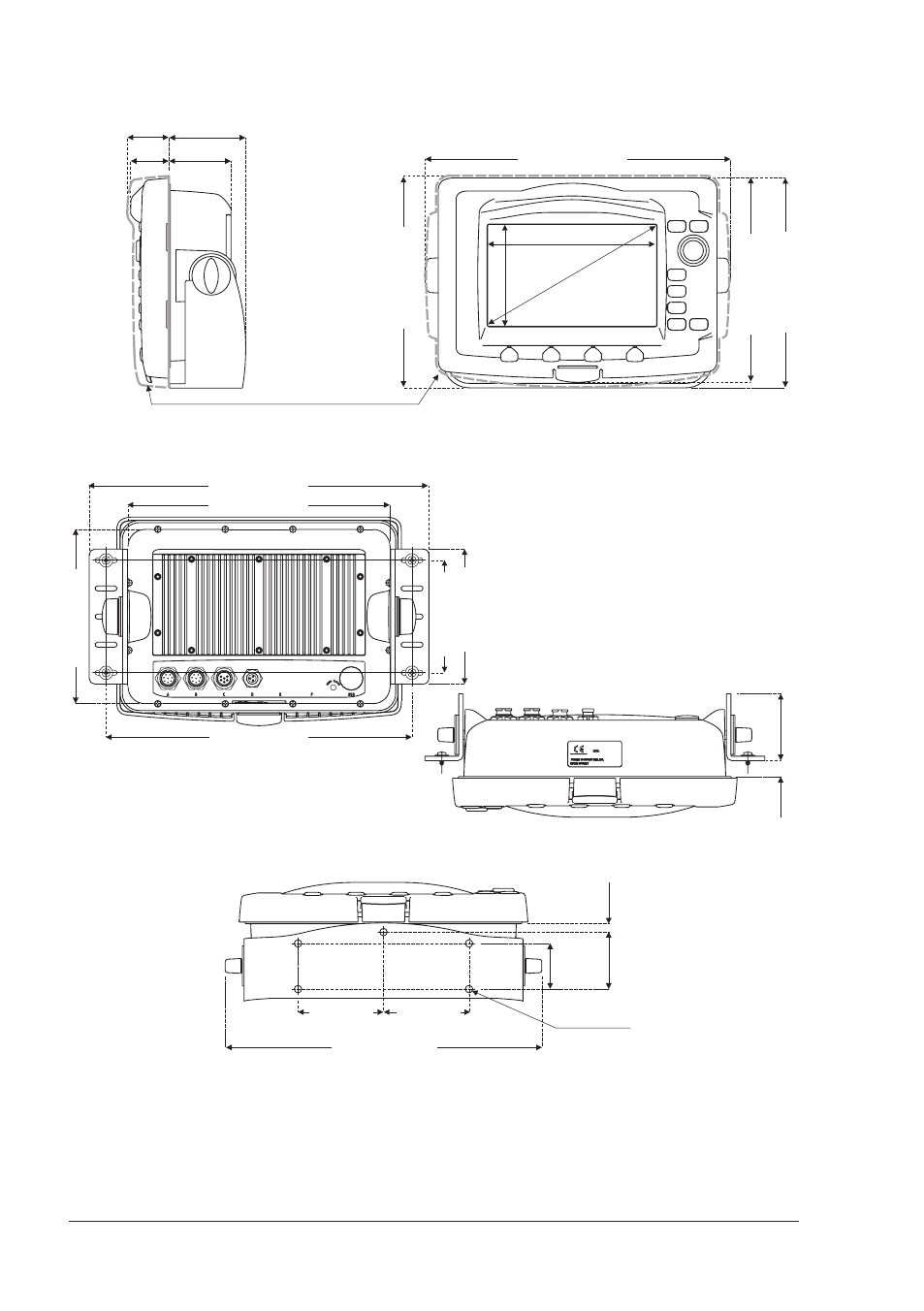

CHART PLOTTER DIMENSIONS
56.5mm
[2.2”]
69.8mm [2.8”]
34.7mm
[1.4”]
37.7mm [1.5”]
PROTECTIVE COVER
277.5mm [10.9”]
192.5mm
[7.6”]
153.5mm [6.04”]
177.7mm
[7”]
91.4mm
[3.6”]
185.5mm
[7.3”]
190.5mm
[7.5”]
INSTALLATION AND REMOVING
59.5mm
[2.3”]
14mm
[0.6”]
154.8mm
[6.1”]
232.8mm [9.2”]
302mm [11.9”]
272mm [10.7”]
120mm
[4.7”]
100mm
[3.9”]
MAX
Flush Installation
6.5mm [0.3”]
7.3mm
[0.3”]
40mm [1.6”] 50mm
[2”]
75mm [3”] 75mm [3”]
277.5mm [10.9”]
Bracket Installation
