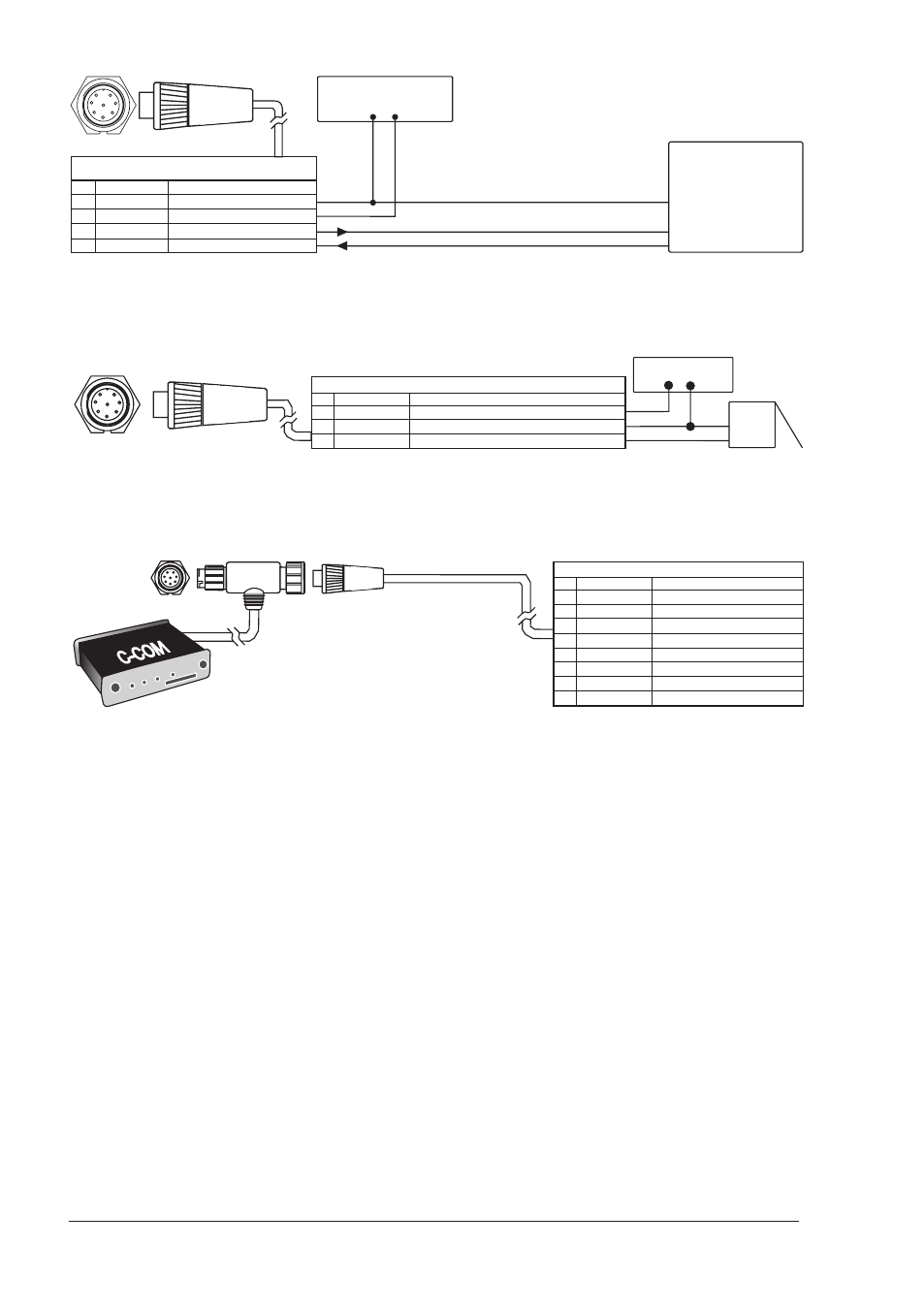

POWER & I/O
POWER SUPPLY
- +
1
POWER & I/O CABLE POWER & I/O CABLE
PWR-/GND/COMMON
POWER INPUT+ (10-35 Vdc)
OUTPUT 2+
INPUT 2+
BLACK
RED
GRAY
BROWN
PIN
1
2
5
7
WIRE COLOR FUNCTION
EXTERNAL
NMEA
DEVICE
COMMON
TX+
RX+
External NMEA on Port 2
External Alarm Connection
POWER & I/O
1
2
8
PIN CABLE COLOR FUNCTION
PWR -/GND/COMMON
PWR + (10-35 Vdc)
OUTPUT EXTERNAL ALARM+
(Open Collector)
POWER & I/O CABLE POWER & I/O CABLE
BLACK
RED
BLUE
1
2
8
1
Current MAX 300mA
- +
POWER SUPPLY
+
-
External Alarm Connection
C-COM GSM PLUS Connection
POWER & I/O
POWER & I/O CONNECTOR POWER & I/O CONNECTOR
1
2
3
4
5
6
7
8
PIN CABLE COLOR FUNCTION
BLACK
RED
WHITE
GREEN
GRAY
YELLOW
BROWN
BLUE
PWR-/GND/COMMON
PWR+ (10-35 Vdc)
Used by C-COM
Used by C-COM
OUTPUT2+
Used by C-COM
INPUT2+
OUTPUT EXTERNAL ALARM+
C-COM Connection
