Elements of the XTCC window

XTCC

8.4 Elements of the XTCC window

8.4.1

Display

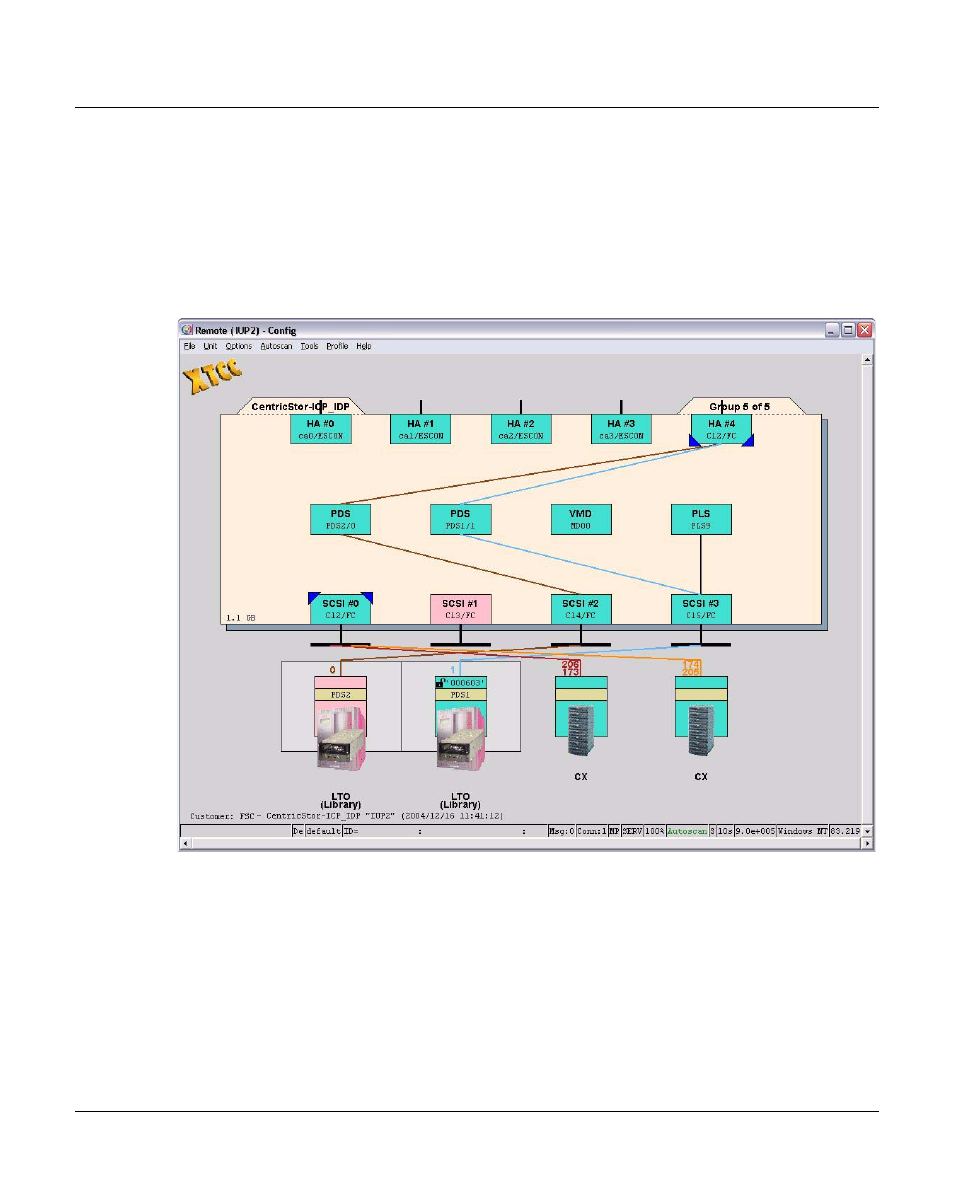

Each XTCC window displays an ISP of the CentricStor system, together with the connected
peripherals. The ISP is represented by a beige field at the center of the window:

The small colored boxes around the edge represent the peripheral controllers (ESCON,
FICON, FC, SCSI, FC-SCSI). The small boxes in the middle represent software processes.
