GXCC
Function bar
6.2.9.3

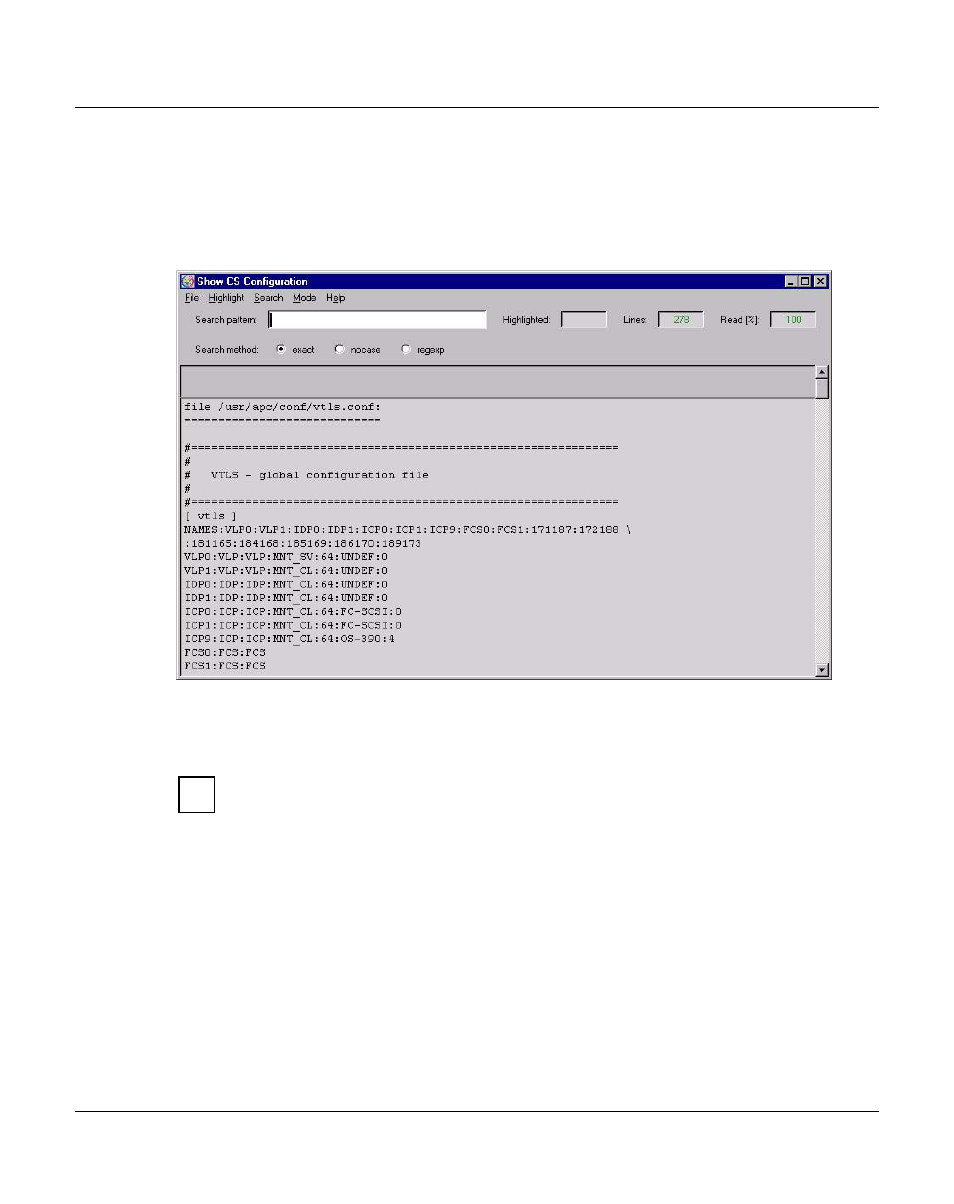

Show CS Configuration
This function outputs the contents of the configuration files /usr/apc/conf/vtls.conf,
/usr/apc/conf/vtls_vg.conf
and, if present, /usr/apc/conf/vtls_add.conf.
Example
6.2.9.4
Diagnostic Snapshots
This function is not offered in Observe mode.
This function performs a similar task to the vtrc script, but in contrast to vtrc permits
selection of the ISPs on which the function is to be performed.
A “Diagnostic Snapshot” is a collection of diagnostic data which the system stores in the
following situations:
–
When the “Diagnostic Snapshots / Create Snapshot(s)” function is called
–
Automatically when certain error situations occur
Each Diagnostic Snapshot contains data only of the ISP on which it was generated. The
system selects the files which are to be saved.
Submenus:
–
–
Show survey / Delete snapshots
–
