GXCC Function bar
6.2.8 Profile
The term “profile” encompasses the following:
– the settings chosen under “Options”
– the settings chosen under “Autoscan”
– the window size and position as set using the graphical user interface
The screen size can be predefined as a start parameter (-size). All other options are set to
their default values by GXCC on startup.
6.2.8.1 Add/Select Profile

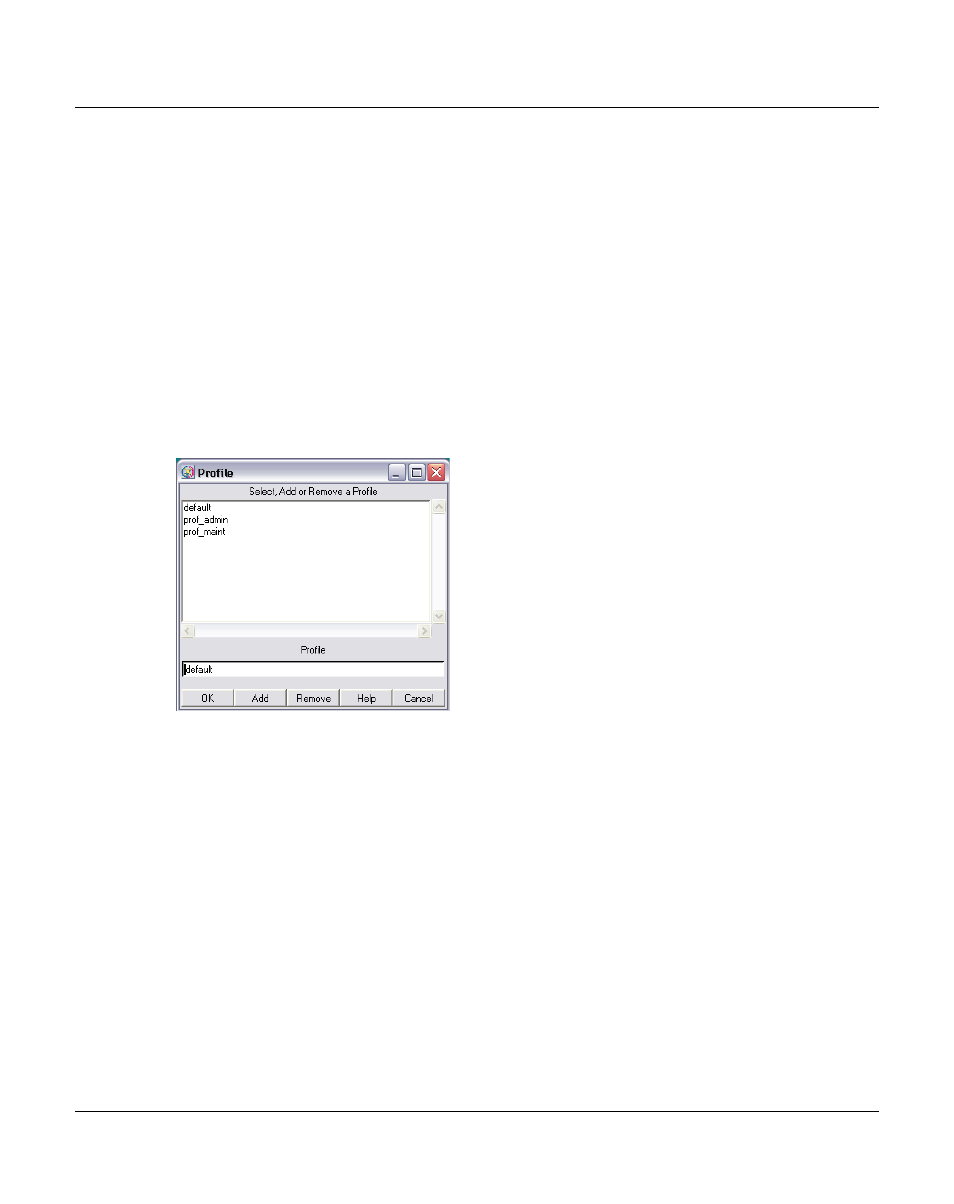

The “Add/Select Profile” function is provided under “Profile”, and opens the following dialog
box:
A profile file can be selected at startup with the -profile option or by
choosing this menu command. If no profile file was selected explicitly, GXCC runs under the
control of the default file.
The name of the active profile file is shown at the bottom margin of the GXCC window.
The upper part of the window contains a list of available profile files. Click a file to select it.
The name of this file is then copied to the editing area. It is also possible to enter a new
name or change an existing name in the editing area.
If the special characters / \ [ ] " ' $ * : ? < > | are used, they are replaced by underscores “_”.
Each user can access all GXCC profile files.
