Global Status

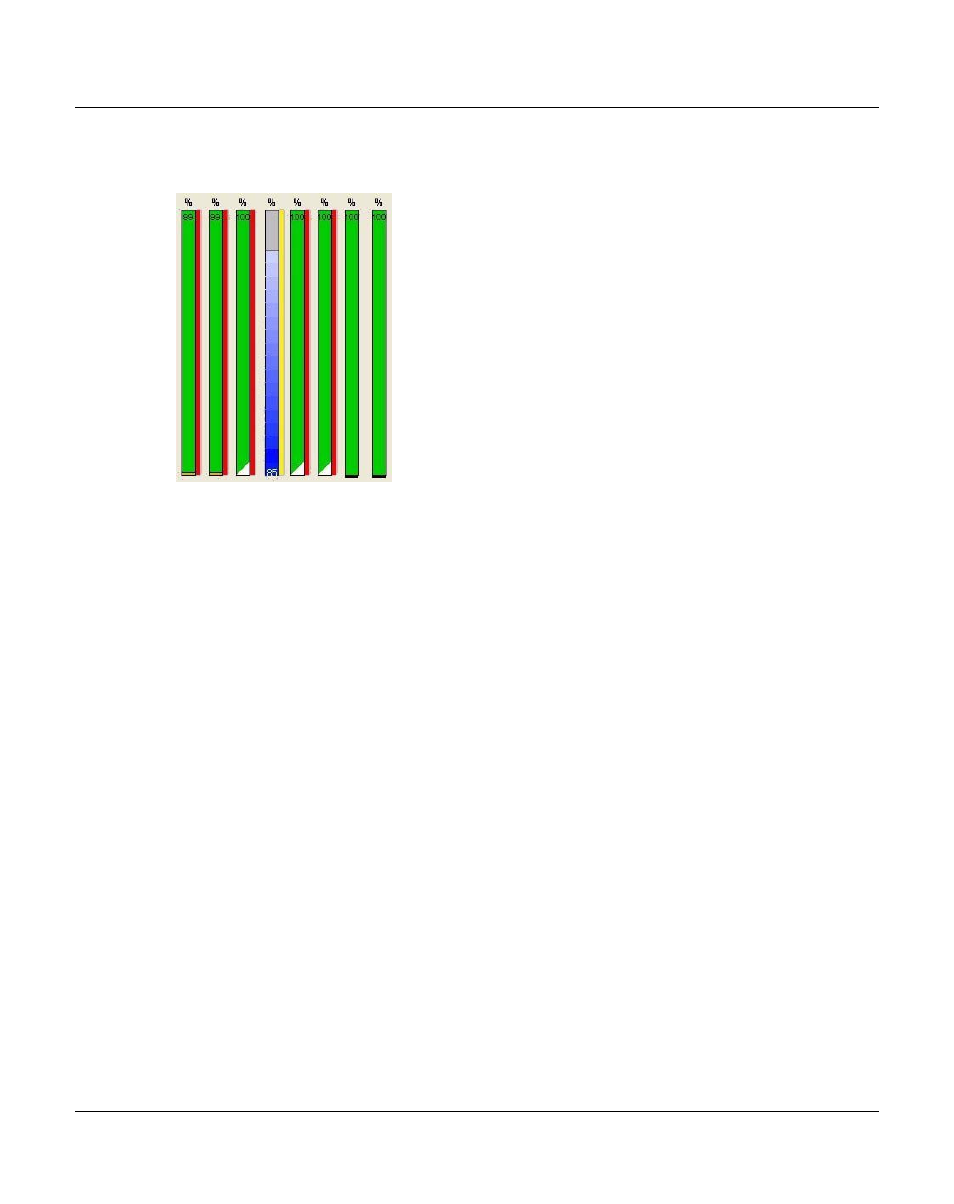

Display of the Global Status Monitor
Additional displays for mirrored systems
●
Red bar on a cache column: The cache is no longer mirrored (“out of sync”).
Left:
Primary cache
Right:
Secondary cache
●
Yellow bar on a cache column: The cache concerned is being resynchronized and is still
in the “out of sync” status.
Left:
Primary cache
Right:
Secondary cache
●
Progress display on the cache column (a bar that goes from blue to white and expands
upward): This displays the current progress during resynchonization.
●
Trinagle at the bottom right of the column:
White:
Cache is empty (contains no LVs)
Red:
Error during resynchronization
●
Black line below a column: The cache is not mirrored.
●
Cache brown: The cache is in the “disabled” status.
