Topics:
• Popup Display

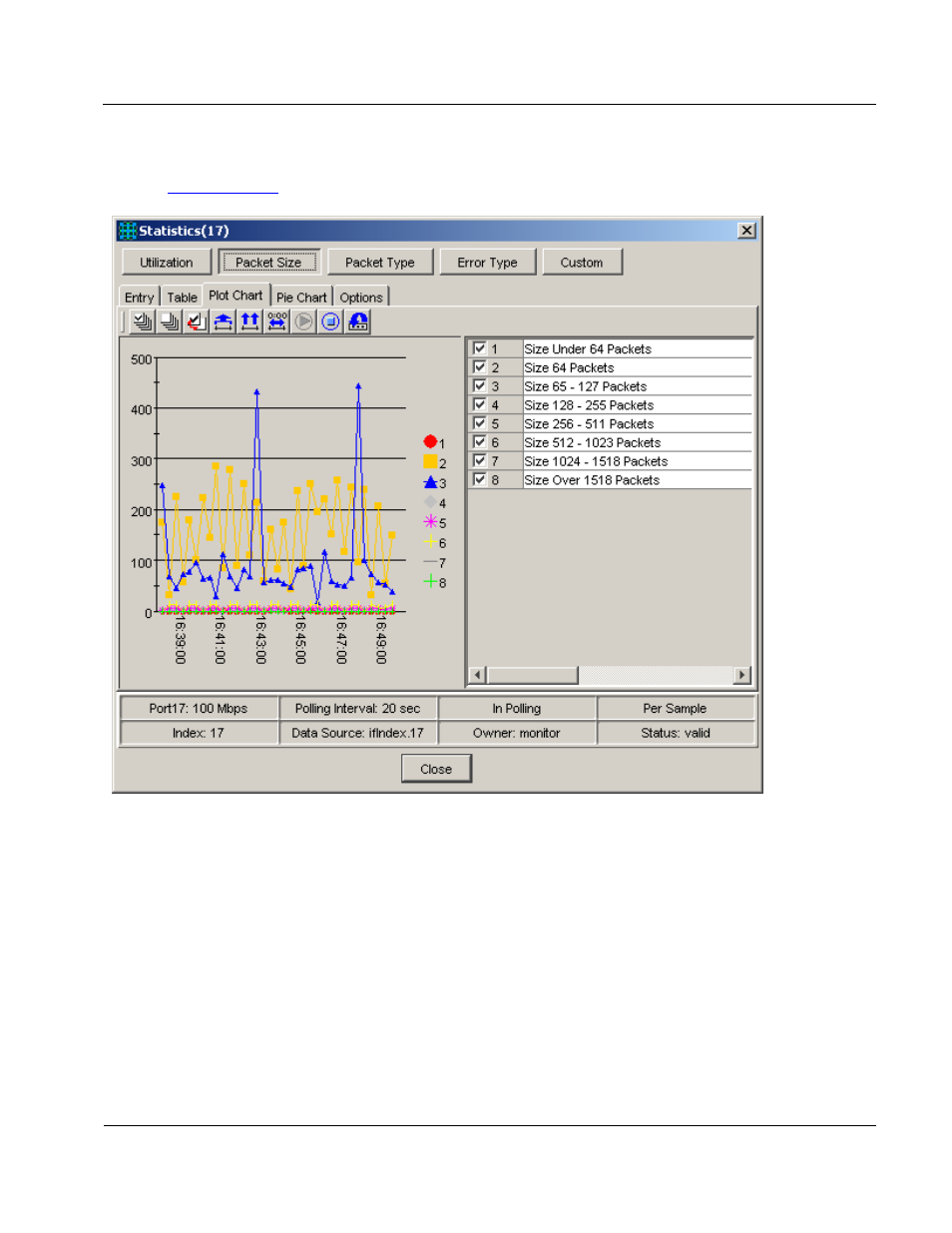

RMON Statistics Plot Chart tab
7.2.5.1 Popup Display
You can see the exact value of a plotted dot by moving the mouse cursor onto the dot. The values are
displayed in the form "(x, y)". where x indicates the time elapsed after the RMON window is opened
and y indicates the value of the data.
Below the graph's horizontal axis, time is displayed. Note that the times shown there are only for
your reference. They are not synchronized with the polling interval plotted dots.
7.2.6 Pie Chart Tab
In the Pie Chart tab, network statistics are shown in a pie chart. This chart is useful for checking the
proportions of the various packet counts. The data is updated at the polling interval.
