5.2.6 Snapshot
Clicking this option in the View menu opens the Start Snapshot window. Use this window to create
an image of the device, as well as tables or charts representing device information, in HTML format.
Note - If you open the Start Snapshot from the View menu in the main window, you can only create
an image of the main panel.

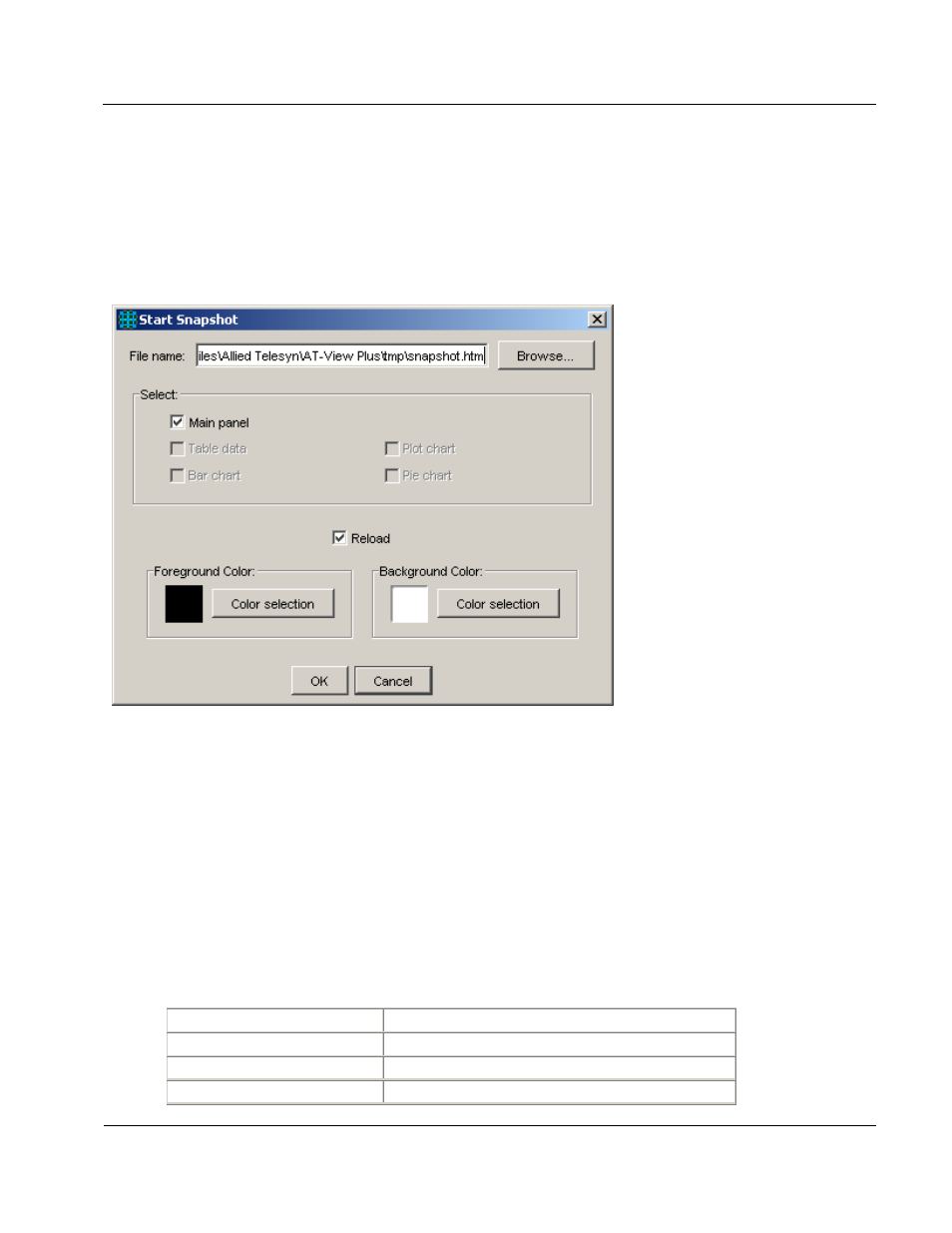

Start Snapshot
File name
Use the 'Browse' button to select the directory or folder where you want to save the image
and to specify the name of the HTML file. When you click OK, three files will be created in
the directory or folder you've selected: a PNG file, an XML file, and an HTML file. To
display the device image and associated information, use a web browser to open the HTML
file.
Select
Choose the information that you want to save in the HTML file.
Note - Depending on the selections that you make, the following PNG files will be created:
Selection PNG File
Main Panel snapshot_m#.png
Plot chart snapshot_p#.png
Bar Chart snapshot_b#.png
