Allied Telesyn

AT-VIEW PLUS

DEVICE MANAGER

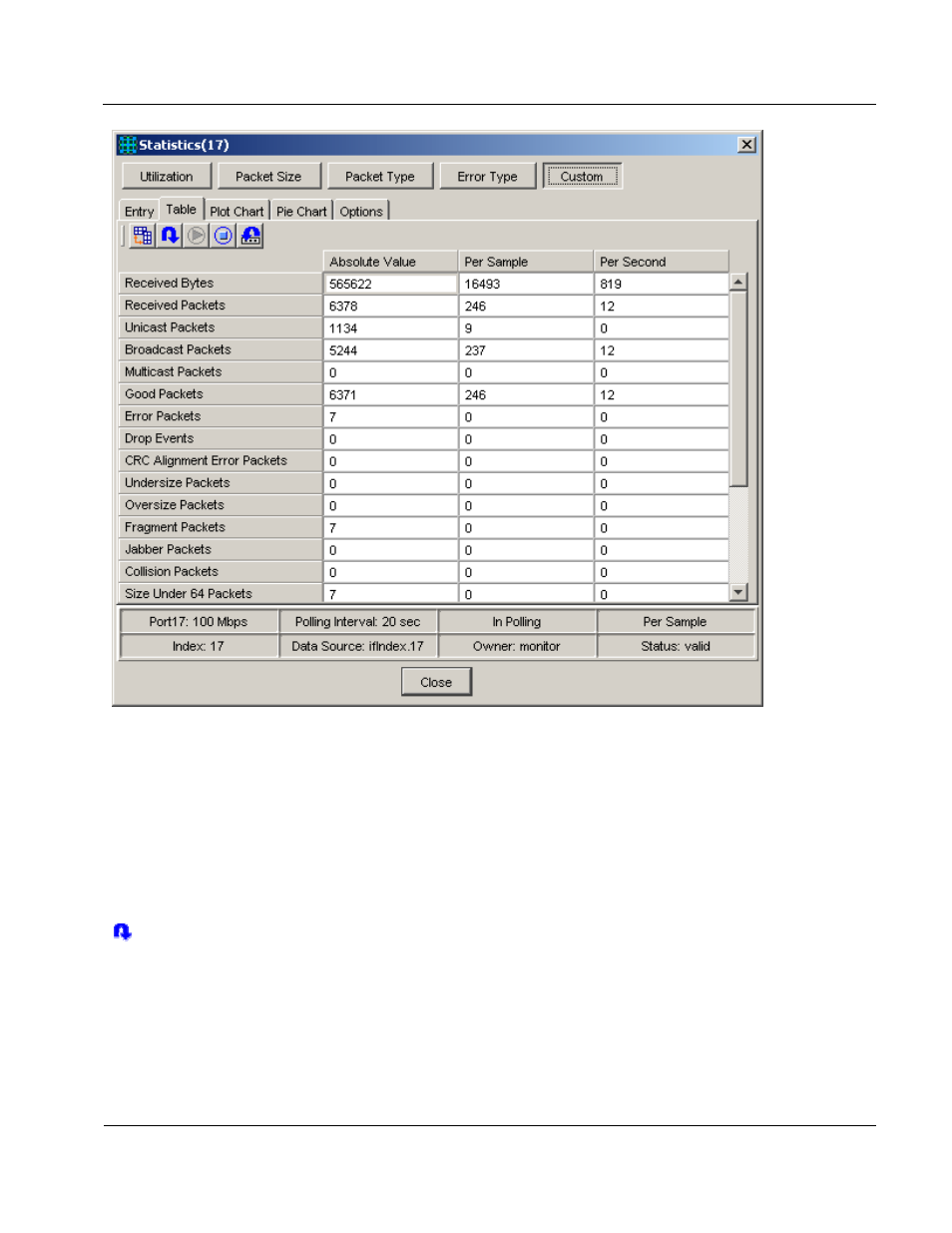

RMON Statistics Table tab

7.2.4.1 Sort

To sort table items, click a column title. When you click the column title, table items are sorted by
the column in ascending order. One more click sorts the items in descending order. To restore the
original order, click the Reset Table button.

7.2.4.2 Reset Table Button

: Reorders table items after using sorting function.

7.2.5 Plot Chart Tab

In the Plot Chart tab, network statistics are shown in the time-scaled plotting graph. Data is updated
at the polling interval. The horizontal axis contains a maximum of the 40 latest values.

PN 613-50664-00 Rev A

Page 92 of 127
