Allied Telesyn AT-VIEW PLUS
DEVICE MANAGER

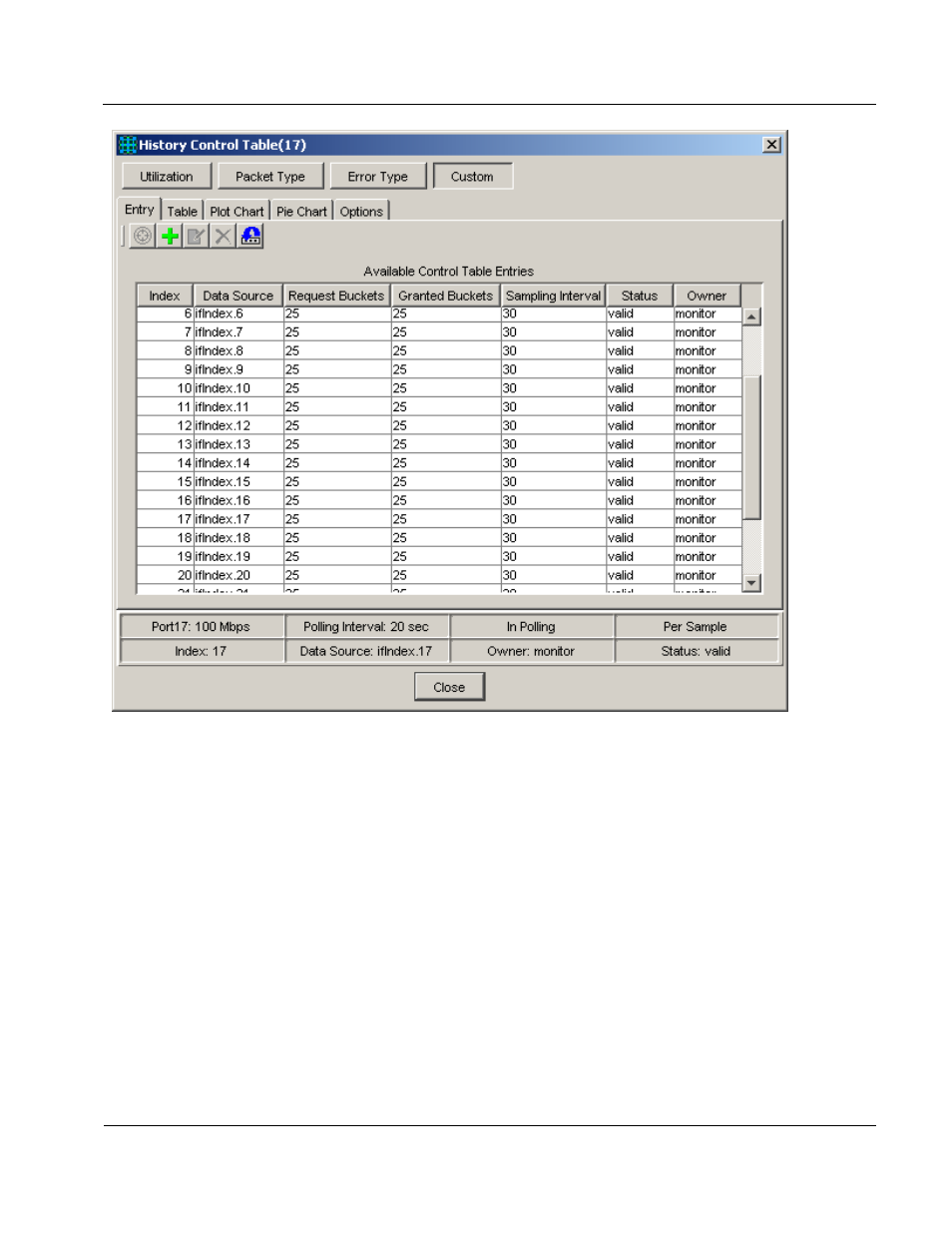

RMON History Entry tab
7.3.3.1 Available Control Table Entries
This table shows all control table entries configured on the target RMON agent. Data displayed in
the RMON History window is collected using the selected control table entry. Here you can create a
new entry, or modify or remove an existing entry. By default, the topmost entry is automatically
selected.
The Control table is not automatically updated. To see the latest information, click the Refresh
button.
The table has the following columns:
Index
The index number used to identify this entry.
Data Source
The index of the RMON interface which collects history samples for the entry.
PN 613-50664-00 Rev A Page 103 of 127
