Allied Telesyn AT-VIEW PLUS
DEVICE MANAGER
Add button (Green 'plus' icon)
Adds a new threshold definition.
Remove button (Blue 'X' icon)
Removes the selected threshold.
Edit button ('note and pen' icon)
Edits the selected threshold.
5.2.5 Current Log
Displays the event log. It records events such as AT-View Plus Device Manager start up, reception
of traps, or threshold events.

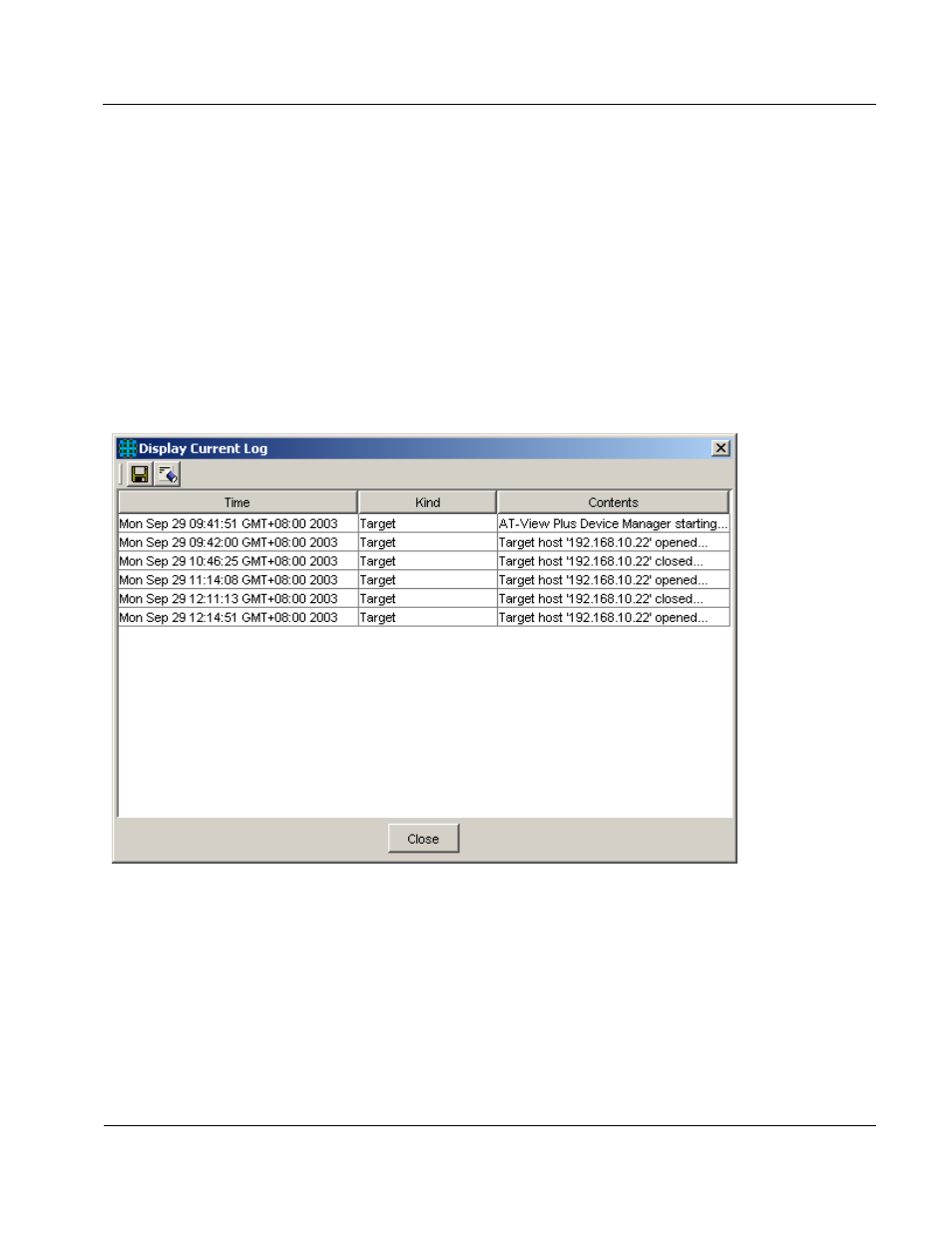

Display Current Log
Save As ('Floppy disk' icon)
Saves the log as a text file. Specify a filename in the Save As dialog box. Each log entry is
saved as one line. Each field in an entry is delimited by a TAB character.
Clear ('note and eraser' icon)
Clears the log.
Note - If SNMPc, HP OpenView, or Tivoli NetView is running, AT-View Plus Device
Manager will not receive any traps. This is because the traps are being intercepted by the
network management application and will never reach AT-View Plus Device Manager.
PN 613-50664-00 Rev A Page 44 of 127
