Allied Telesyn

AT-VIEW PLUS

DEVICE MANAGER

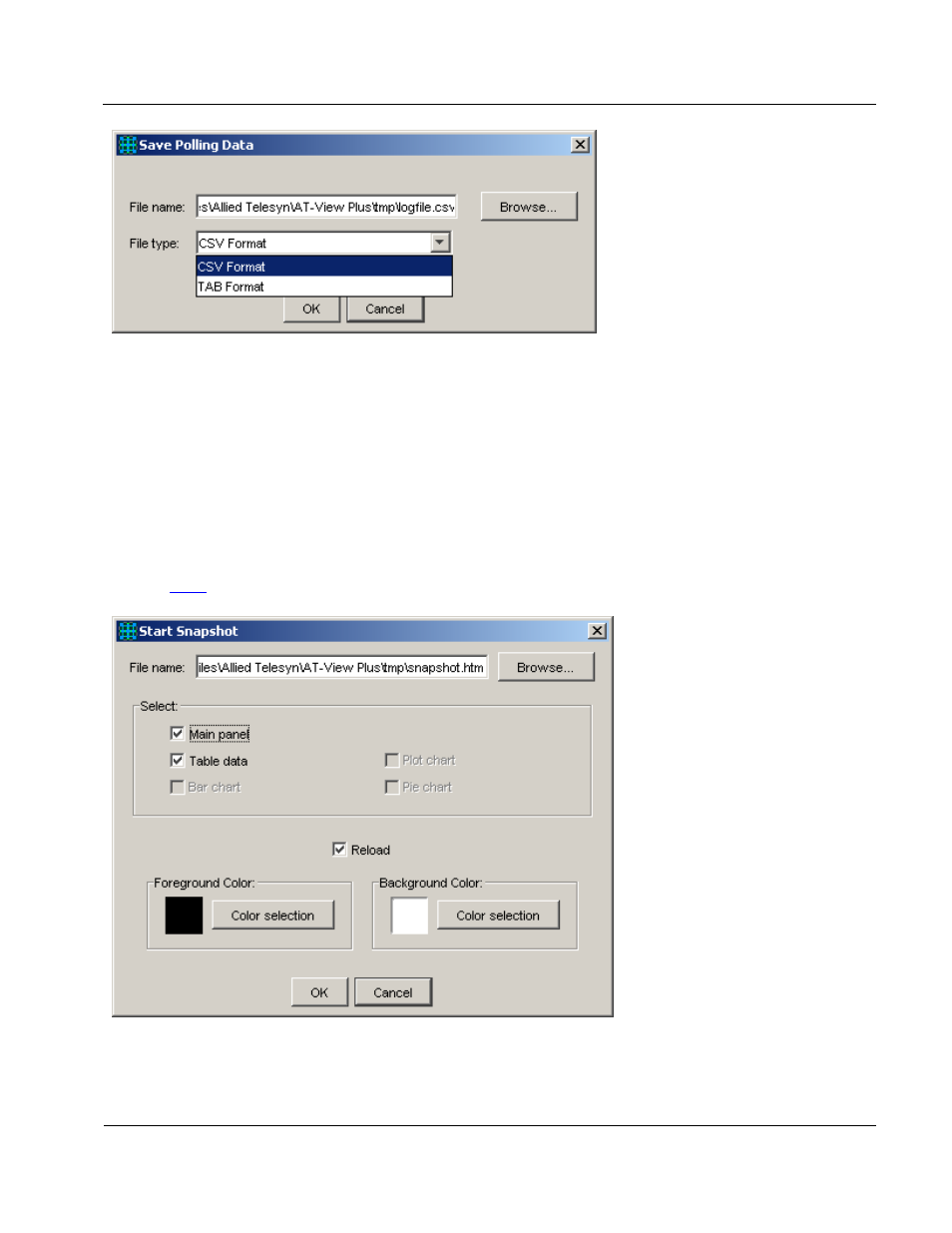

Save polling data

6.5.5 Start Snapshot

Clicking this button opens the Start Snapshot window. Use this window to save the information
displayed in the front panel, as well as tables or charts representing device information. Use the
'Browse' button to select the directory or folder where you want to save the image.

Note

- You can generate an image of the main panel, table data, or charts. The type of image or

device information that you can generate depends on which menu you opened the Start Snapshot
window from. For more information on the file types created in the Start Snapshot window, see
section

5.2.6

Start snapshot

Below is a snapshot from the MIB Variable window, with the main panel and table data both marked
in the Start Snapshot window:
