AT-S63 Management Software Web Browser Interface User’s Guide
Section VI: Port Security 385
Additional Info
This field displays the MAC address of an authenticated node for
authenticator ports with a status of Authenticated.
Displaying the
Port Settings
To display the port settings for port-based network access control, perform
the following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select Network Security.
3. Select the 802.1x Port Access tab.
The 802.1x Port Access tab is shown in Figure 152 on page 383.
4. In the switch image, click a port and click Settings. You can display
the settings of more than one port at a time.
Note
To view the settings of multiple ports, the selected ports must have
the same port role (authenticator or supplicant).

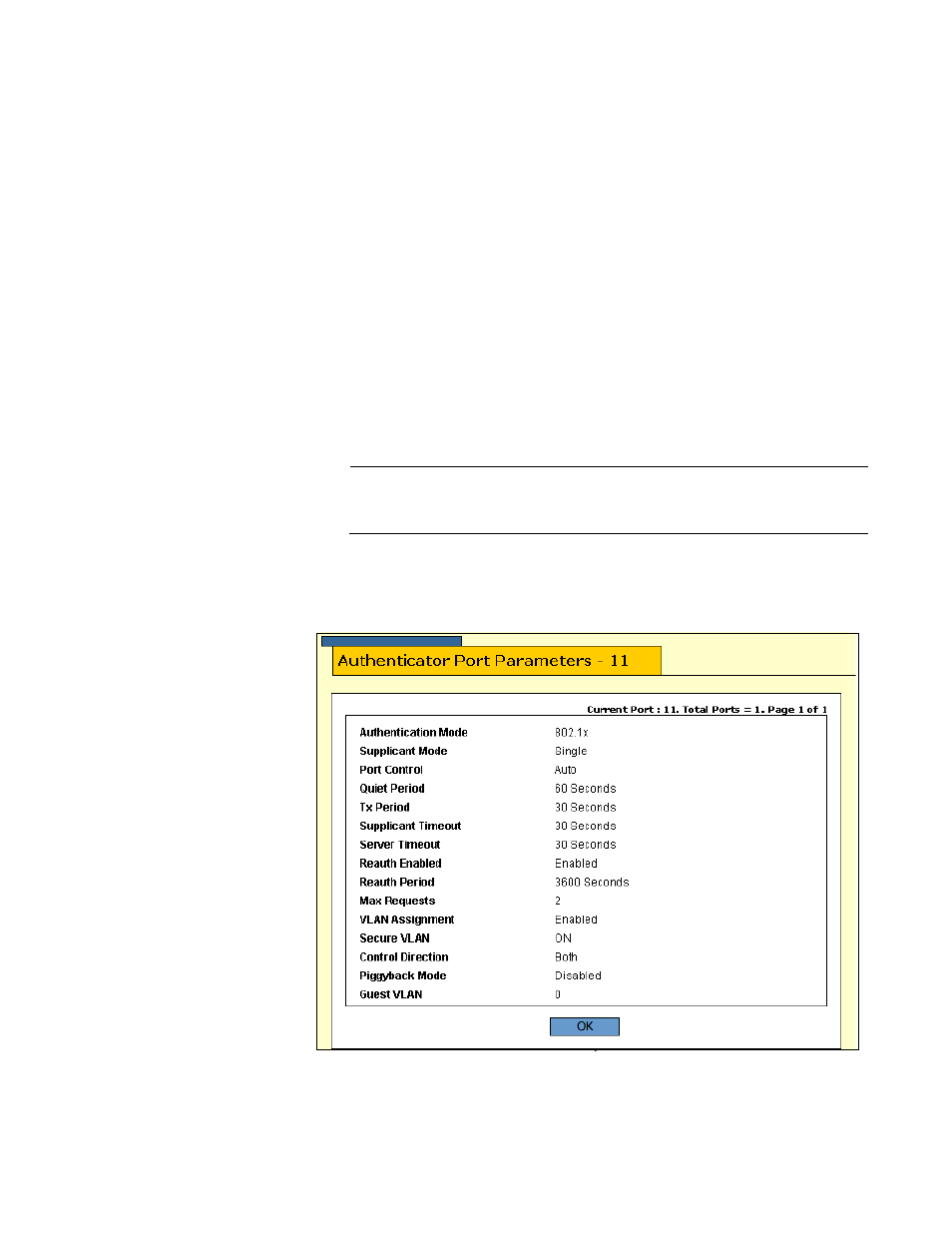

The Authenticator Port Parameters page is displayed for authenticator
ports, as shown in Figure 154.
Figure 154. Authenticator Port Parameters Page
