Allied Telesis AT-S63 - Manual (Page 353)

AT-S63 Management Software Web Browser Interface User’s Guide
Section V: Virtual LANs 353
Displaying the GVRP Configuration
To display the GVRP configuration, perform the following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select the Layer 2 option.
3. Select the GVRP tab.
The GVRP tab is shown in Figure 138.

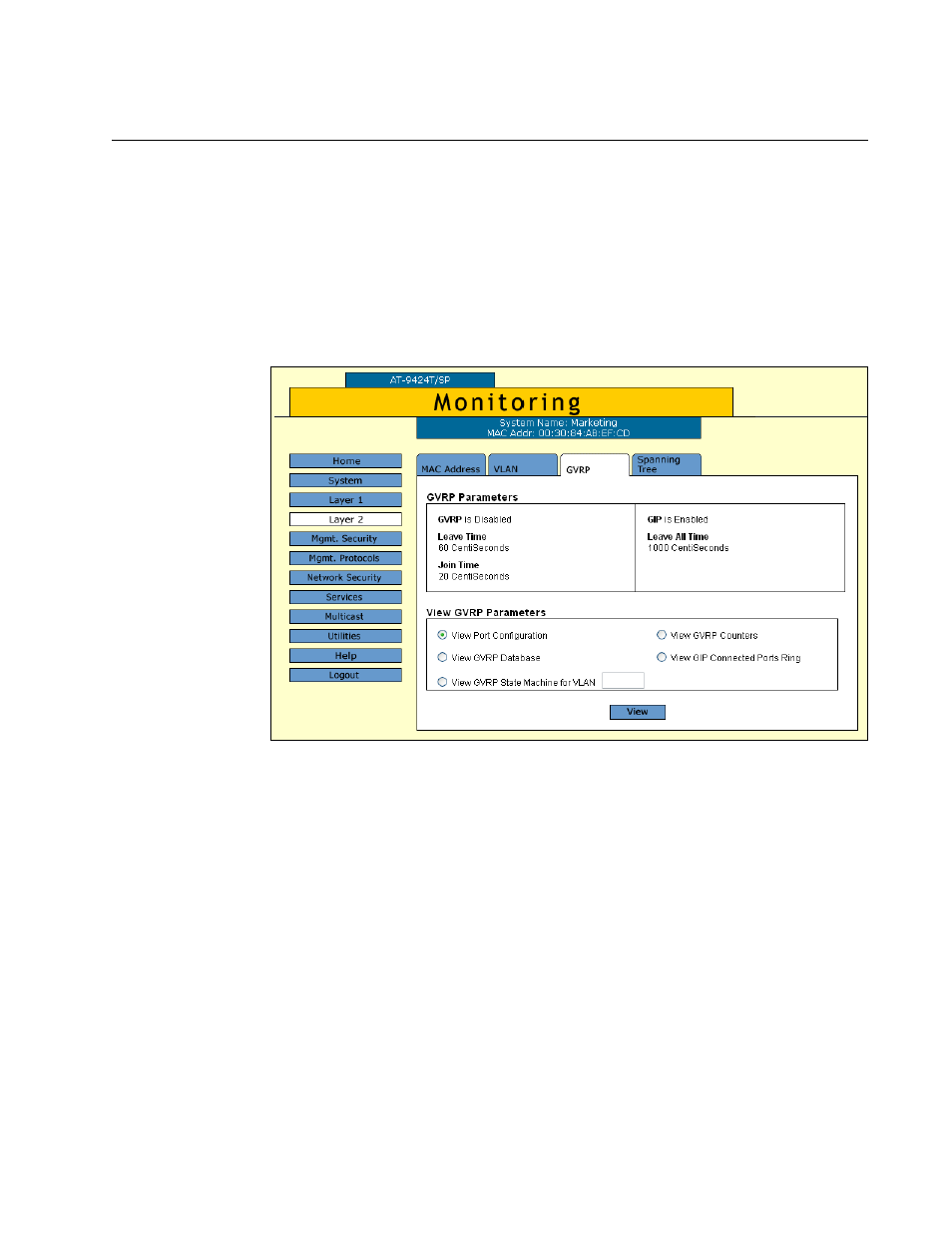

Figure 138. GVRP Tab (Monitoring)
The GVRP Parameters section provides the following information:
GVRP
The GVRP status, Enabled or Disabled.
Leave Time
The range is 30 to 80 centiseconds and the default is 60 centiseconds.
Join Time
The range is 10 to 60 centiseconds and the default is 20 centiseconds.
GIP
The GIP status, Enabled or Disabled.
Leave All Time
The range is 500 to 300 centiseconds and the default is 1000
centiseconds.
