AT-S63 Management Software Web Browser Interface User’s Guide
Section VI: Port Security 383
Displaying the Port-based Network Access Control Parameters
You can display information about the port-based network access control
status and settings of the ports on the switch. This section contains the
following procedures:
ˆ ”Displaying the Port Status” (next)
ˆ “Displaying the Port Settings” on page 385
Displaying the
Port Status
To display the port-based network access control port status, perform the
following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select Network Security.
3. Select the 802.1x Port Access tab. The 802.1x Port Access tab is
shown in Figure 152.

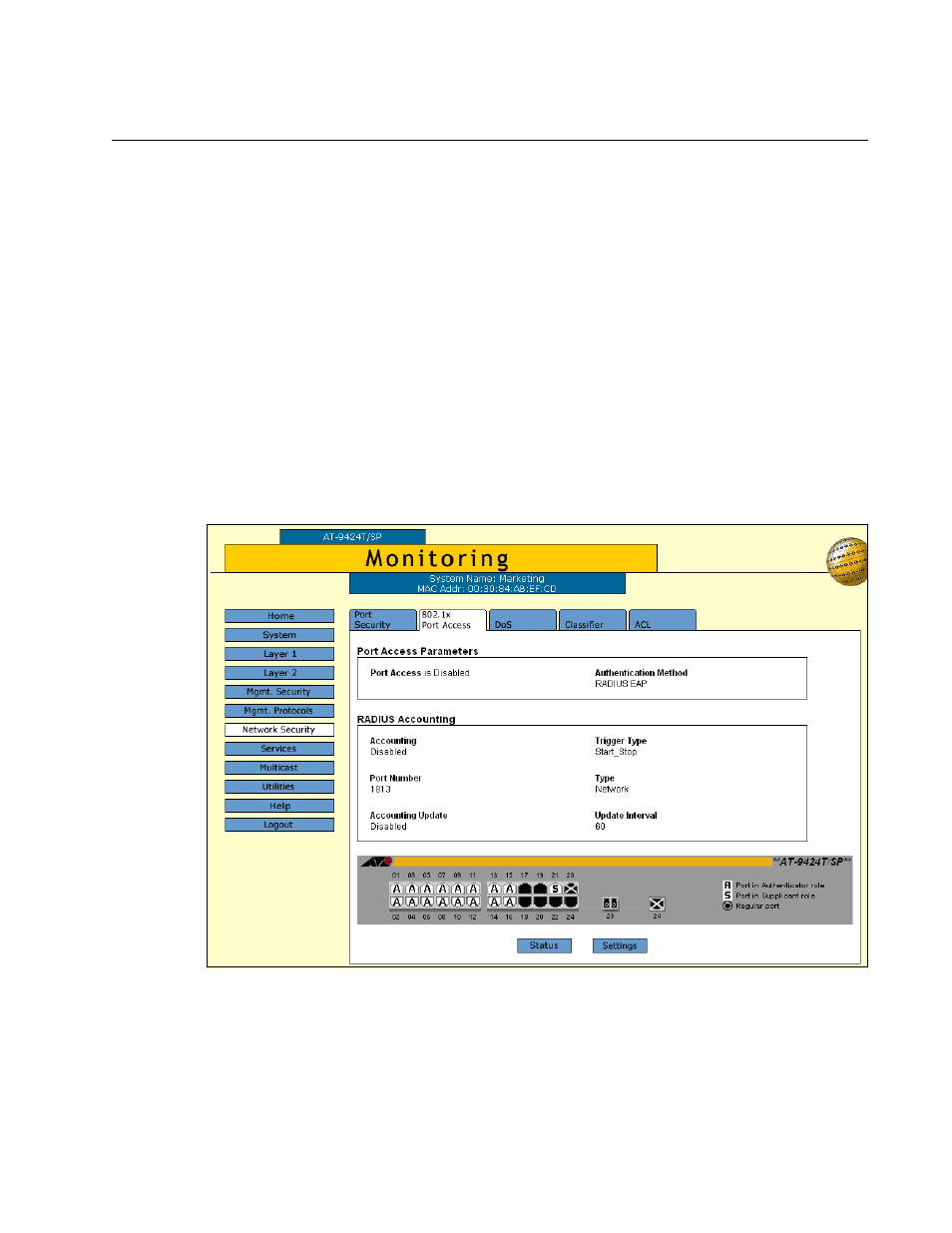

Figure 152. 802.1x Port Access Tab (Monitoring)
The image of the switch displays the roles of the ports. An “A” indicates
an authenticator port and an “S” a supplicant port. A black port has not
been assigned a port role and is not participating in port-based access
control. This is the default setting for a port.
