AlliedView™-EMS 3.10 Device Management Guide Page 295 of 367
Note - The value of the Port Mode parameter of a port with an established link
automatically changes to 'auto' when the settings of the port to which it is
connected are modified.
Note - To configure the Port Speed and Port Duplex Status parameters of the
10/100Base-TX port correctly, the Port Mode parameter must first be set to
'manual'.
Note - The value of the Port Speed parameter of a port with an established link
automatically changes to '10Mbps' when the value of its Port Mode parameter is
changed from 'auto' to 'manual'.
Note - AT-CV1200: The current firmware version does not allow the Port Speed
and Port Duplex Status parameters of the 10/100Base-TX port to be configured.
Note - AT-CV1200: Changes made to the Port Speed and Port Duplex parameters
of the 10/100Base-TX port are immediately reflected in the CLI but not in SNMP.
Changes will be reflected in SNMP only after they have been viewed from the CLI.

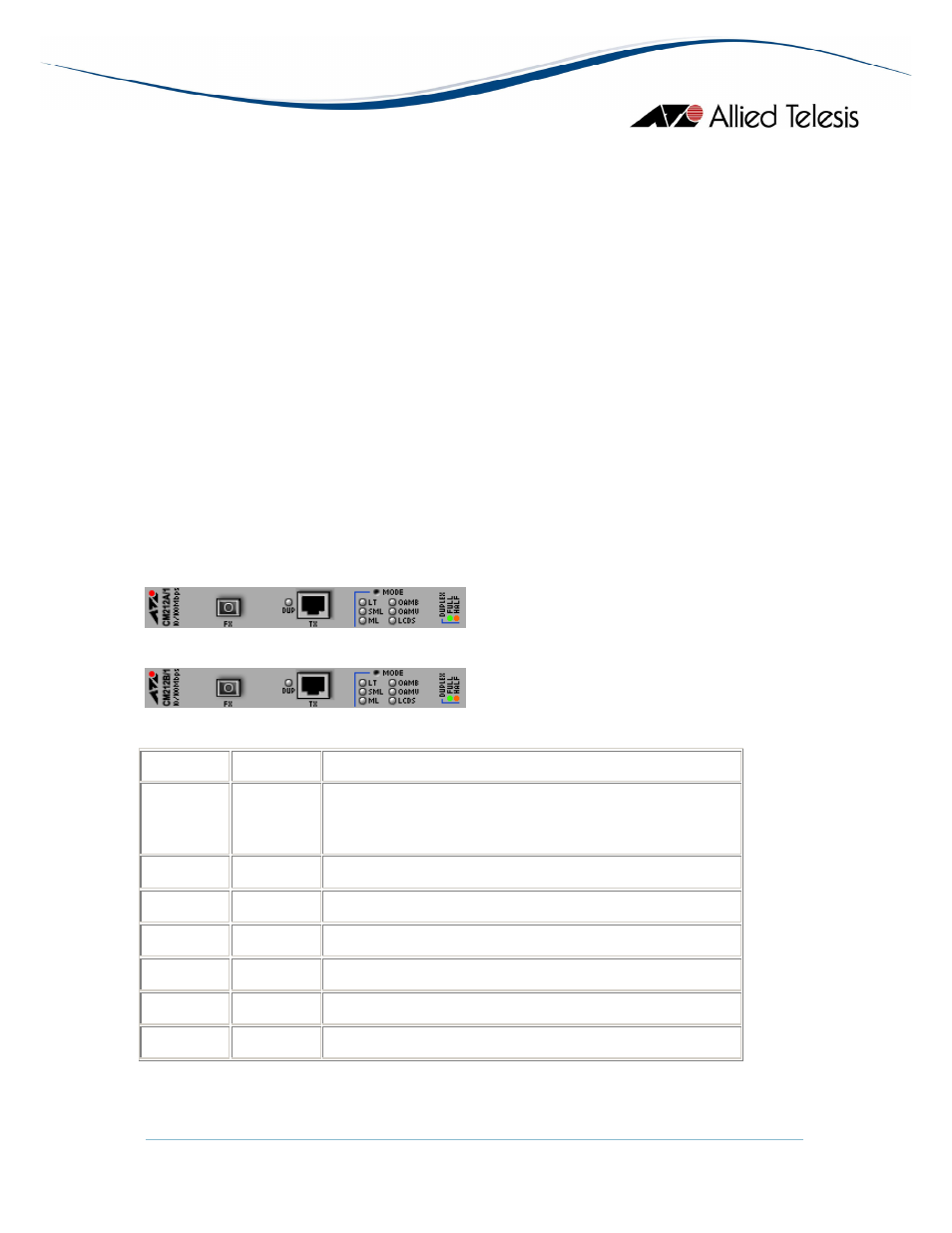

AT-CM212x/1
AT-CM212A/1: 10/100TX to 100FX (SC, 15km, SM)
AT-CM212B/1: 10/100TX to 100FX (SC, 15km, SM)
LED State Description
DUP
Green
Orange
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.
LT Green Link Test is enabled
SML Green Smart Missing Link is enabled
ML Green Missing Link is enabled
OAMB Green OAM Bypass is enabled
OAMV Green OAM Visible is enabled
LCDS Green Line Card Dip Switch is enabled
