Displaying the Port Parameters and Port Status
To display the parameters or the status of authenticator and supplicant
ports:
1. From the Home page, select the Monitoring button.
2. From the Configuration menu, click the Network Security button to
display the 802.1x Port Access tab shown in Figure 89.

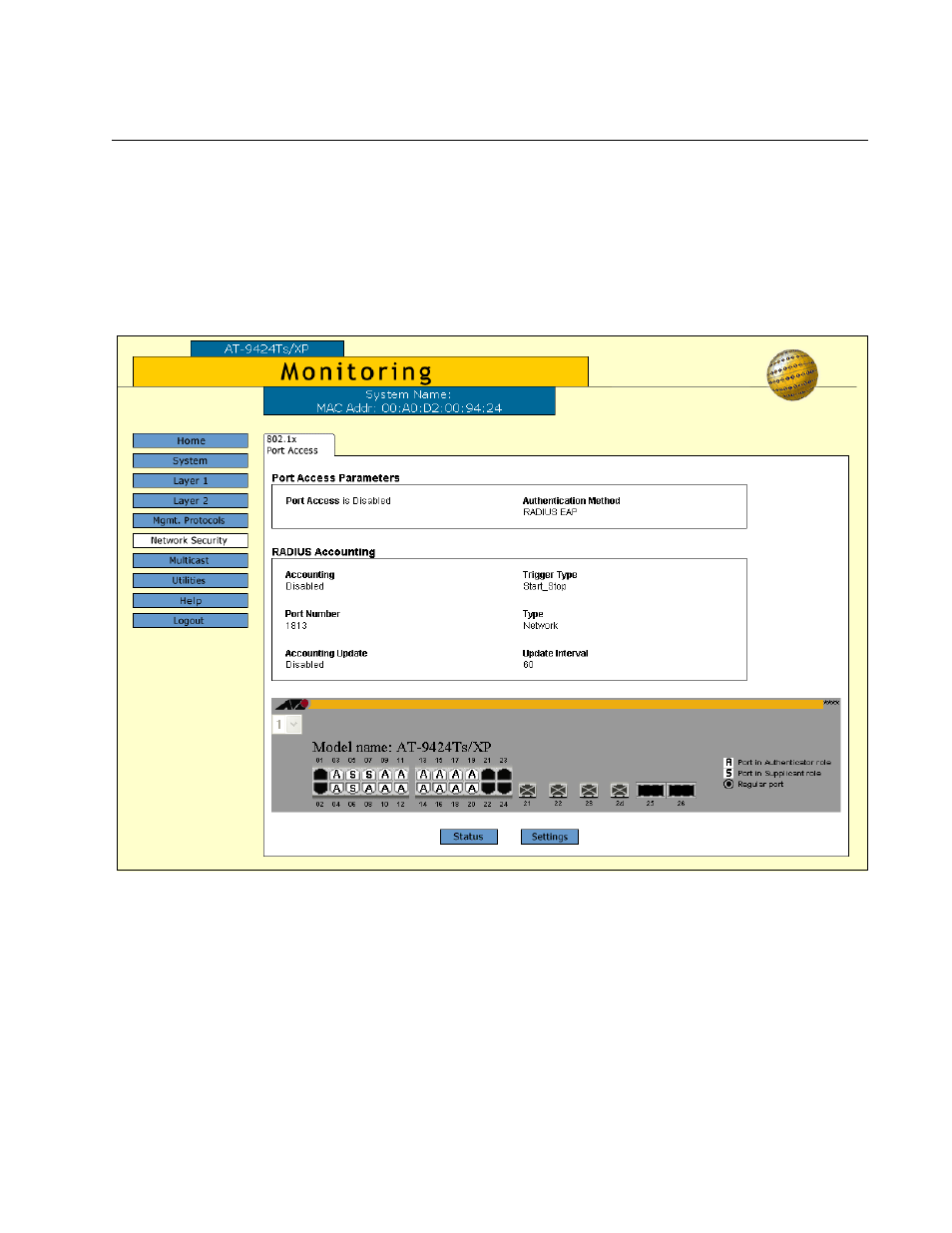

Figure 89. 802.1x Port Access Tab (Monitoring)
The port roles are display in the switch image. Ports with an “A” are
authenticator ports and those with an “S” are supplicant ports. Ports
that are black have not been assigned a port role and do not
participate in port-based access control. This is the default setting for a
port.
3. In the switch image, use the Stack ID pull-down menu to choose the
switch that has the ports you want to view. If the switch is already
displayed, skip this step.
