Chapter 12: Spanning Tree and Rapid Spanning Tree Protocols
202 Section IV: Spanning Tree Protocols
Displaying RSTP
Settings
To display the RSTP parameter settings:
1. From the Home page, click the Monitoring button.
2. From the Monitoring menu, click the Layer 2 button.
3. Select the Spanning Tree tab, shown in Figure 73 on page 192.
4. Click the View button to display the Monitor RSTP Parameters tab in
Figure 78.

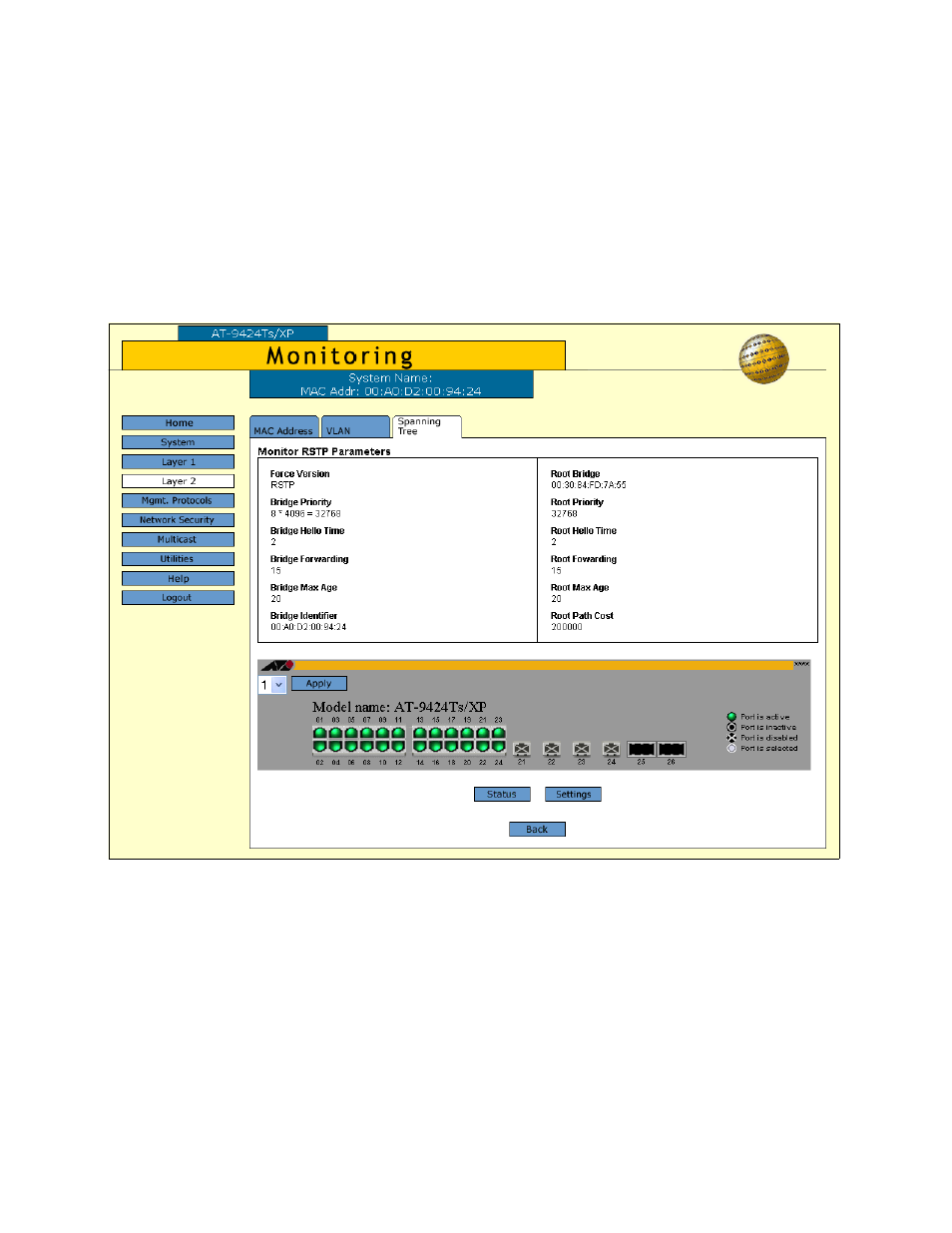

Figure 78. Monitor RSTP Parameters Tab
5. Use the Stack ID pull-down menu in the switch image to select the ID
number of the switch that you want to view and click the Apply button.
You can view only one switch at a time.
6. In the switch image click the port you want to view. A selected port
turns white. To deselect a port, click it again. You can view more than
one port at a time.
7. Click the Status or Settings button. An example of the RSTP Status
window is shown in Figure 80.
