4. To add a new VLAN to the stack, click the Add button to display the

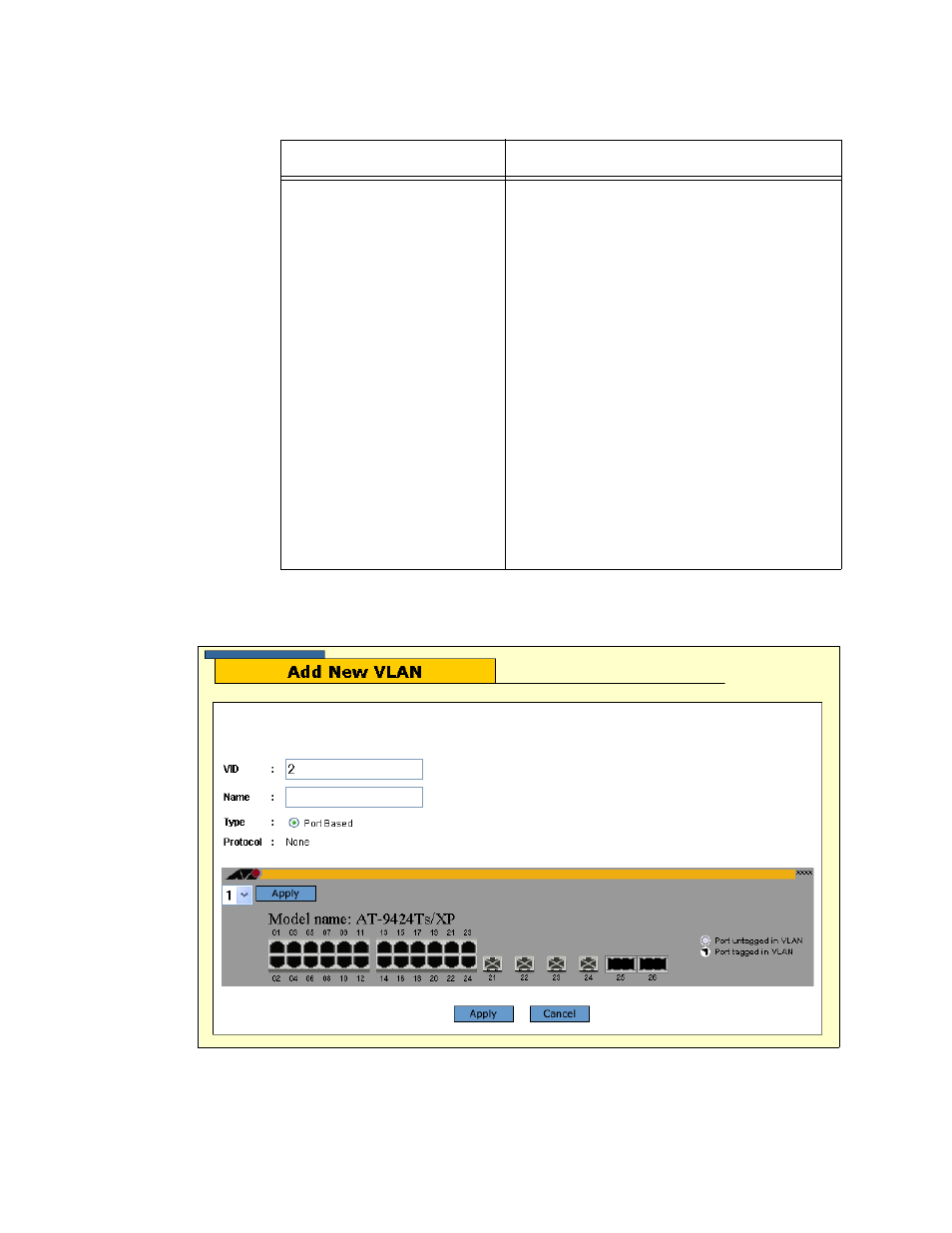

Add New VLAN page shown in Figure 82.
Figure 82. Add New VLAN Page
Member Ports (Continued) If you are using 802.1x and assigned a
Guest VLAN to an authenticator port or
associated a VLAN to an 802.1x
supplicant on the authentication server,
an untagged port can be in different VLAN
than the virtual LAN where it was
originally assigned. In these situations,
the Configured and Actual port lists can
be different, with the Actual list detailing
the ports that are currently functioning as
untagged ports of the VLAN.
For example, if a port is listed as a
Configured member of a VLAN, but not as
an Actual member, that would mean either
the port is currently a part of a Guest
VLAN or the supplicant who logged on the
port was associated with a VLAN
assignment on the authentication server.
Table 38. VLAN Tab
Column Definition
