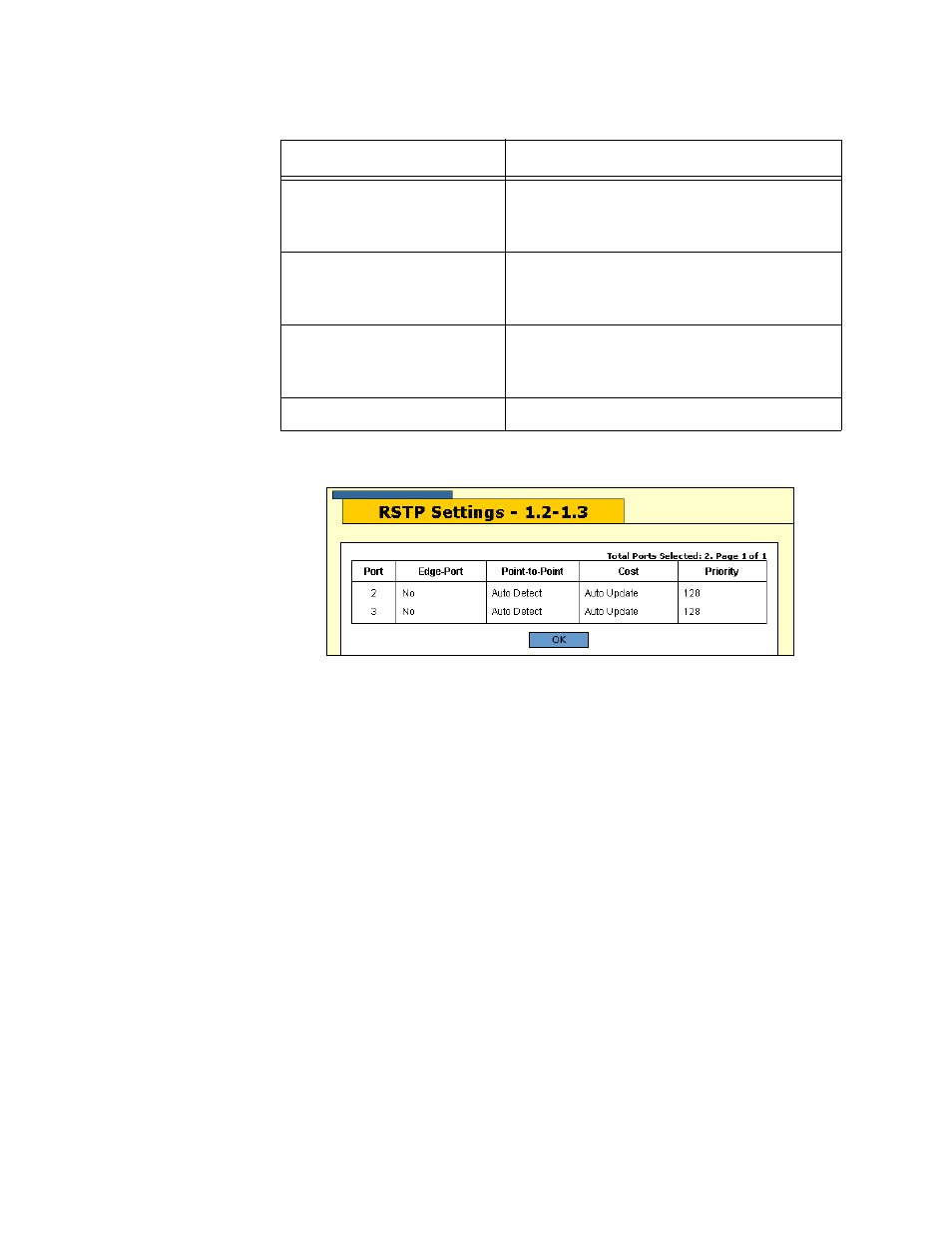

An example of the RSTP Settings page is shown in Figure 80.
Figure 80. RSTP Settings Window
For the descriptions of the parameters, refer to Table 36 on page 200.
8. Click the OK button to close the window.
Restoring the
RSTP Default
Settings
To restore the default values to the RSTP parameters in the stack:
1. From the Home page, click the Configuration button.
2. From the Configuration menu, click the Layer 2 button.
3. Select the Spanning Tree tab, shown in Figure 70 on page 184.
4. Verify that there is no check in the Enable Spanning Tree check box.
If there is a check, click the option to remove it. You have to disable
RSTP to restore the default settings.
5. Click the Configure button to display the Configure RSTP Bridge
Parameters tab shown in Figure 76 on page 197.
6. Click the Defaults button to restore the default settings to the RSTP
parameters.
Edge-Port Displays whether or not the port is
operating as an edge port. The possible
settings are Yes and No.
P2P Displays whether or not the port is
functioning as a point-to-point port. The
possible settings are Yes and No.
Version Displays whether the port is operating in
the RSTP mode or the STP-compatible
mode.
Port Cost Displays the port cost of the port.
Table 37. RSTP Port Status Window
Column Definition
