AT-S63 Management Software Web Browser User’s Guide
Section IV: Spanning Tree Protocols 193
4. Click View button to display the Monitor STP Parameters tab in
Figure 74.

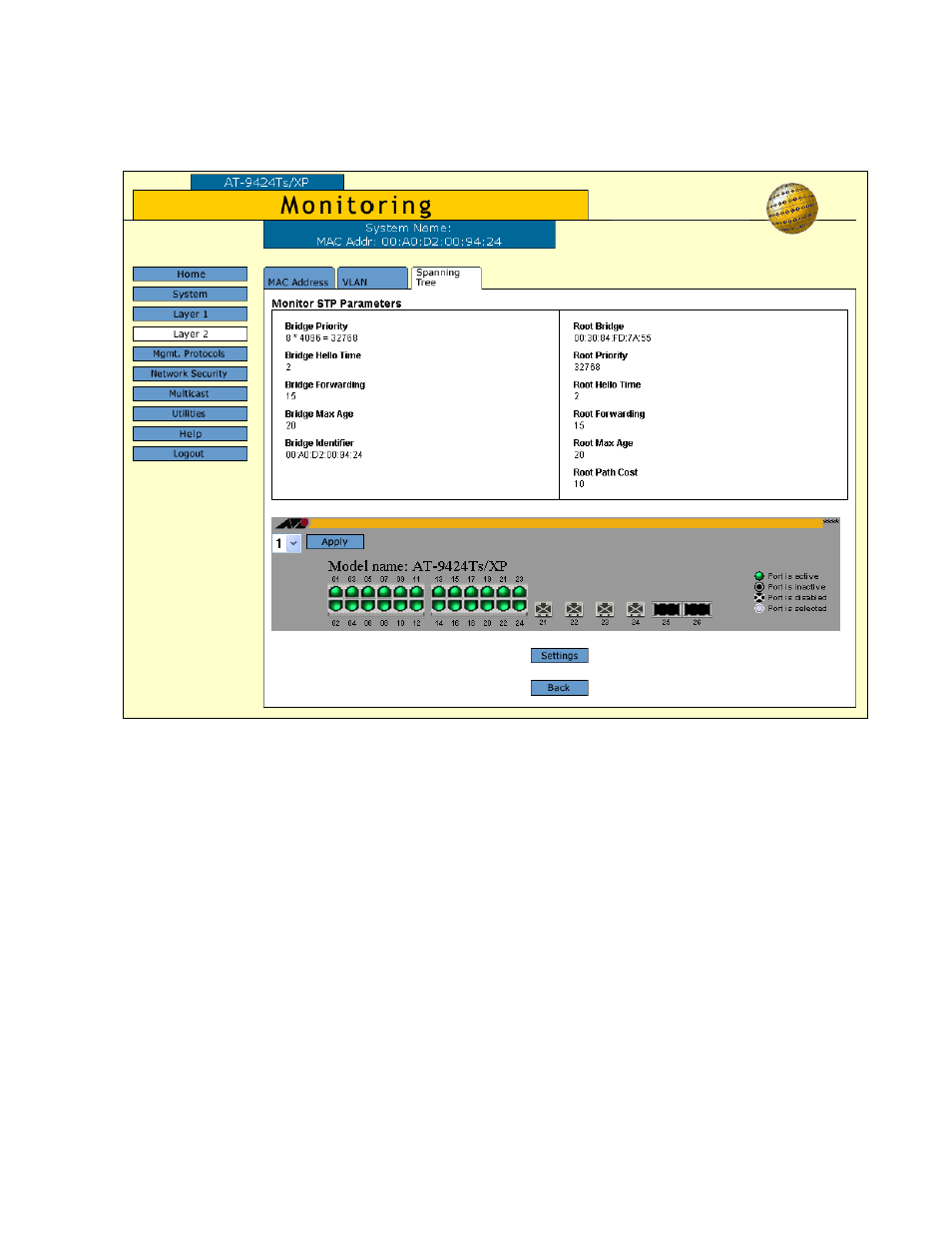

Figure 74. STP Parameters Tab (Monitoring)
5. To view the port settings, use the Stack ID pull-down menu in the
switch image to select the ID number of switch you want to view and
click the Apply button. You can view only one switch at a time.
6. In the switch image click the port you want to view. A selected port
turns white. To deselect a port, click it again. You can view more than
one port at a time.
7. Click the Settings button. The STP Settings window is shown in
Figure 75.
