6. After you have changed the parameters, click the Apply button.
7. To save your changes in the master configuration file, click the Save
Config button in the Configuration menu.
Configuring the
STP Port Settings
To configure STP port parameters:
1. Perform steps 1 to 4 in “Configuring the STP Bridge Settings” on
page 186 to display the Spanning Tree tab.
2. Use the Stack ID pull-down menu in the switch image to select the ID
number of switch you want to configure and click the Apply button.
You can configure only one switch at a time.
3. In the switch image click the port you want to configure. A selected
port turns white. To deselect a port, click it again. You can configure
more than one port at a time.
4. Click the Modify button to display the STP Settings popup window,
shown in Figure 72.

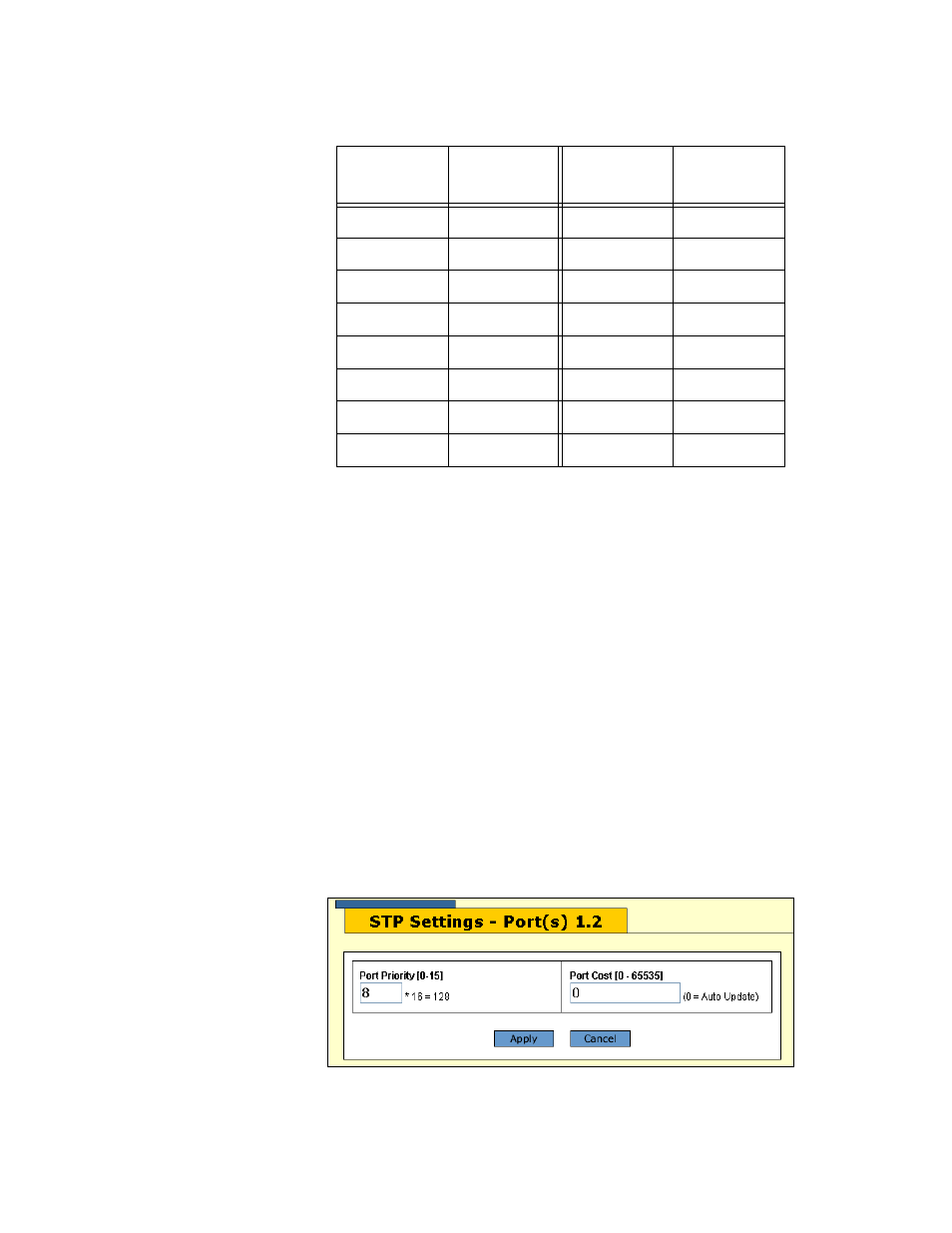

Figure 72. STP Settings Window
Table 31. Bridge Priority Value Increments
Increment
Bridge
Priority
Increment
Bridge
Priority
0 0 8 32768
1 4096 9 36864
2 8192 10 40960
3 12288 11 45056
4 16384 12 49152
5 20480 13 53248
6 24576 14 57344
7 28672 15 61440
